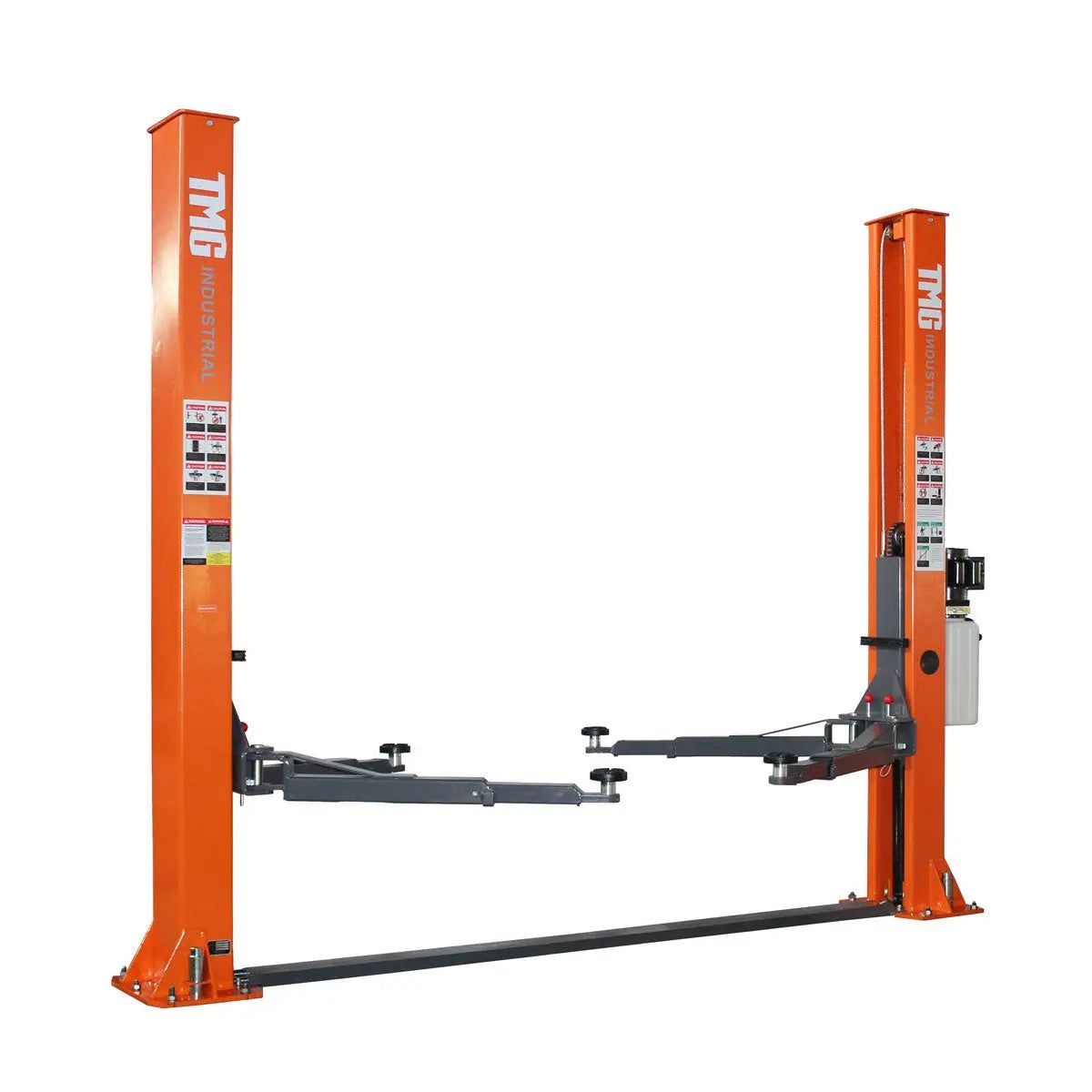

10,000-lb Two Post Floor Plate Auto Lift, Symmetric Arms, 77" Lift Height, Dual-Point Lock Release, TMG-TPL45

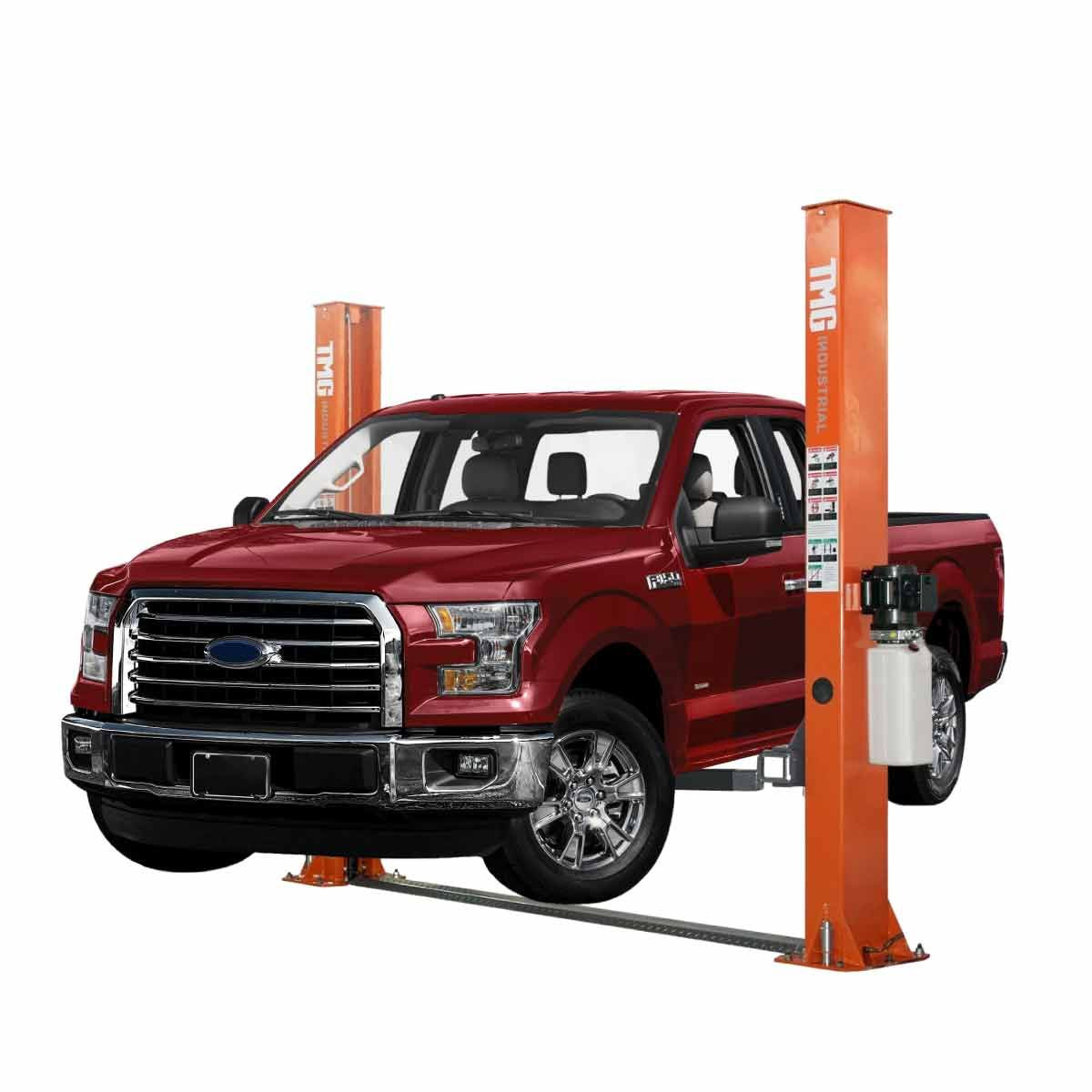

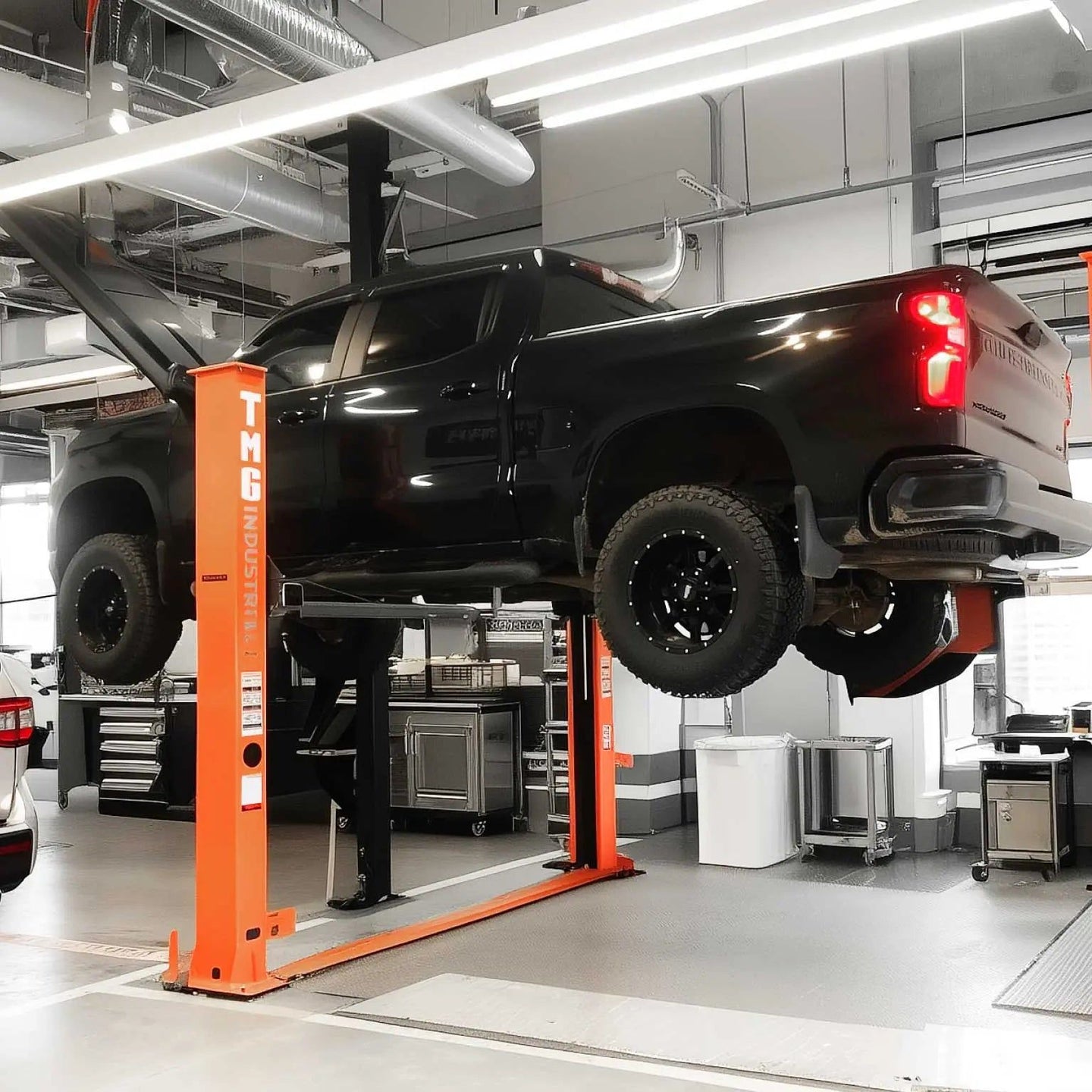

The TMG-TPL45 Two-Post Auto Lift is an excellent choice for personal garages, small shops or general automotive service departments. With a 10,000 lb lifting capacity and 77" lift height you can easily lift most cars, trucks and SUVs for mechanical work of any kind. A floor plate design keeps all hydraulic, steel cable and electrical lines protected while opening up the overhead for maximum vehicle clearance.

Symmetric telescopic reach arms on each side provide versatile support positions to accommodate all the unique makes and models you may be working on. Self-lubricated carriage sliders along the columns and automatic arm restraints reduce wear on the lift and will give you long lasting performance with lower operating costs and maintenance expenses.

Dual hydraulic chain-drive cylinders power ⅜" industrially strengthened steel cables that are fed through the columns and floor plate to give you the force needed for smooth, efficient lift operation. This lift features a heavy-duty structural bottom with reinforced base to increase stability and safety for a reliable automotive work solution that is solid and built to last.

• Lift capacity: 10,000 lb
• Overall height: 110”

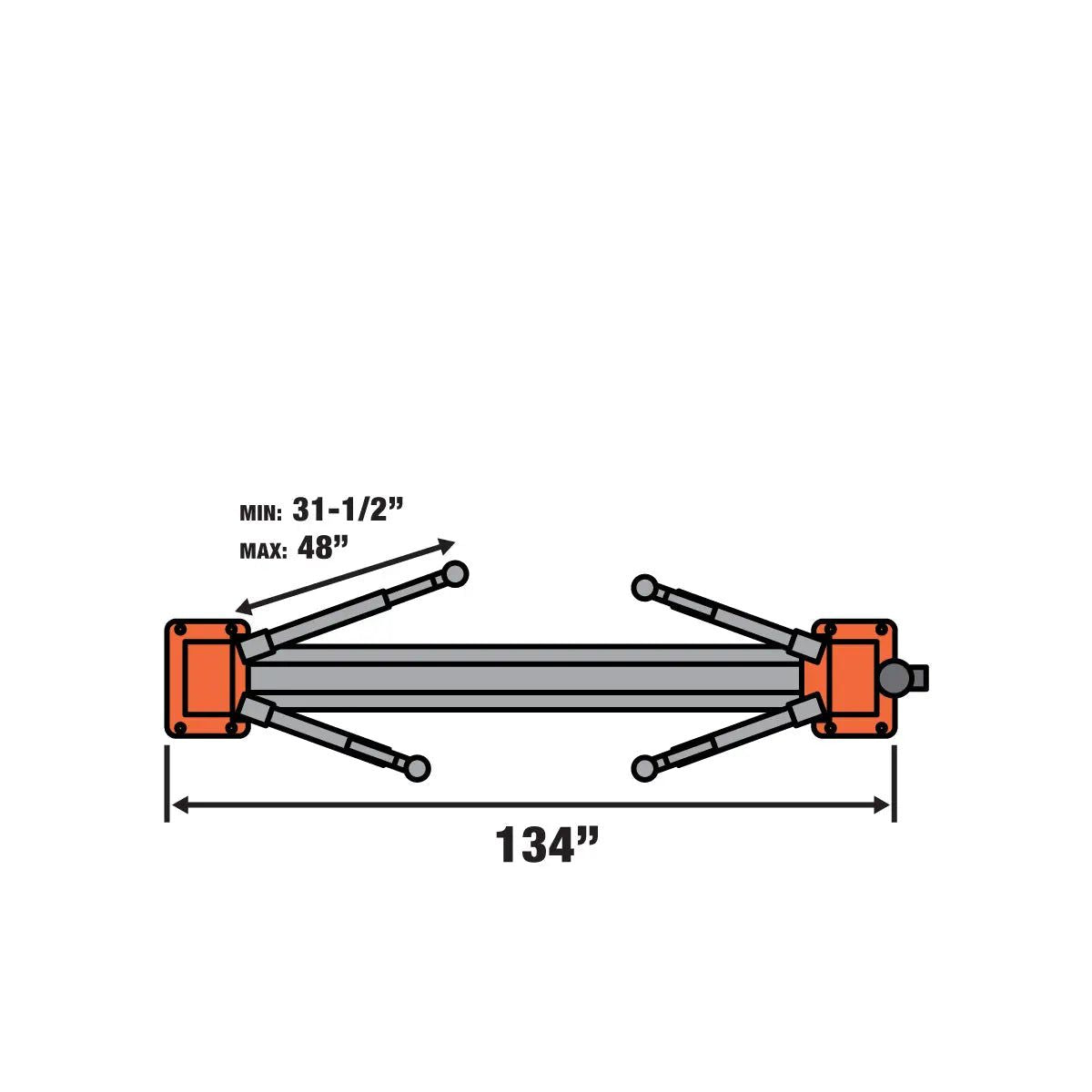

• Overall width: 134”
• Outside column width: 124”
• Inside column width: 110”
• Crossing floor plate height: 1-¼”
• Column size: 10-1/2” x 7”
• Column base: 20” x 15”
• Column steel: 6 GA
• Carriage steel: 4 GA
• Cable diameter: ⅜”

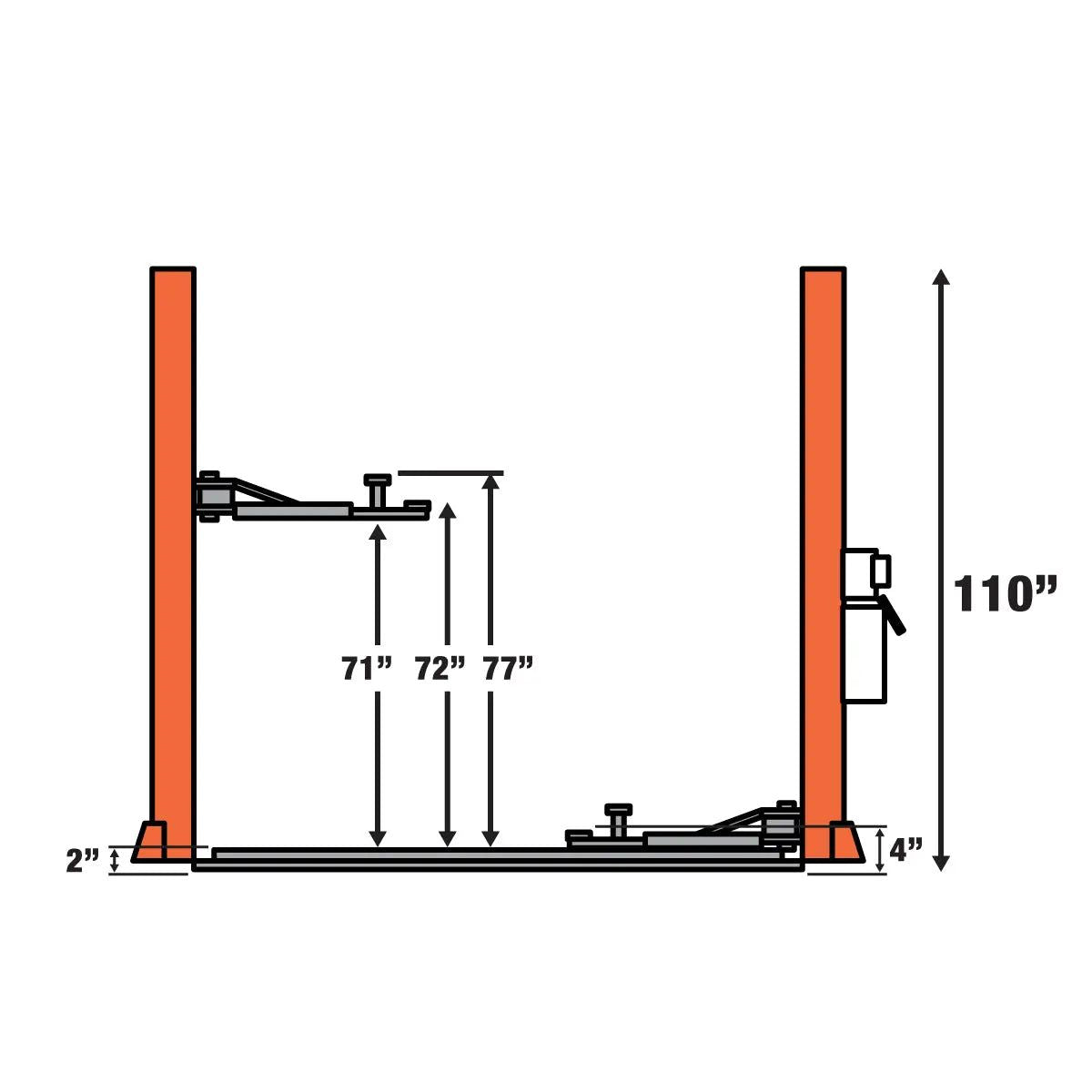

• Lift height (pad only): 72”

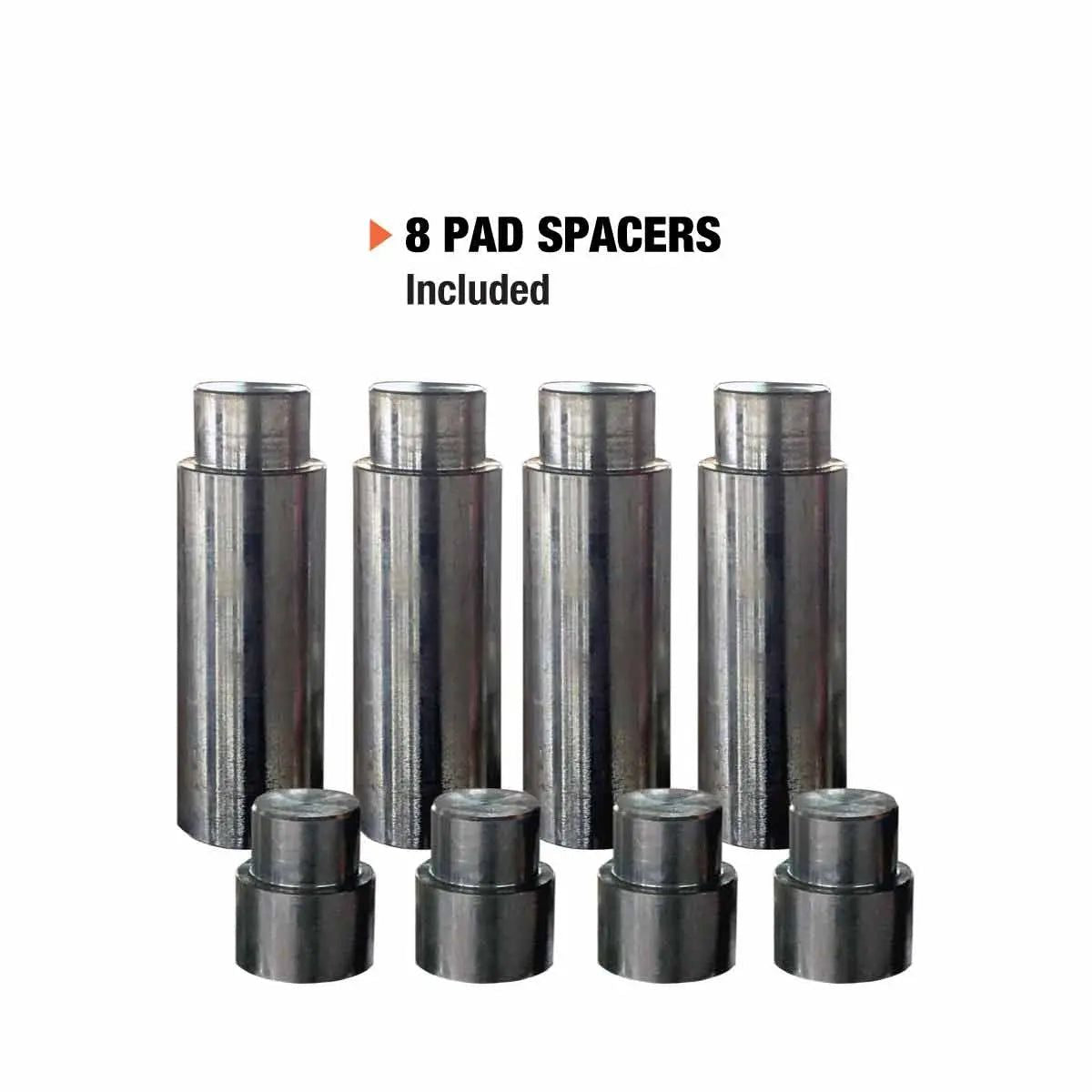

• Lift height (with 5” adapter): 77”
• Lift height clearance: 71"
• Minimum height from the ground: 4-½”
• Drive through clearance: 100”

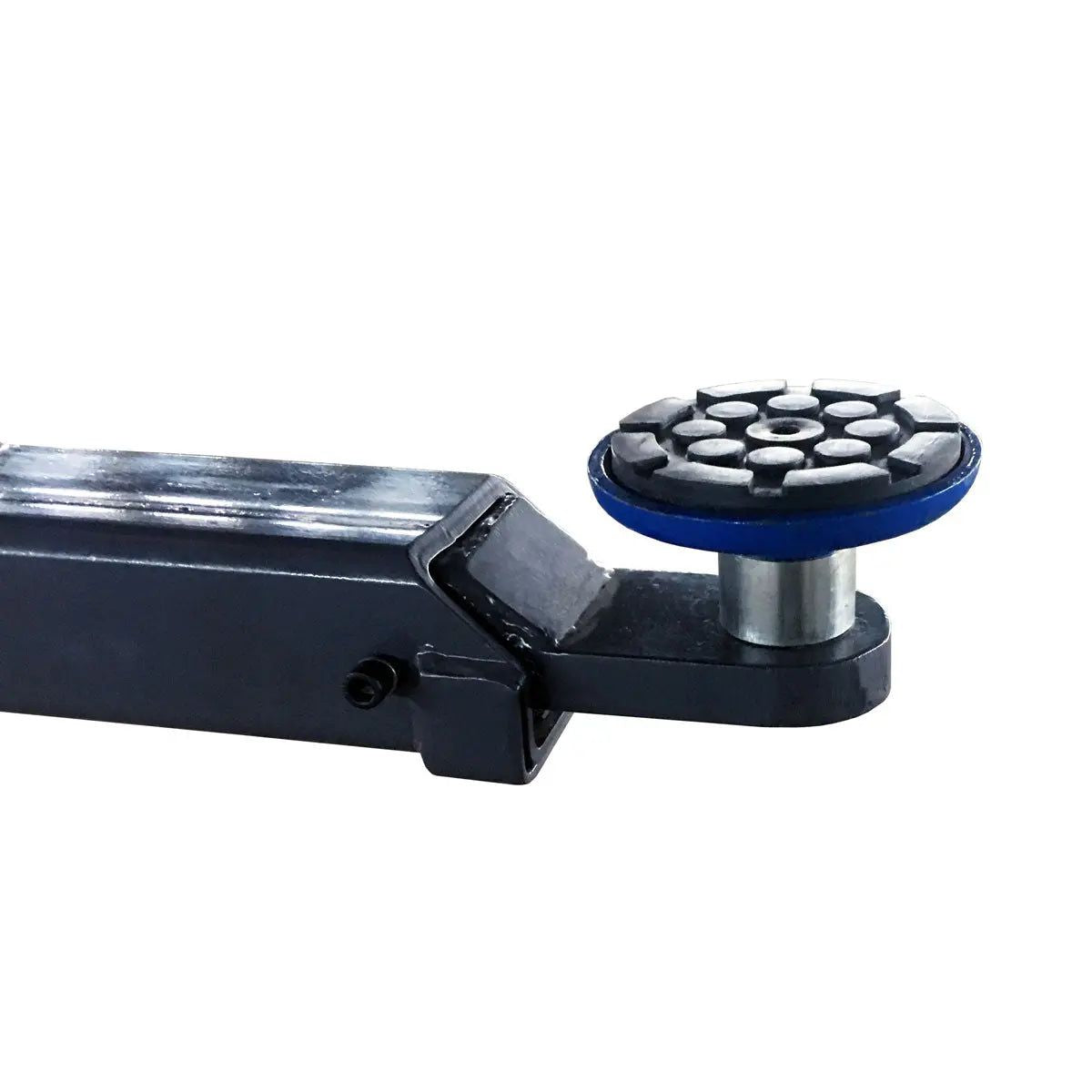

• Retractable front arm: 31-1/2” - 48”
• Retractable rear arm: 31-1/2" to 48"
• Travel speed:
  • Rise up at 90% load: 45 to 50 sec.
  • Lower down: 30 to 35 sec.
• Max. load capacity per arm: 2,500 lb
• Installation concrete slab required (minimum): 4-½” with 3000 PSI cured

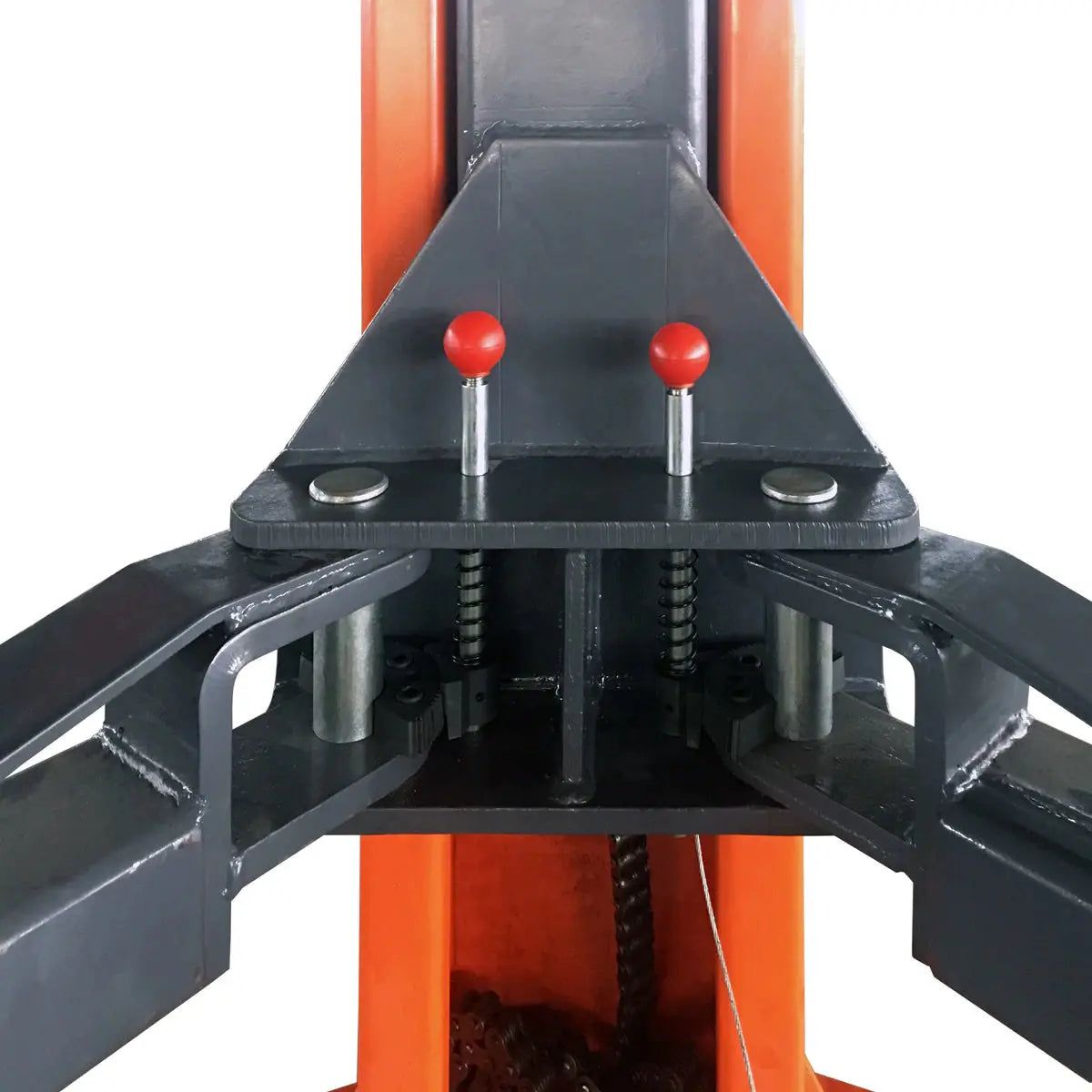

• Automatic arm restraints
• Dual point lock release
• Mounting hardware included
• Requires 25A breaker

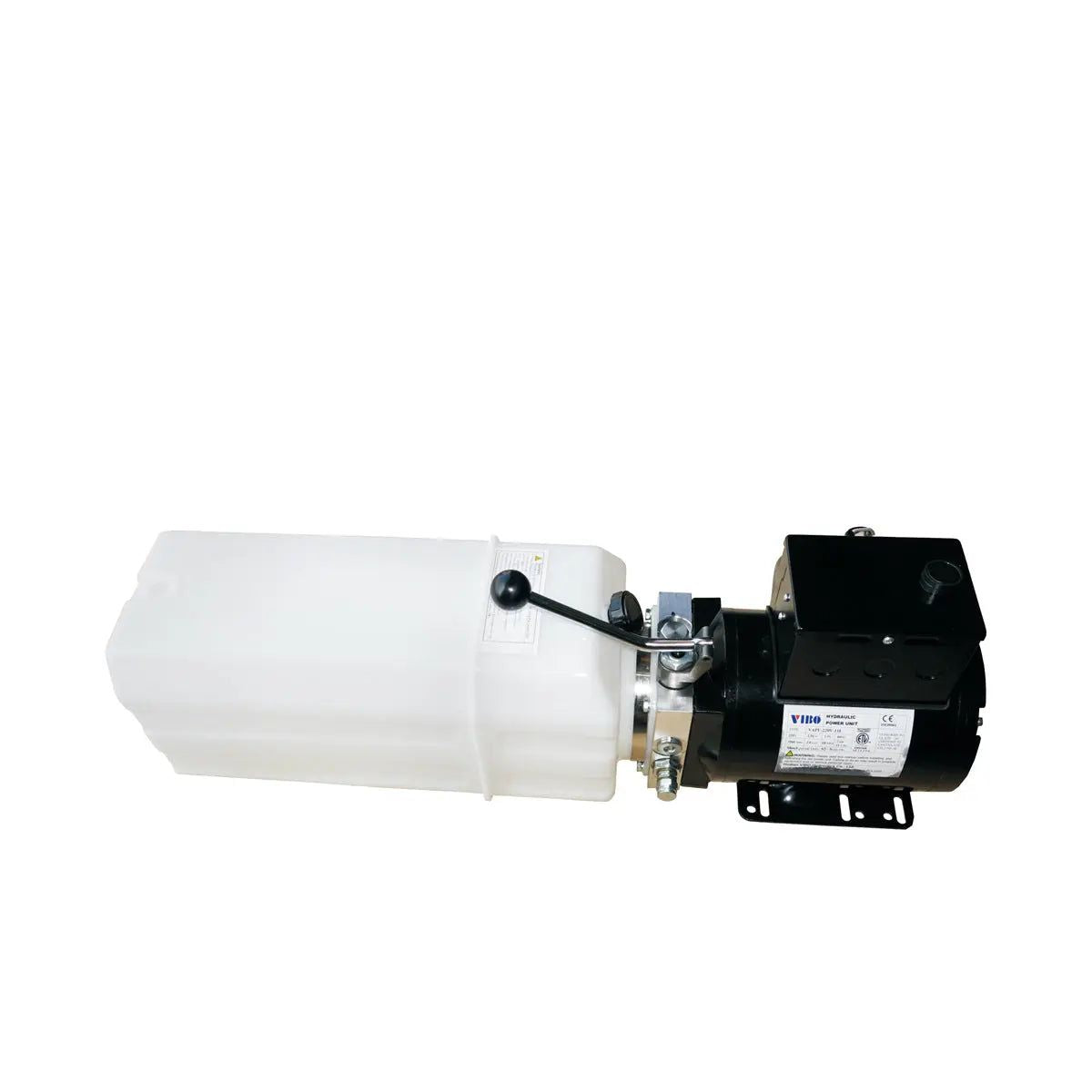

Hydraulic Motor Pump Power Unit:

• 220 VAC, 3 HP, single phase
• No-load speed: 3360 RPM
• Working pressure: 2600 PSI
• Tank capacity: 2.5 US gal
• Pump oil required: AW32/AW46
• CETL certified

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• This product is packed in two crate shipping boxes
• Box A: 110” x 22” x 30” (L x W x H)
• Box B: 32” x 10” x 14” (L x W x H) (ALP03)
• Shipping weight: 1,235 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
