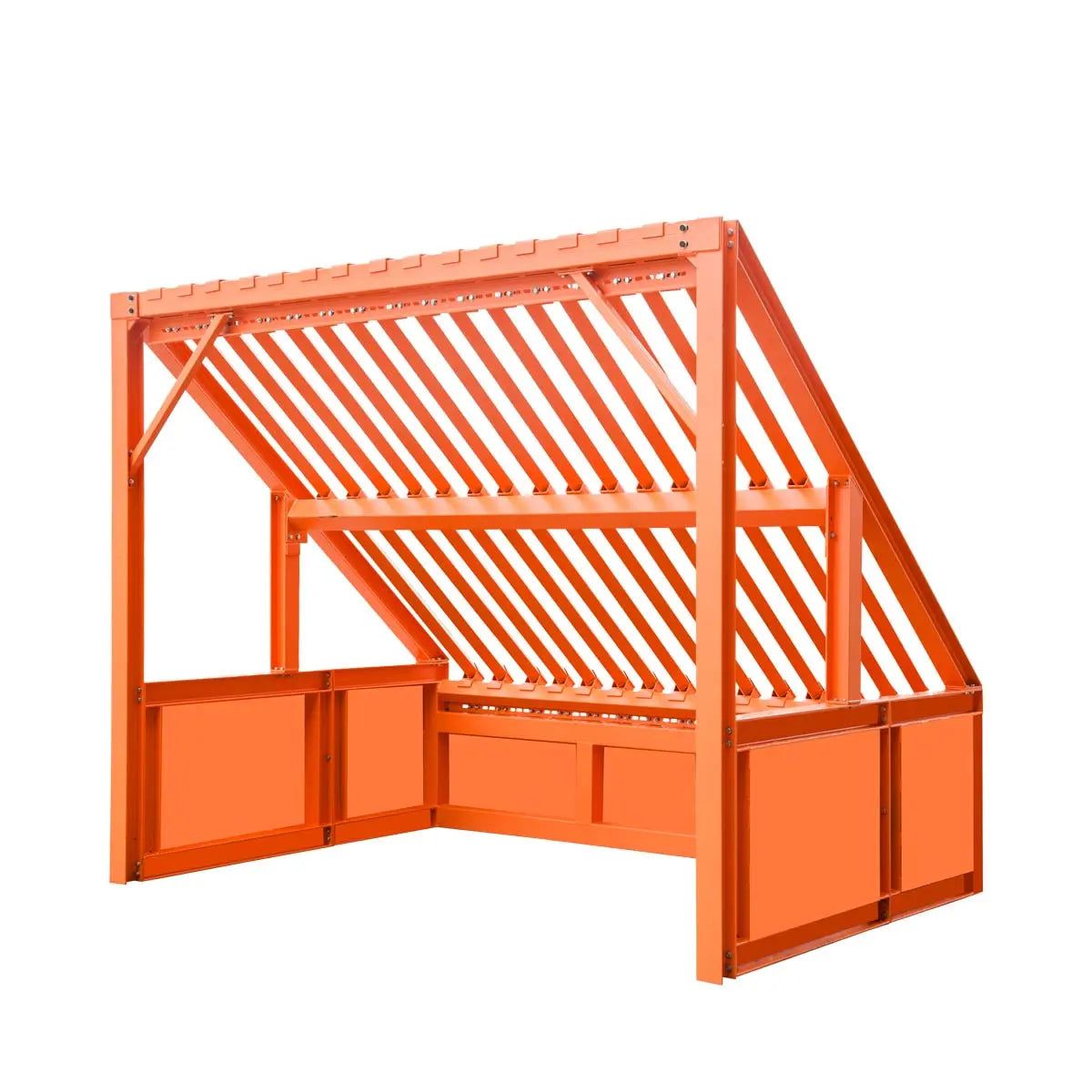

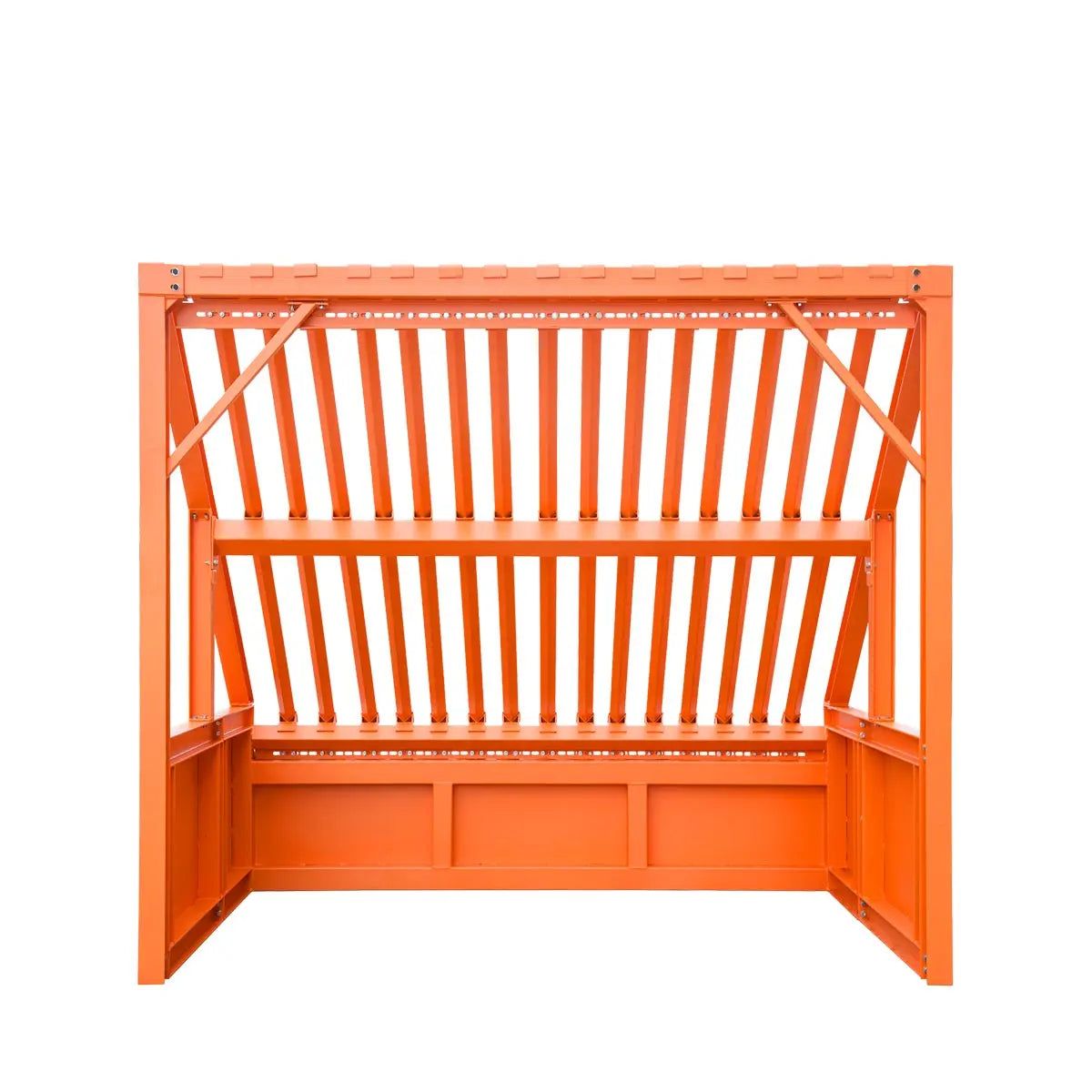

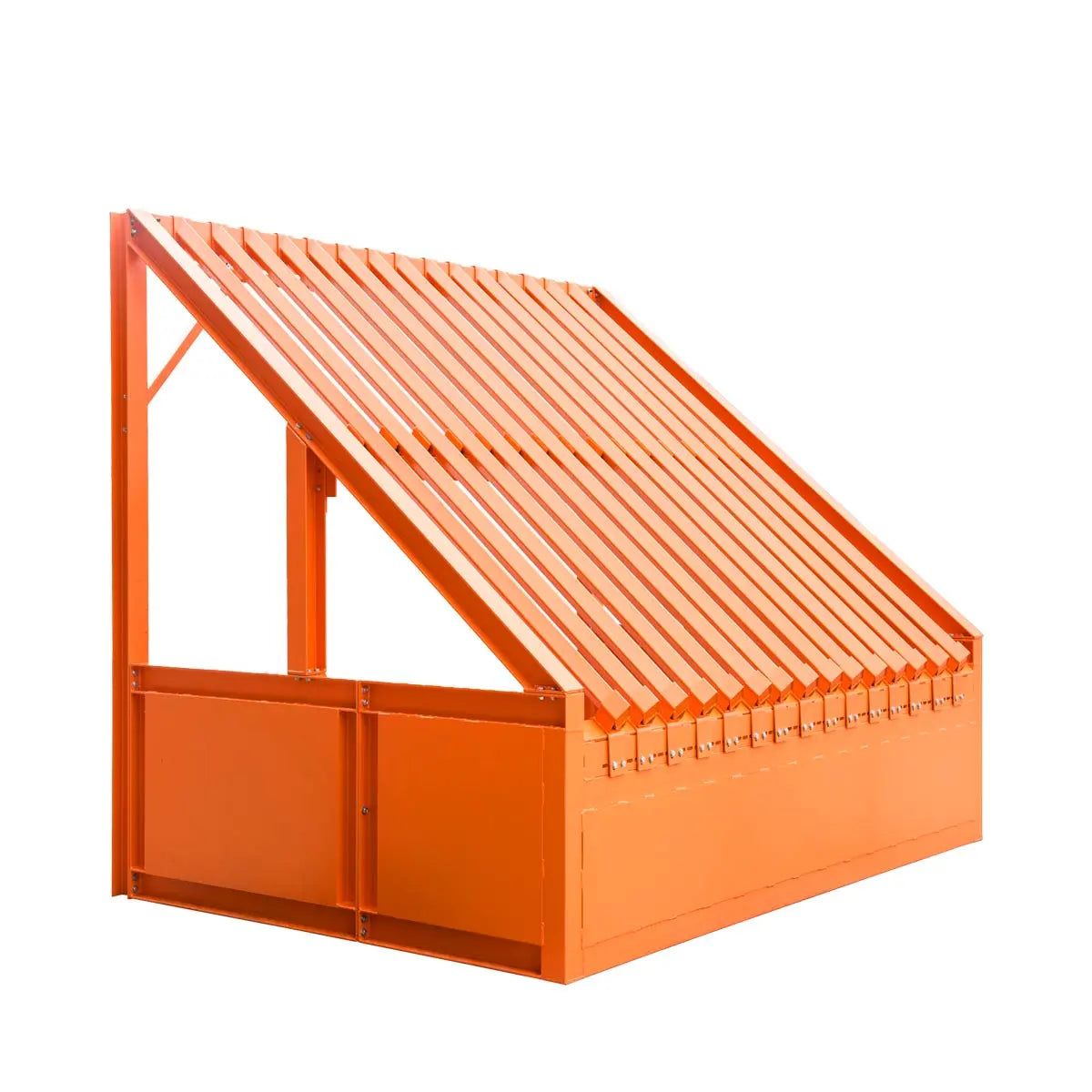

10' Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4" x 4" I-Beams, 5000 lb Load Capacity, TMG-RS10

Details

The TMG-RS10 Heavy-Duty Static Grizzly Rock Screen makes the screening of bulky, mixed loads simple and efficient. Sort materials with ease by always having this screen available at your work yard or job site. Used extensively in a number of industries including open-pit mining, recycling, crushing, aggregates, site development, demolition and landscaping. This screener is built tough, made to last and will handle anything you can throw at it.

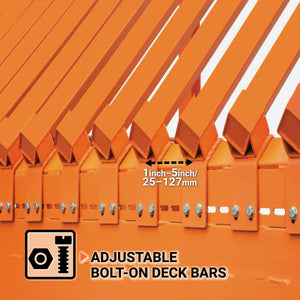

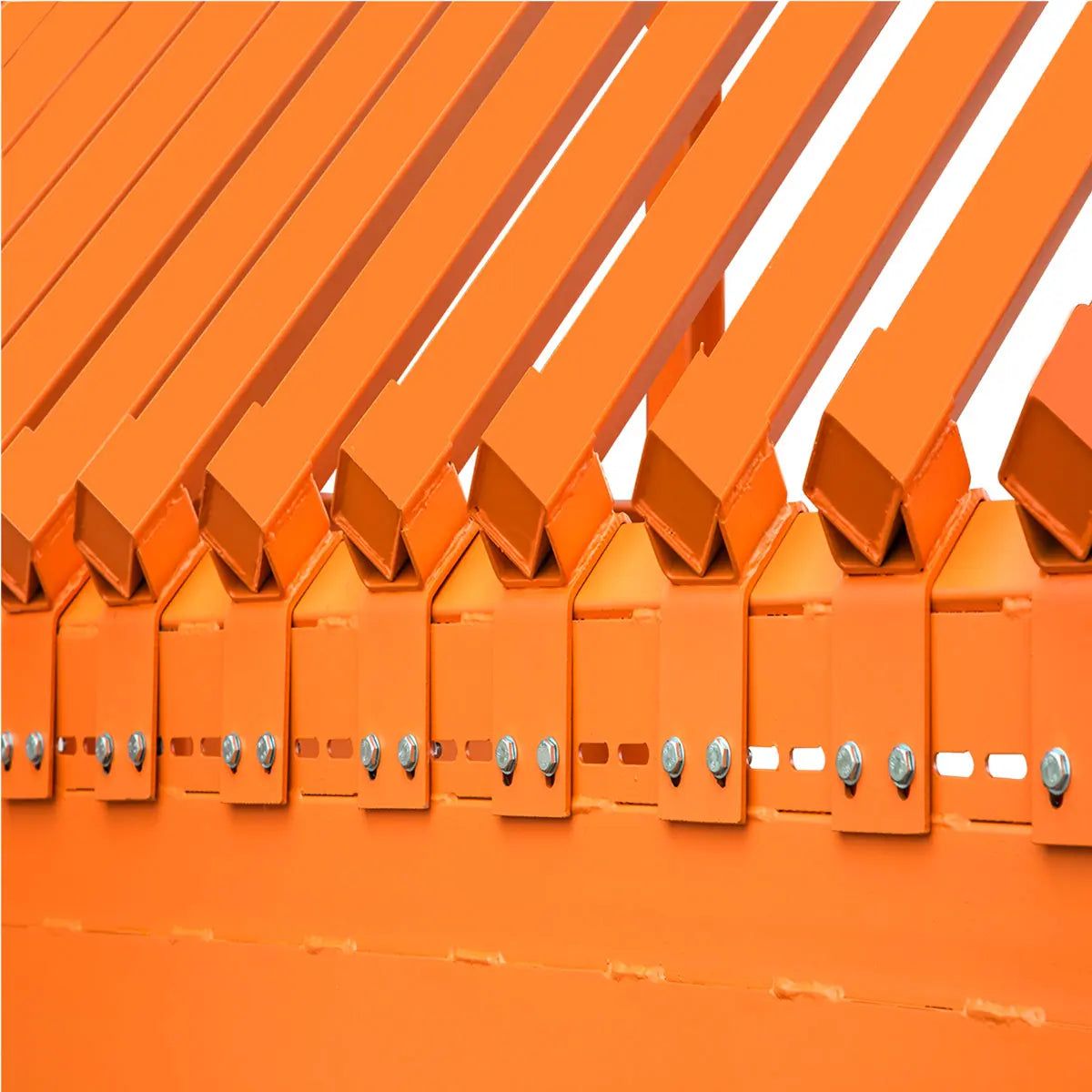

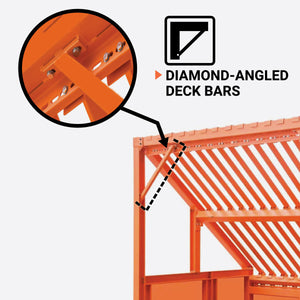

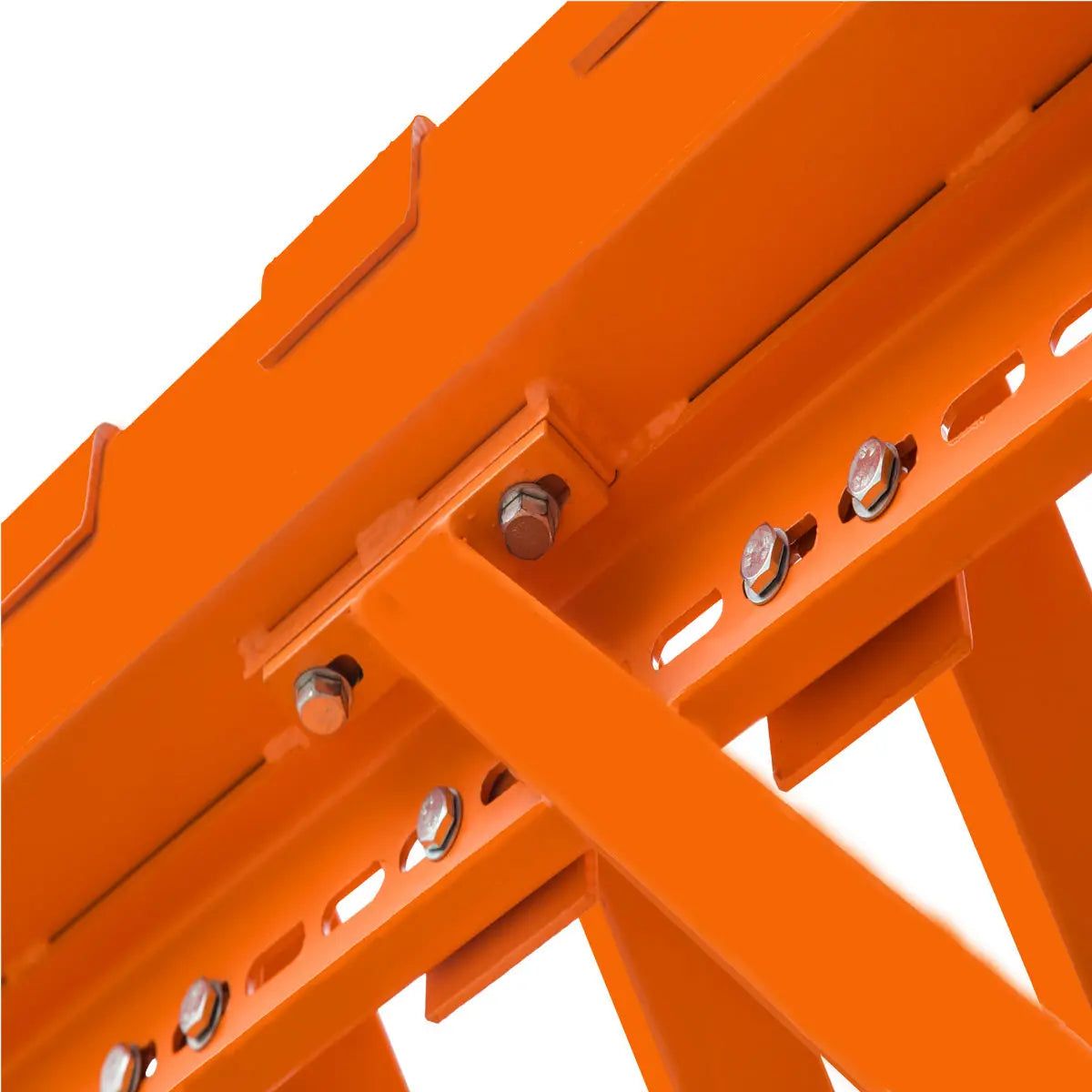

Adjustable bolt-on deck bars with minimum spacing option of 1" (extra deck bars required) and maximum of 5" are adaptable to fit your needs, with 3" spacing standard. These bars have a diamond-shaped, self-cleaning design that requires little, if any, maintenance. Commonly used for sorting oversized material before screening or crushing, and the 37° slope allows rocks and debris to fall straight to the ground instead of cluttering your work area.

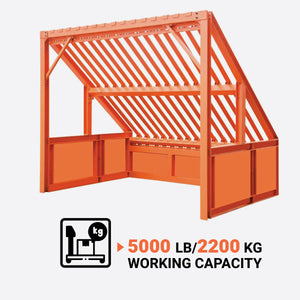

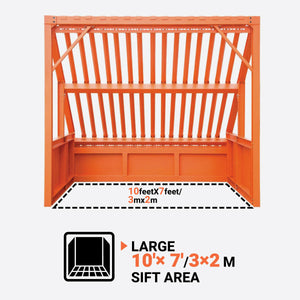

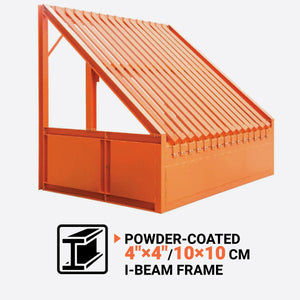

4" x 4" I-beams and square tubing main frame are powder coated and resistant to rust, wear and corrosion. Large 10' x 7' sift accepting area separates your profits from your waste and gets the job done faster. Quick to assemble, industrial strength construction design has a 5000 lb working capacity for your biggest, roughest jobs.

We also carry a larger model of this screen: TMG-RS12

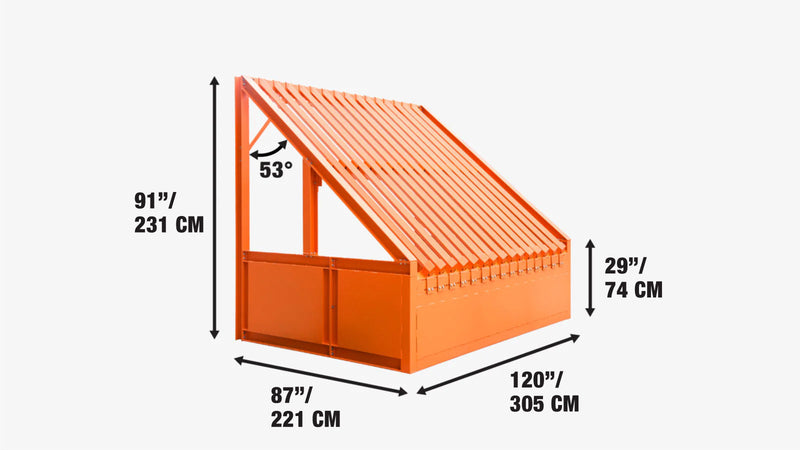

• Structure size: 10’ (L) x 7-¼’ (W) x 7-½’ (H)
• Average load capacity: 5000 lb
• Primary frame:
  • 4” x 4” I-beam posts
  • 4” x 4” crossing square tubing
• Sidewall and front wall steel plate: 10 GA
• Deck bar: 1-¾” x 1-¾” square tubing, 9’ in length, 8 GA
• Standard bar spacing: 3”
• Standard bar quantity: 18 (3” spacing)
• Minimum bar spacing: 1” (extra deck bars required)
• Maximum bar quantity: 26 (1” spacing)
• Maximum bar spacing capacity: 5”
• First and the last deck bar opening: 2-¾”

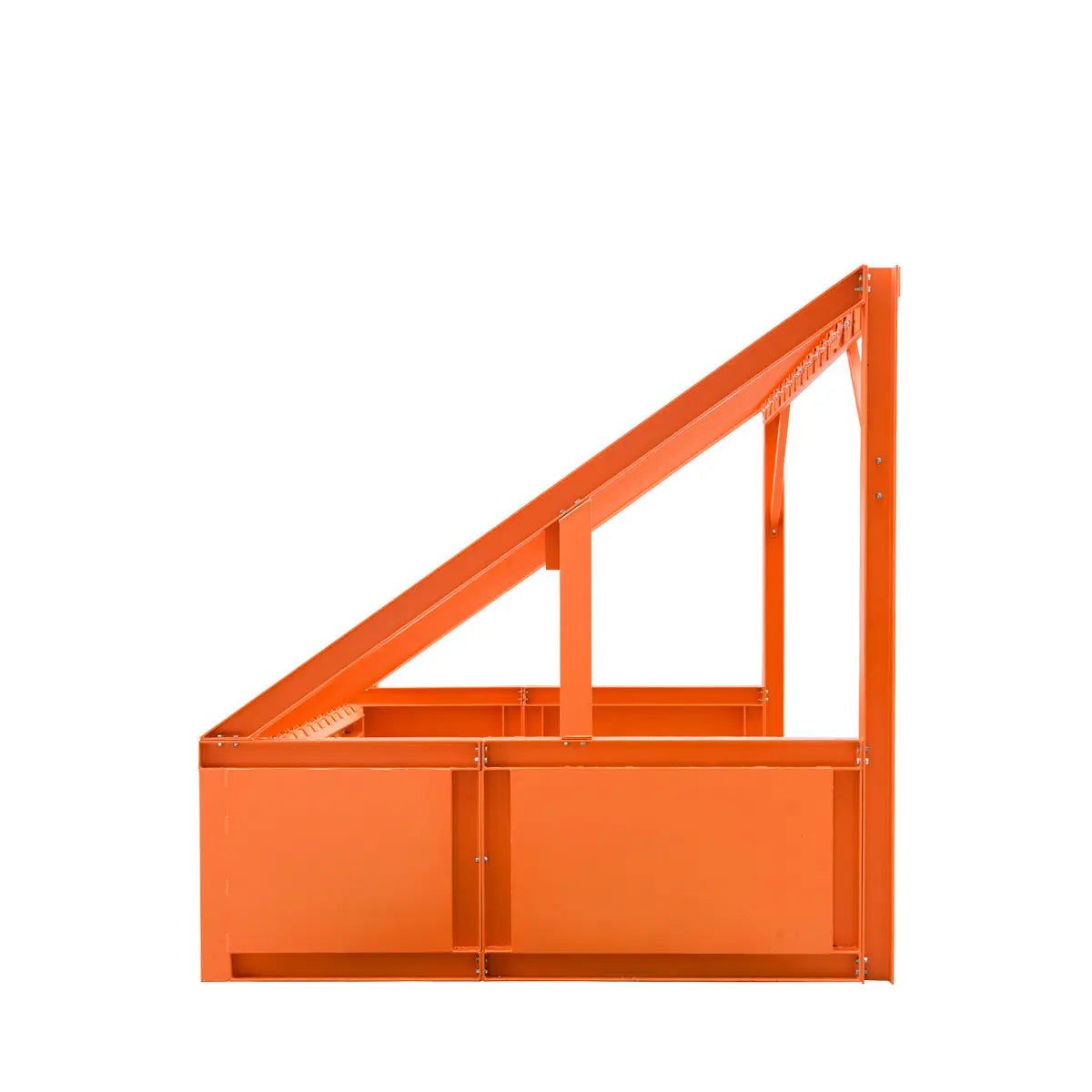

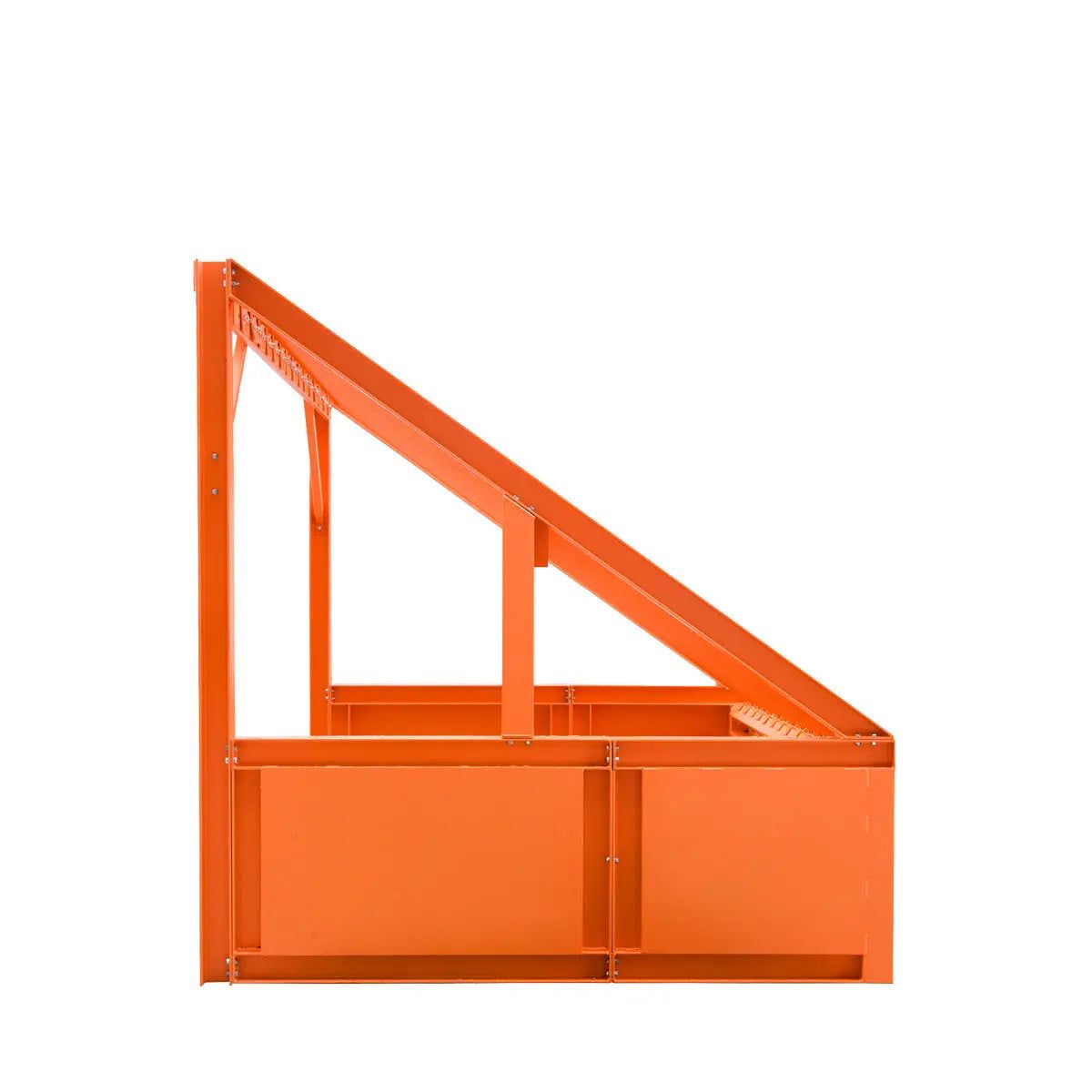

• Slope angle: 37°
• Spare deck bars sold separately
• Assembly required

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• This product is packed in a metal shipping crate
• Shipping dimension: 126” x 34” x 31” (L x W x H)
• Shipping weight: 2345 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
