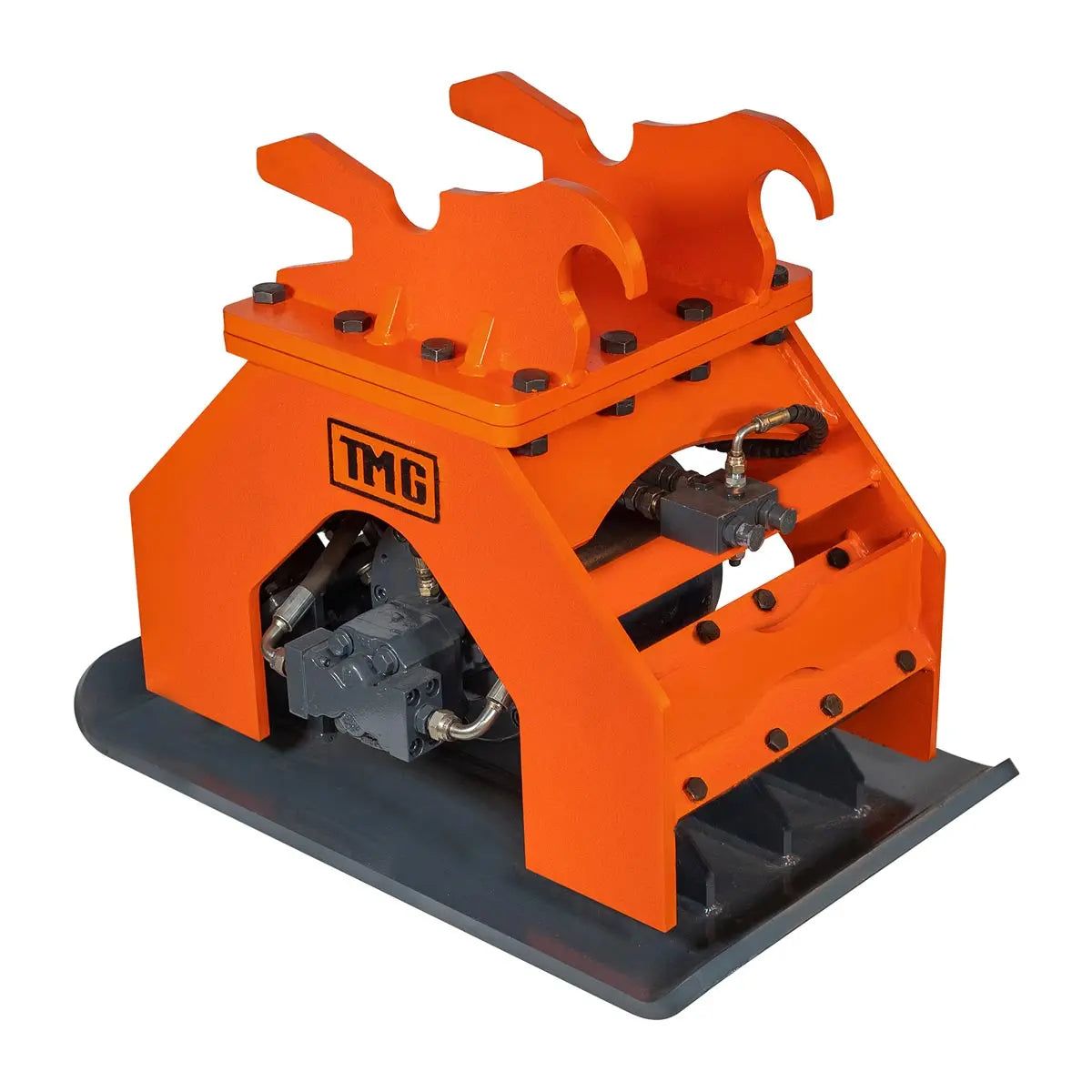

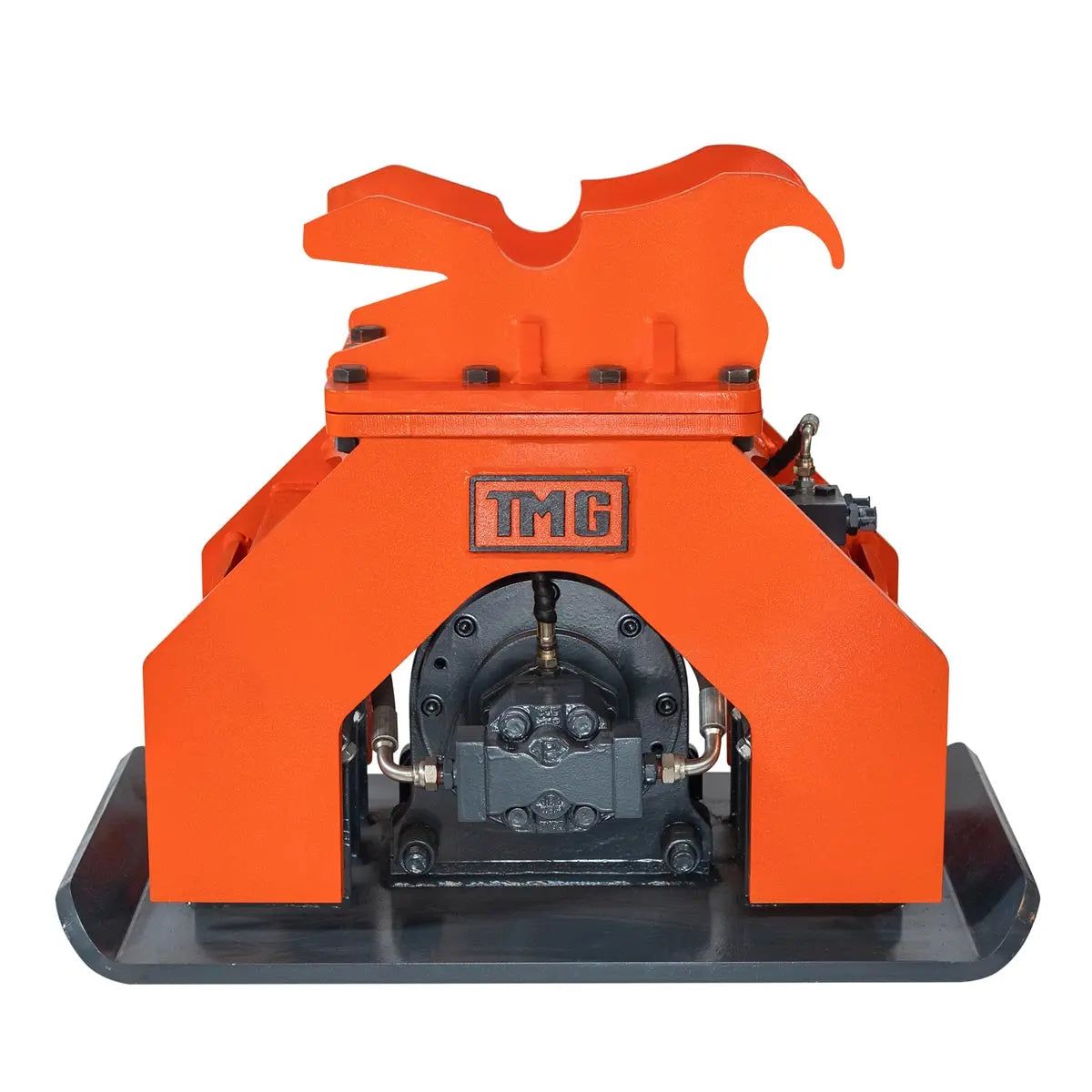

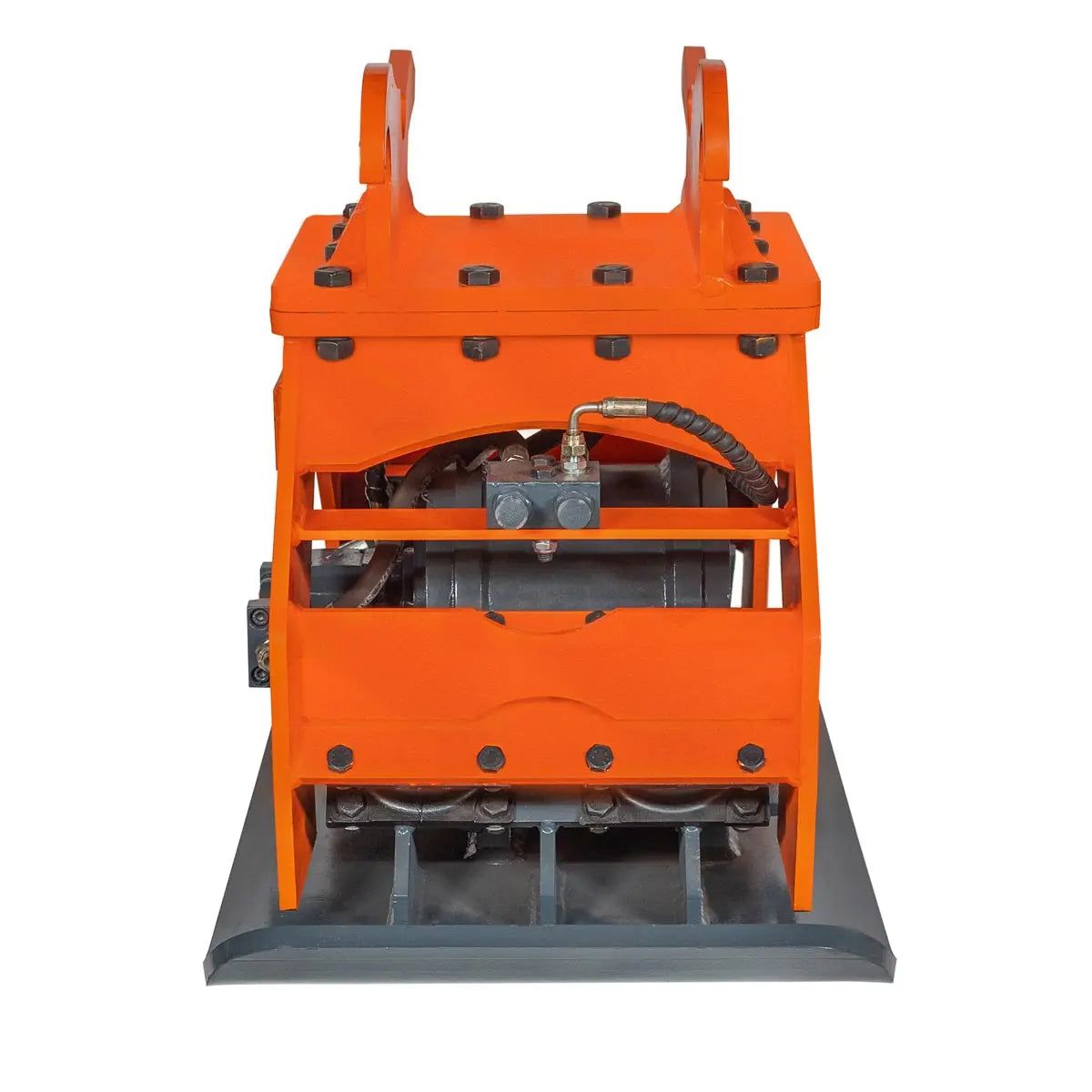

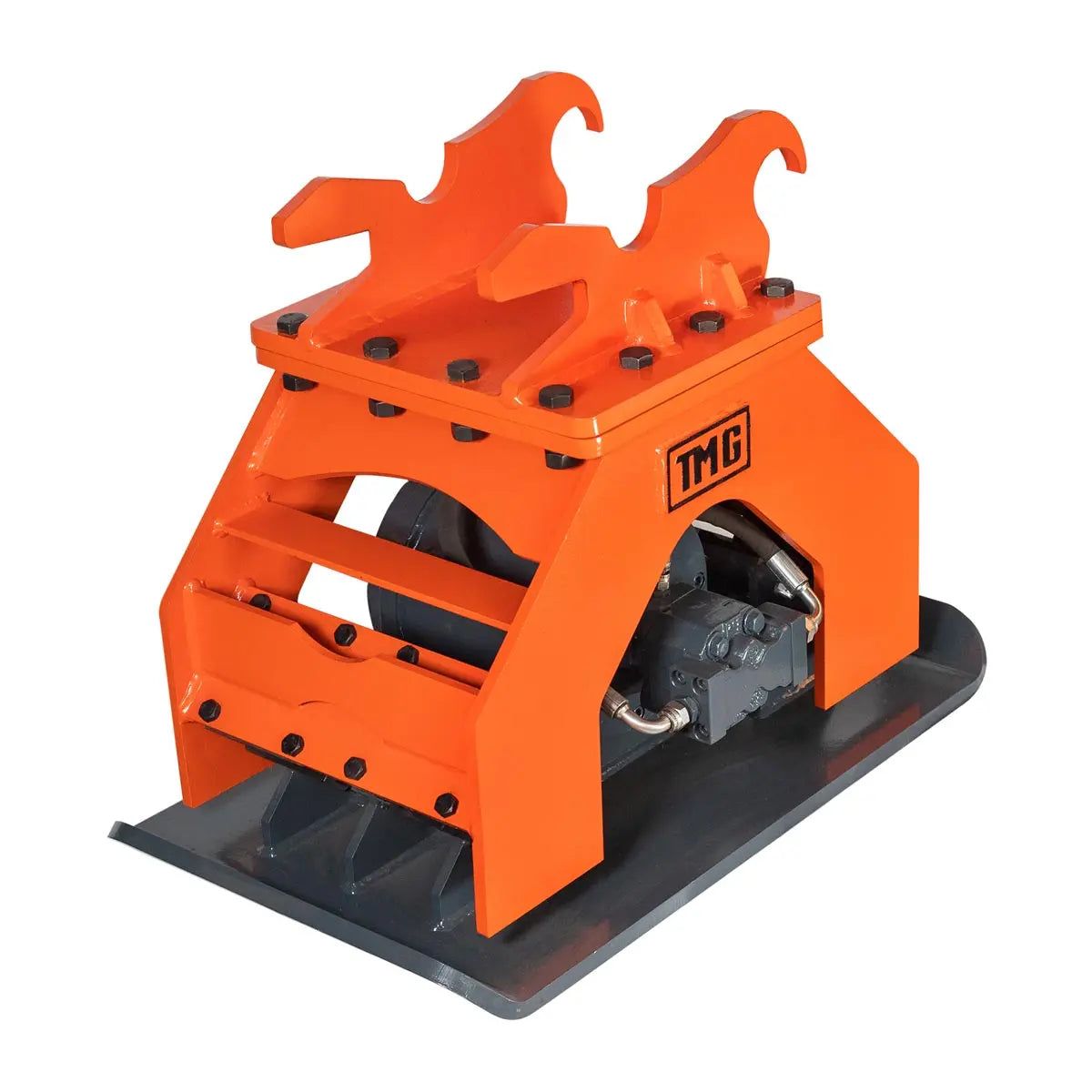

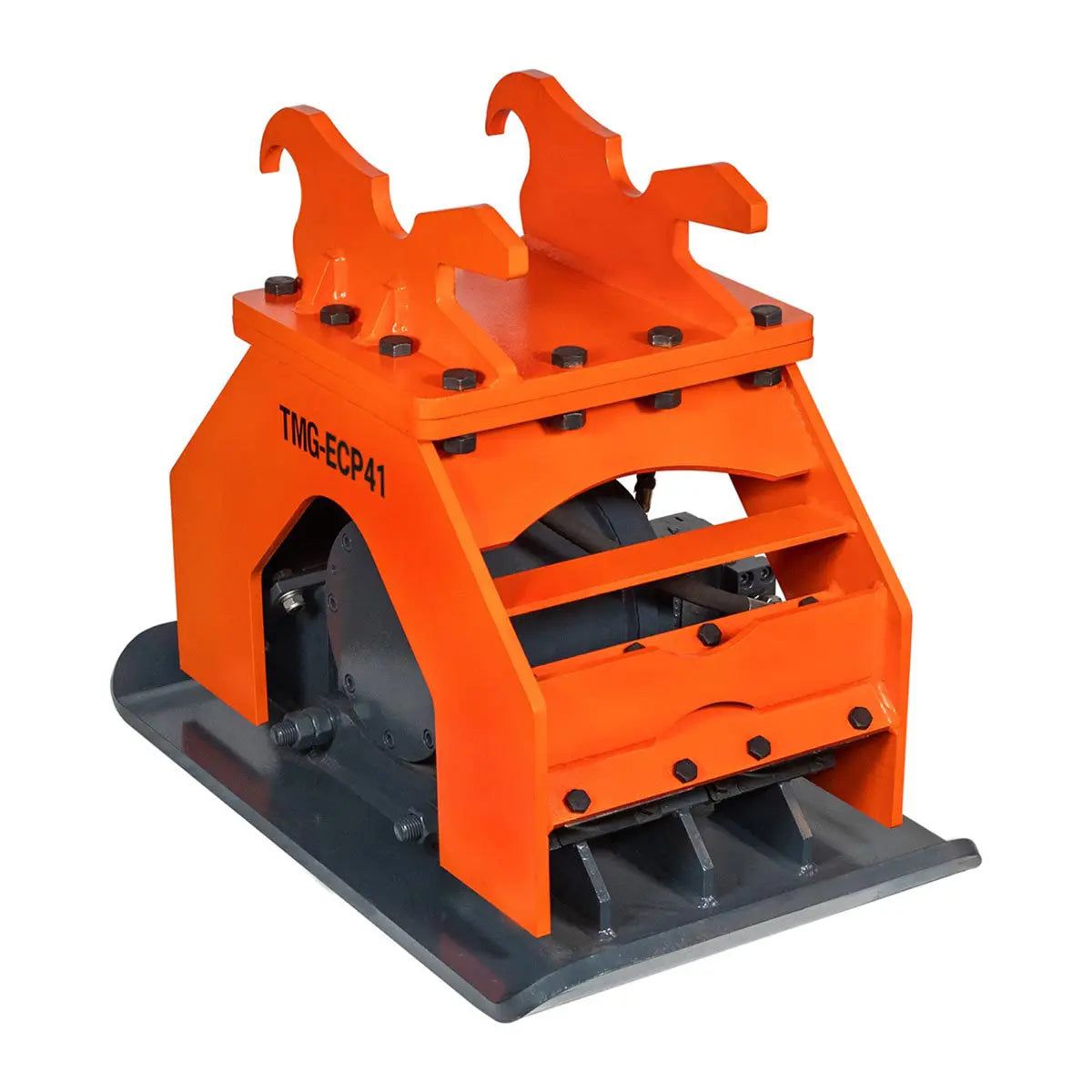

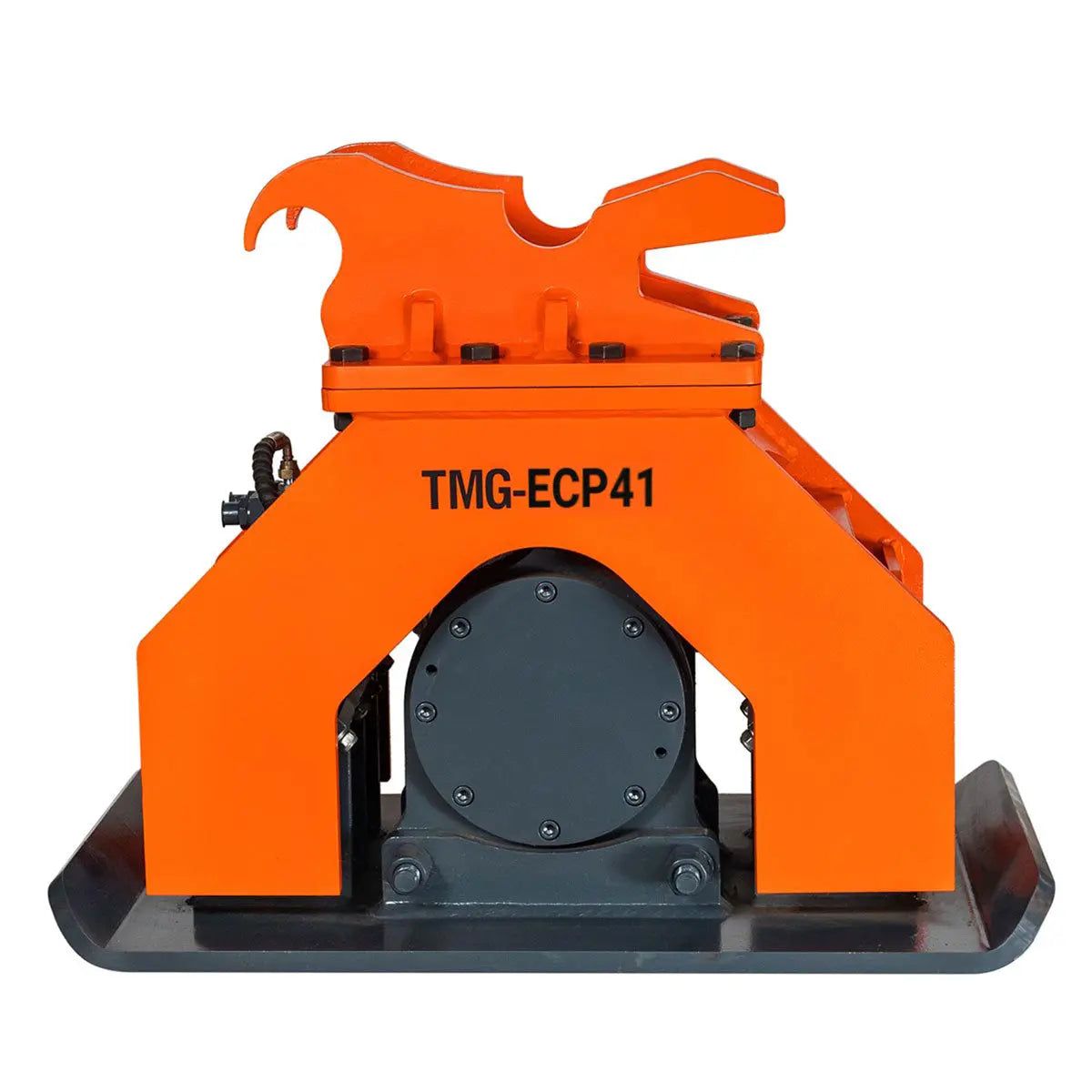

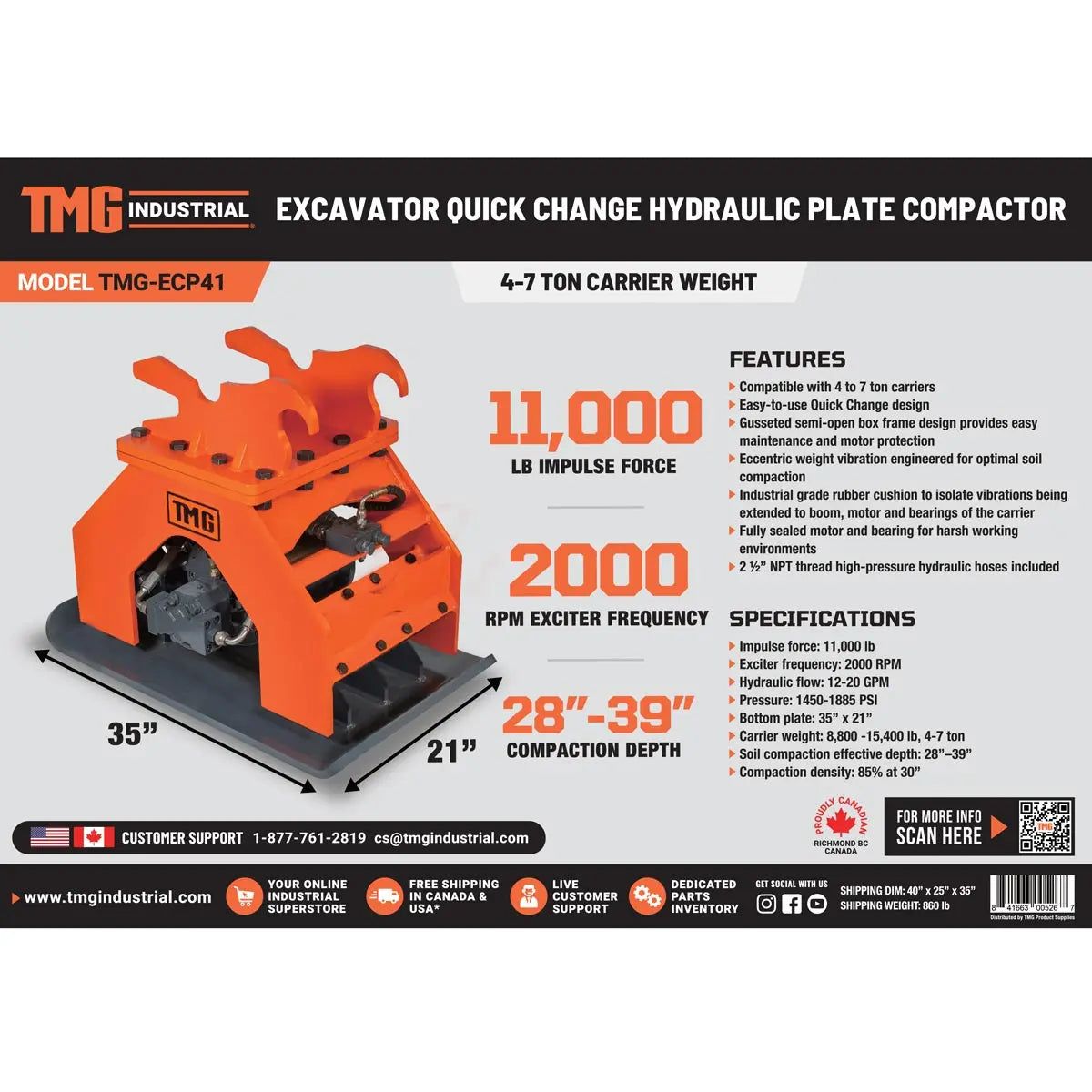

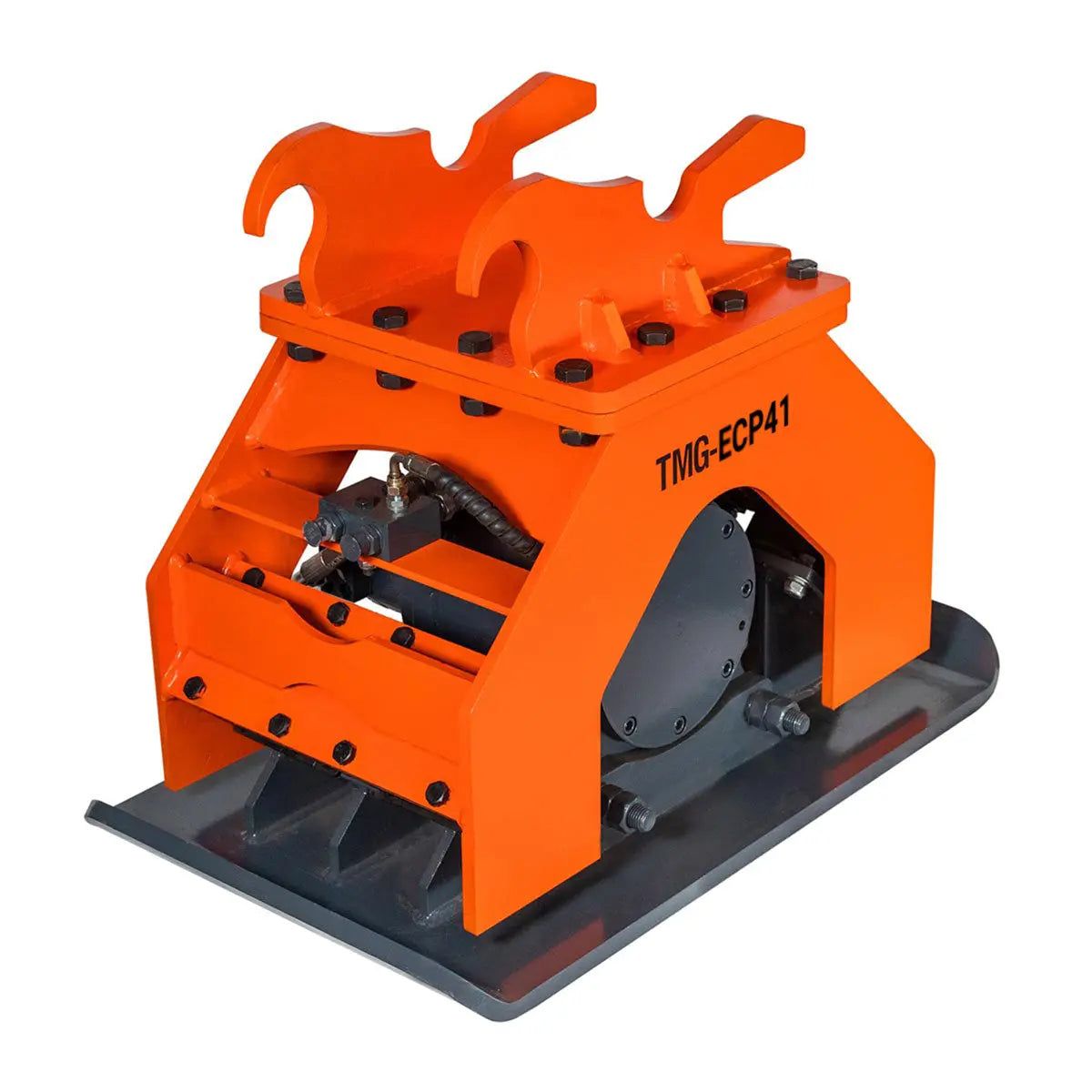

11,000-lbf Hydraulic Plate Compactor, 4-7 Ton Excavator Weight, 39" Compact Capacity, TMG-ECP41

$5,389 $6,568.86

Key Features

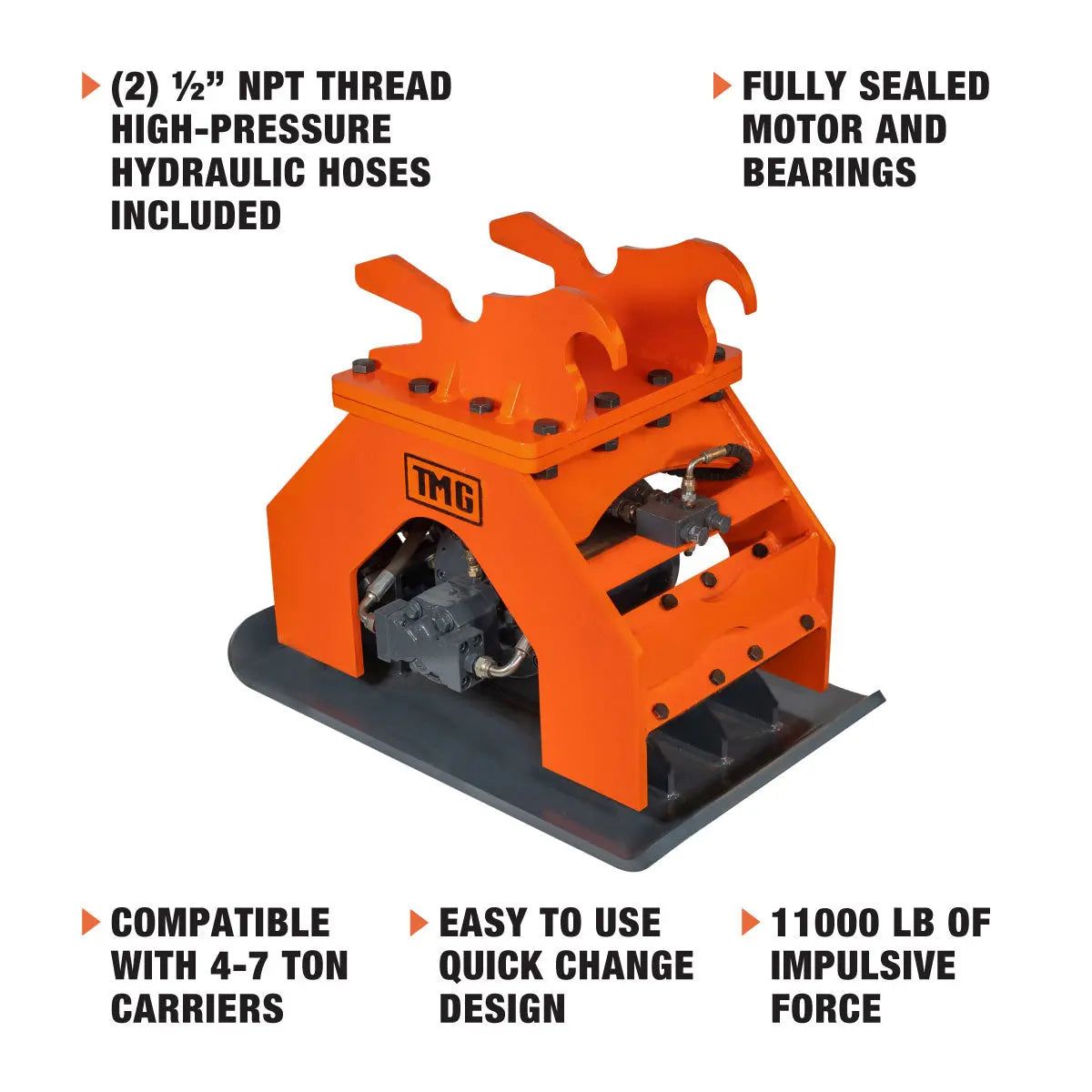

  • Compatible with 4-7 ton carriers
  • Easy to use quick change design for constant workflow between jobs
  • 11000 lbf of impulsive force for a compaction depth of 28”-39”

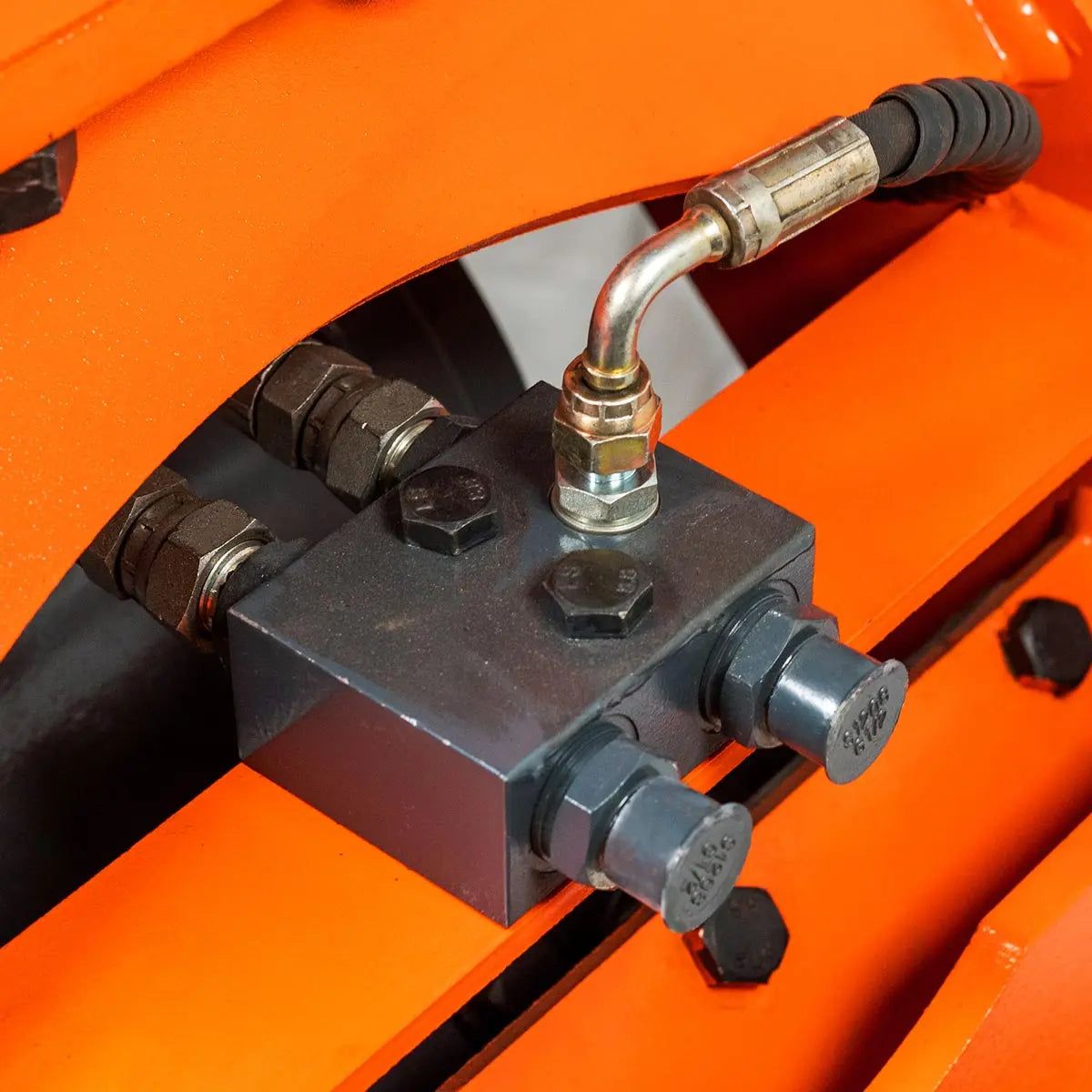

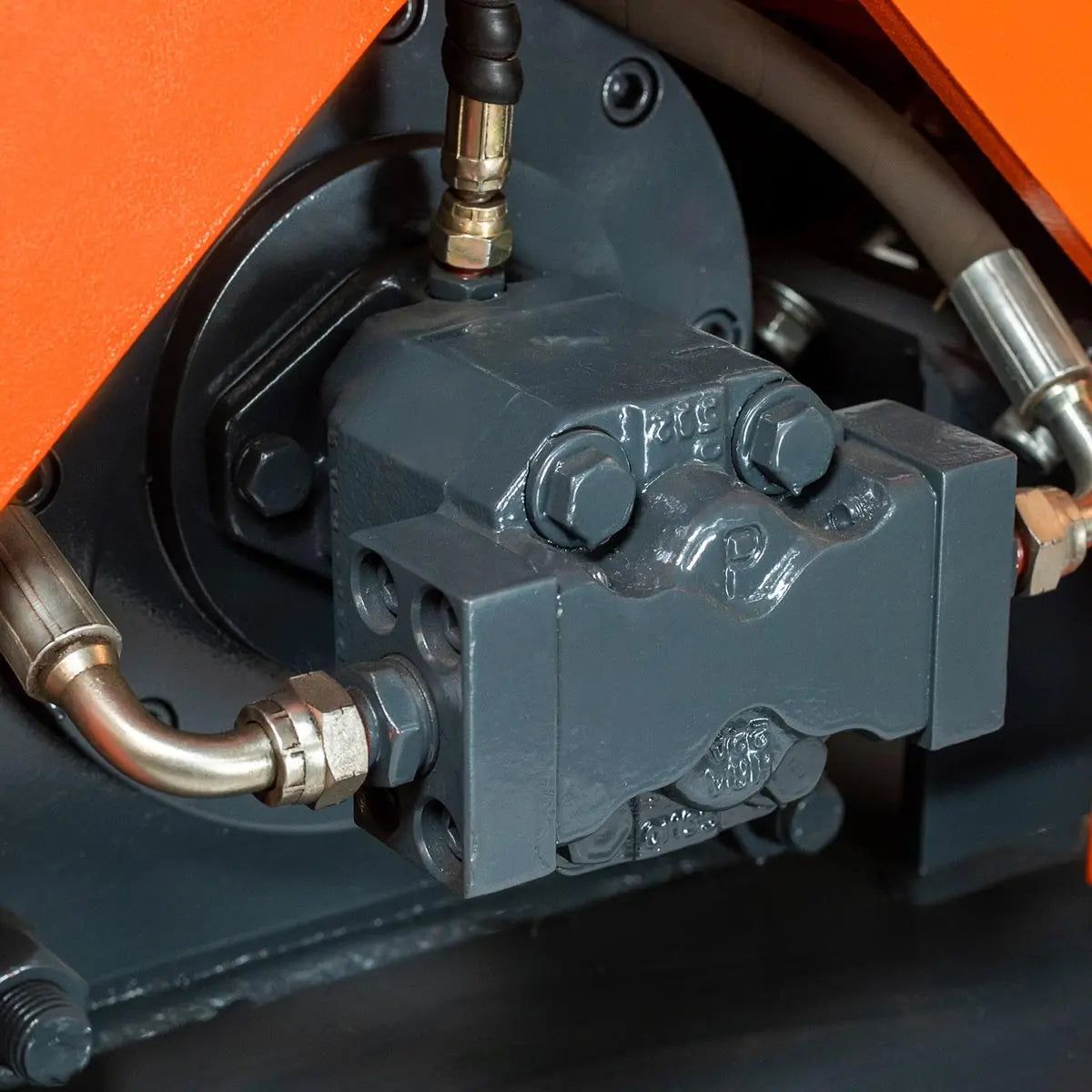

  • Overload shutoff valve to keep motor within its working range
  • Fully sealed motor and bearings are protected from harsh working environments
Quality Products Delivered to Your Door
Handling fee applies to oversize items
Manufacturer warranty included
Extended coverage available
PRODUCT OVERVIEW +

The TMG-ECP41 is a powerhouse capable of compacting soils, gravels and sands for projects needing stable, solid grounds to work and build on. Any sort of bituminous or granular materials are simply no match for the 11000 lbf of impulse force and effective compaction depth up to 39". The ideal solution for construction sites, roads, foundations and any other tight footing and road preparatory needs.

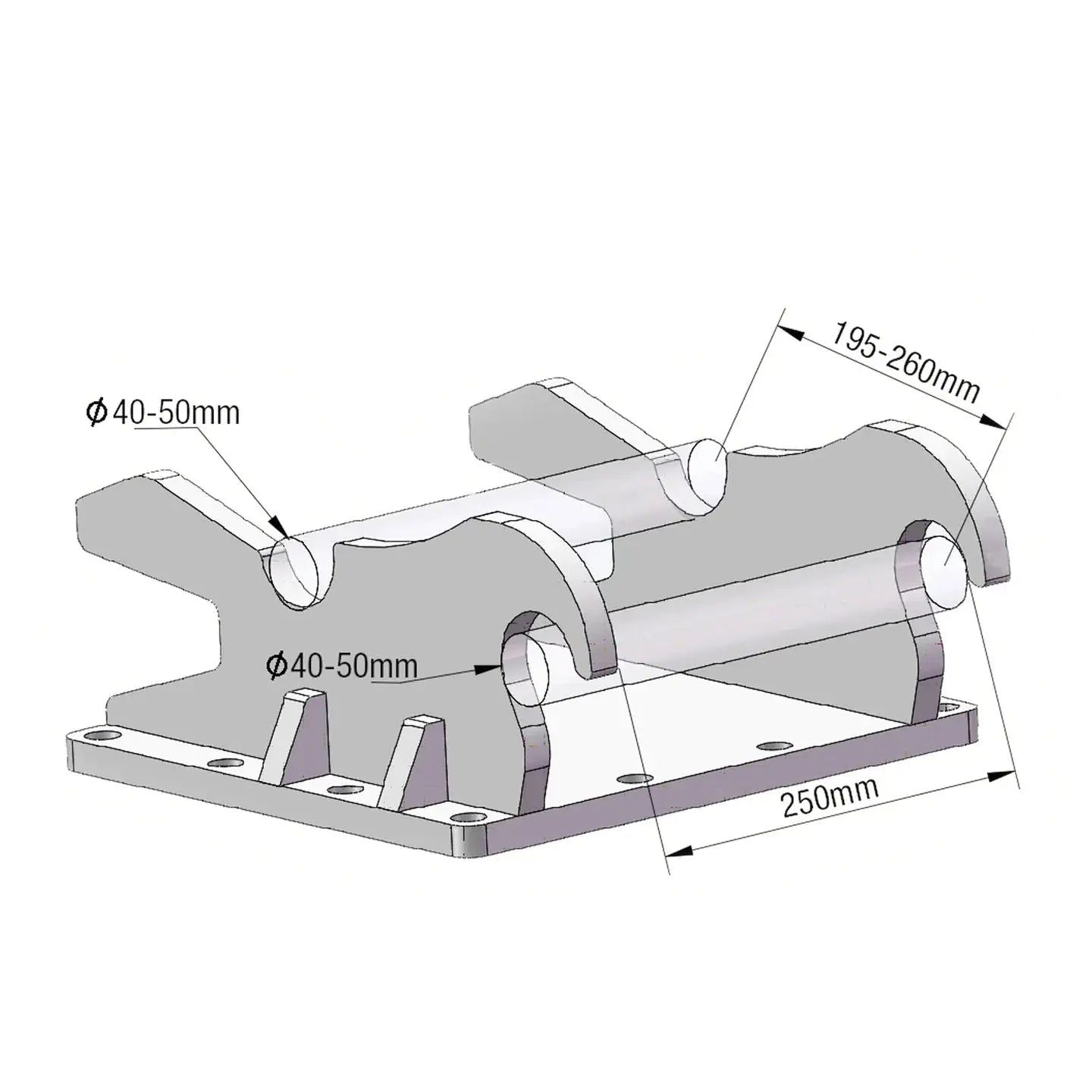

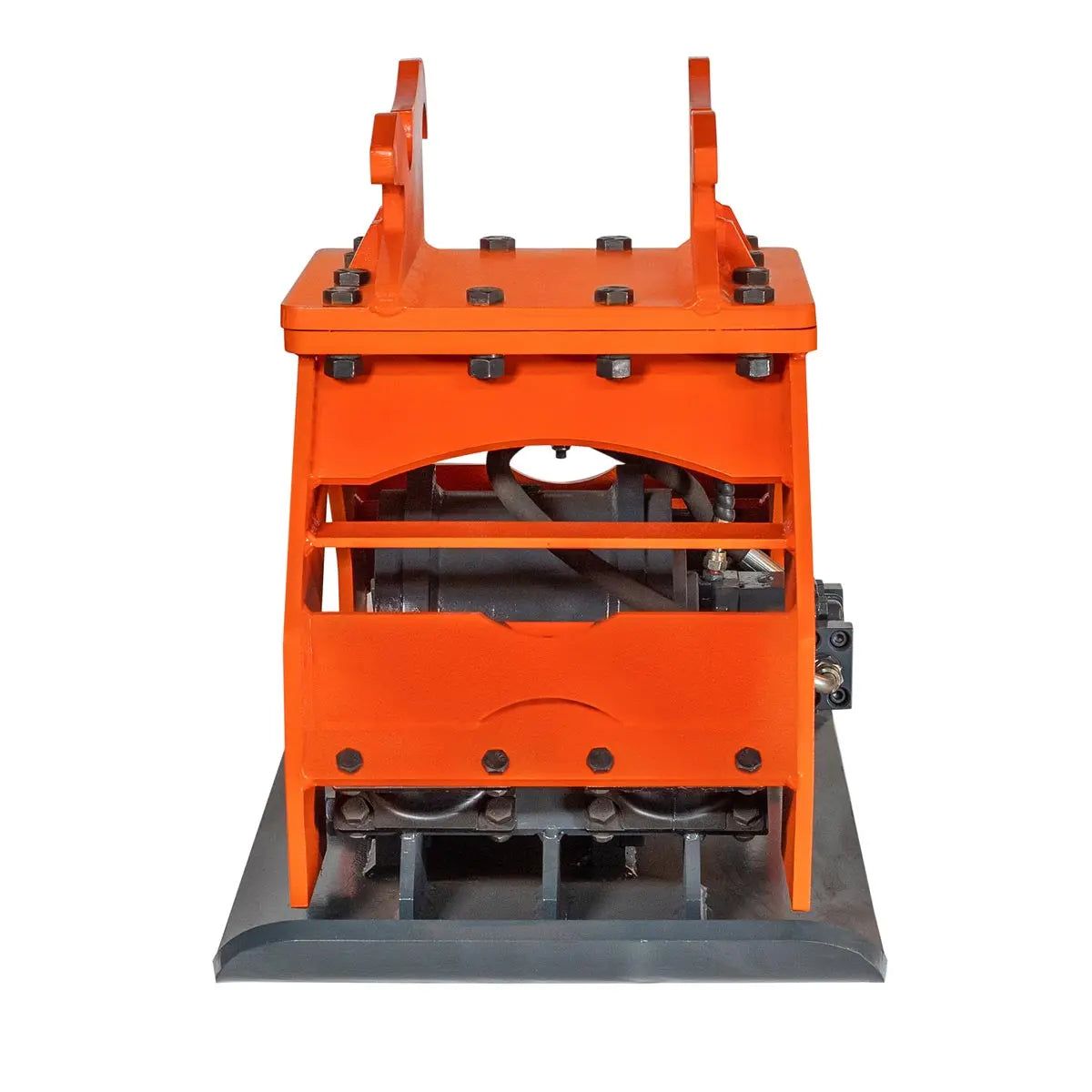

Compatible with 4 to 7 ton carriers and fitted with an easy to use quick change lugging design that keeps workflow running smoothly and efficiently. Motor is housed in a heavy-duty steel frame that is semi-open to allow for easy maintenance while still providing superior protection of its vital components. Included high pressure hydraulic hoses offer a simple hookup and disconnect as well as efficient energy transfer from your excavator to the compactor.

Eccentric weight vibration has been engineered for optimal soil compaction that translates to an 85% compaction density at 30" depth. Industrial grade rubber cushion isolates reverberations from reaching the boom, motor and bearings of the carrier ensuring minimal wear and tear and maximum force into the ground. An overload valve shutoff keeps the motor within its working range to prevent damage and extend the compactors lifespan.

SPECIFICATIONS +
  • Impulse force: 11,000 lbf
  • Exciter frequency: 2000 RPM
  • Hydraulic flow: 12-20 GPM
  • Pressure: 1450-1885 PSI

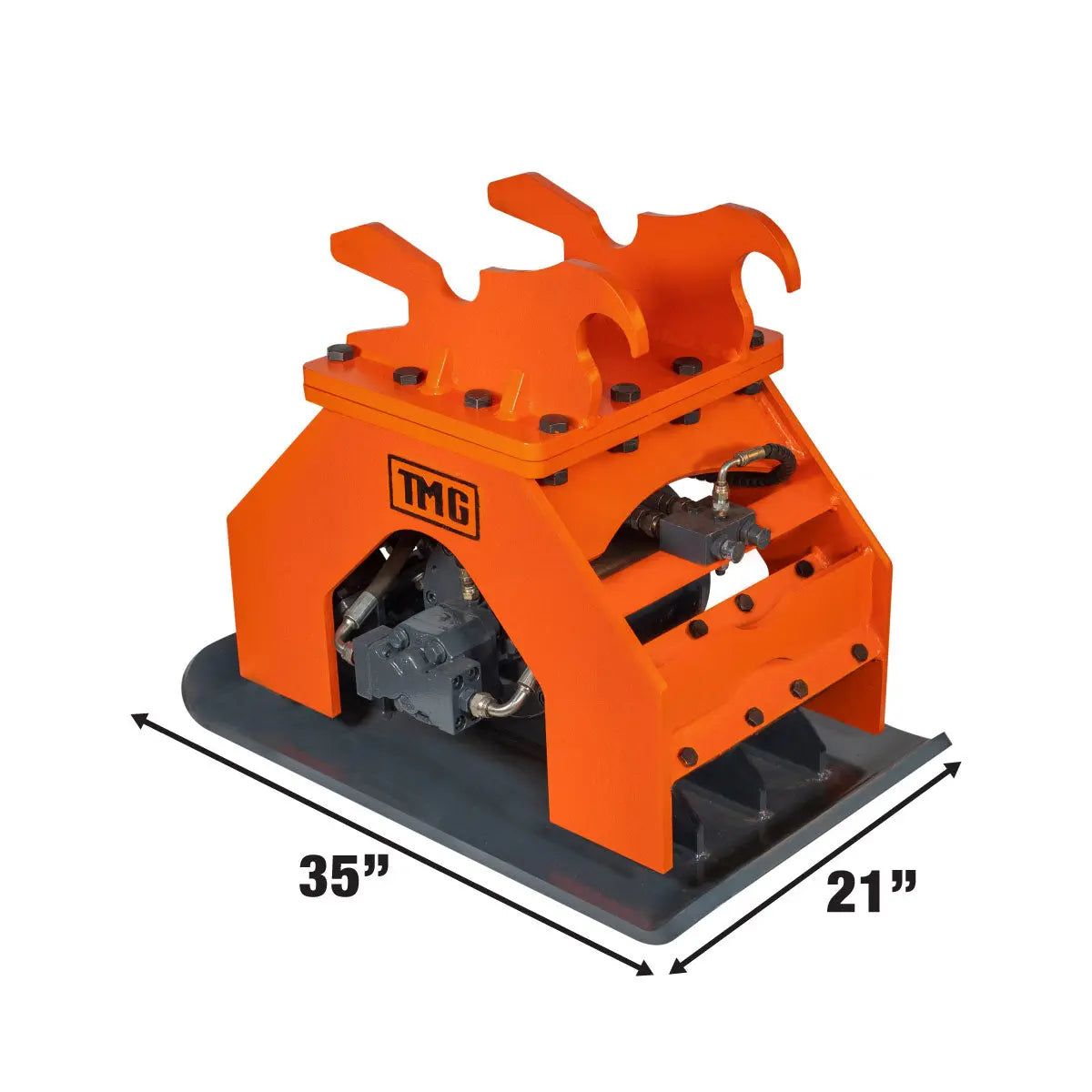

  • Bottom plate: 35” x 21”
  • Carrier weight: 8,800 -15,400 lb, 4-7 ton
  • Soil compaction effective depth: 28”–39”
  • Compaction density: 85% at 30”
  • (2) ½” NPT thread high-pressure hydraulic hoses included
SHIPPING INFO +

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 40” x 27” x 34” (L x W x H)
  • Shipping weight: 810 lb
