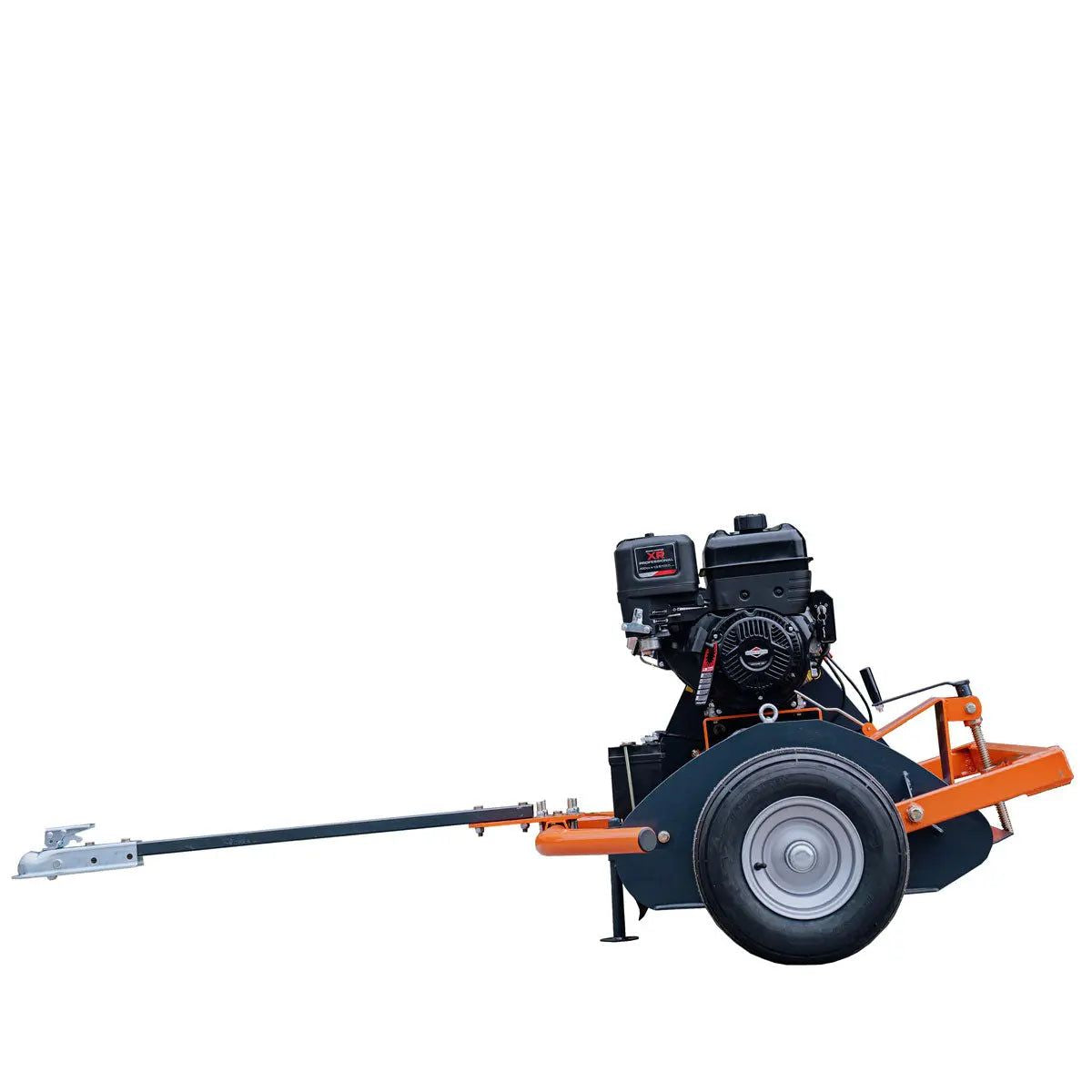

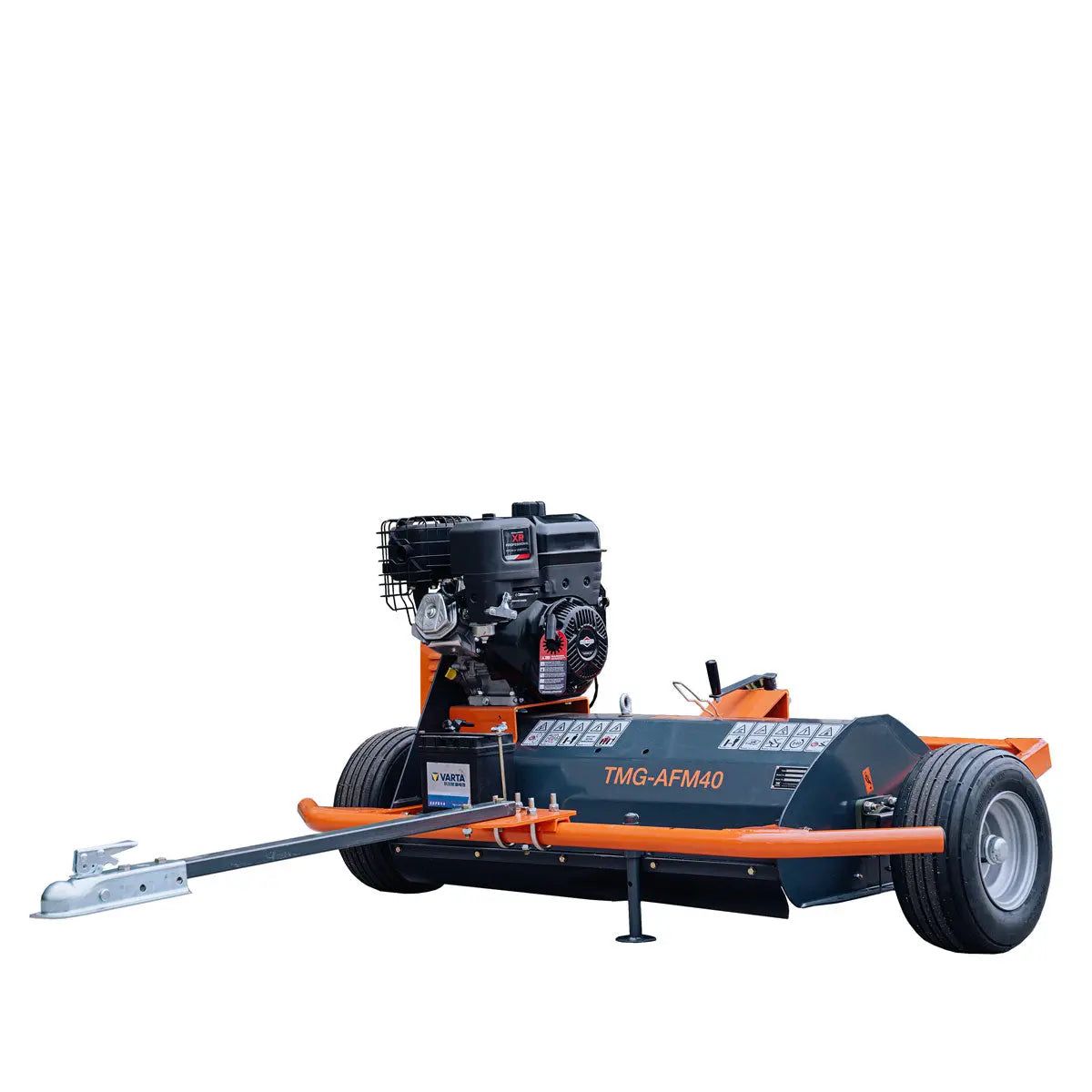

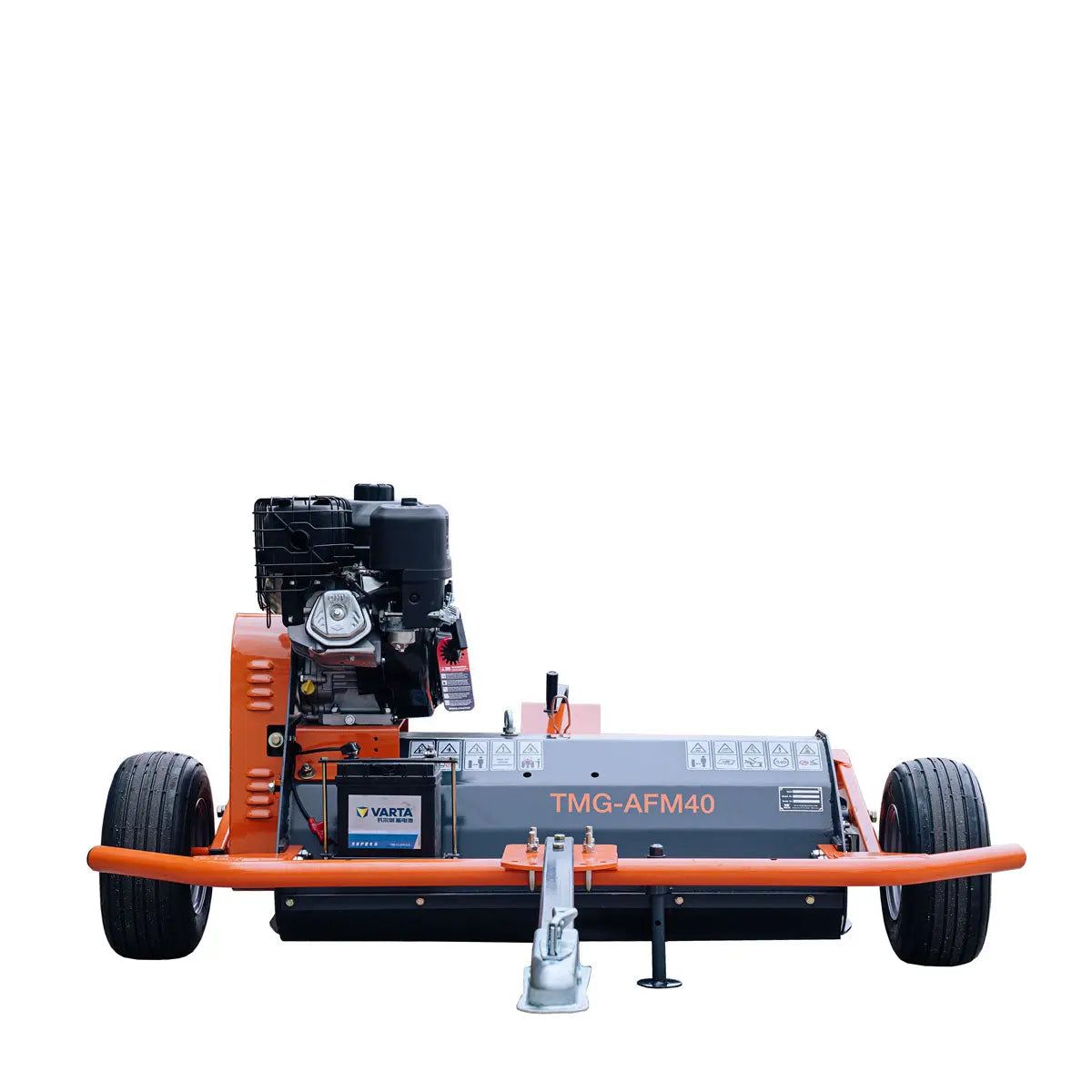

40" ATV Tow-Behind Offset Flail Mower, Briggs & Stratton 13.5 HP Engine, Adjustable Mowing Height, 15" Cut Capacity, TMG-AFM40

$3,889 $4,955.17

Key Features

  • Easy hookup to your ATV for the cutting of grass, weeds & other light vegetation
  • Powered by a reliable 13.5 HP Briggs & Stratton Engine
  • 40” of working width & 5-point offset capabilities

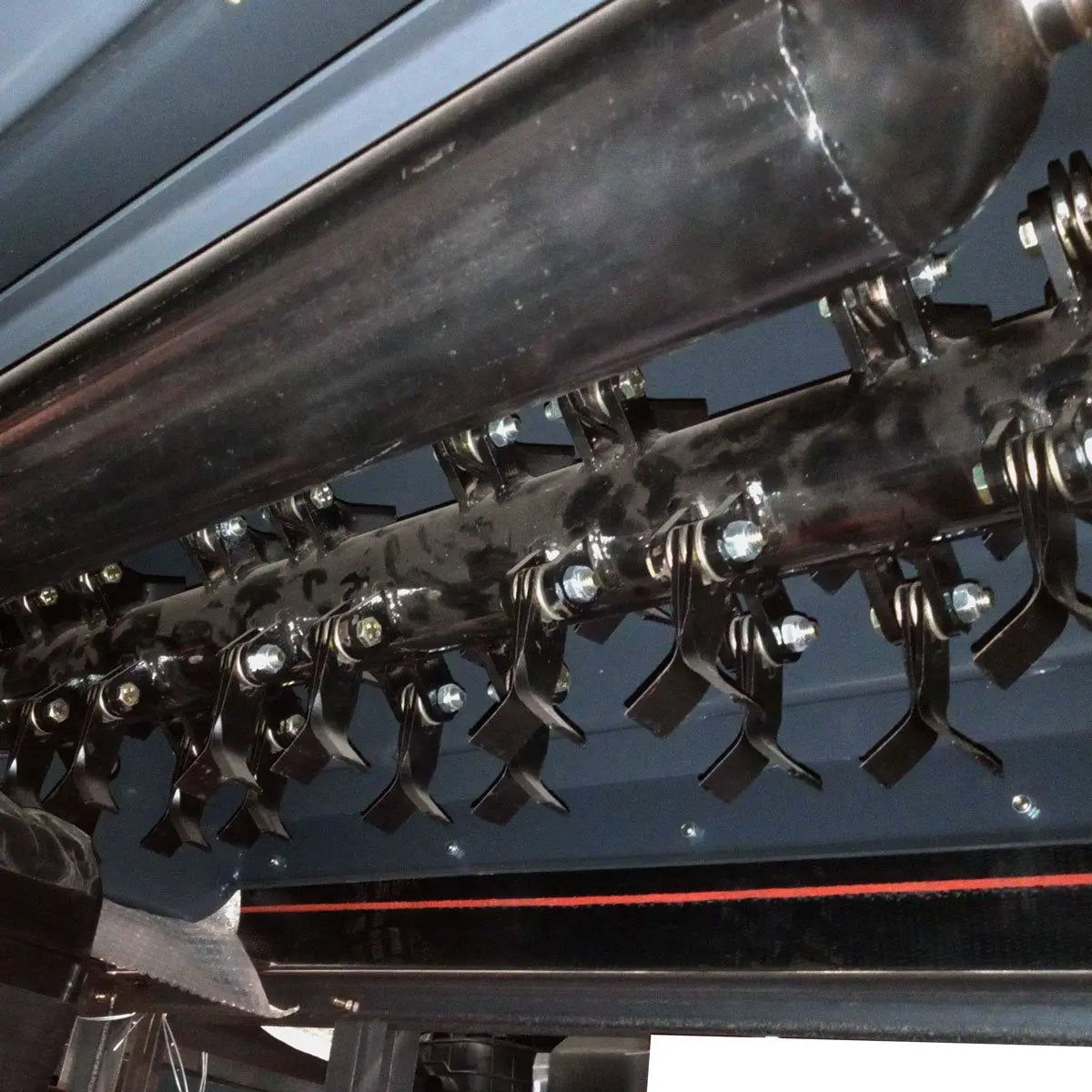

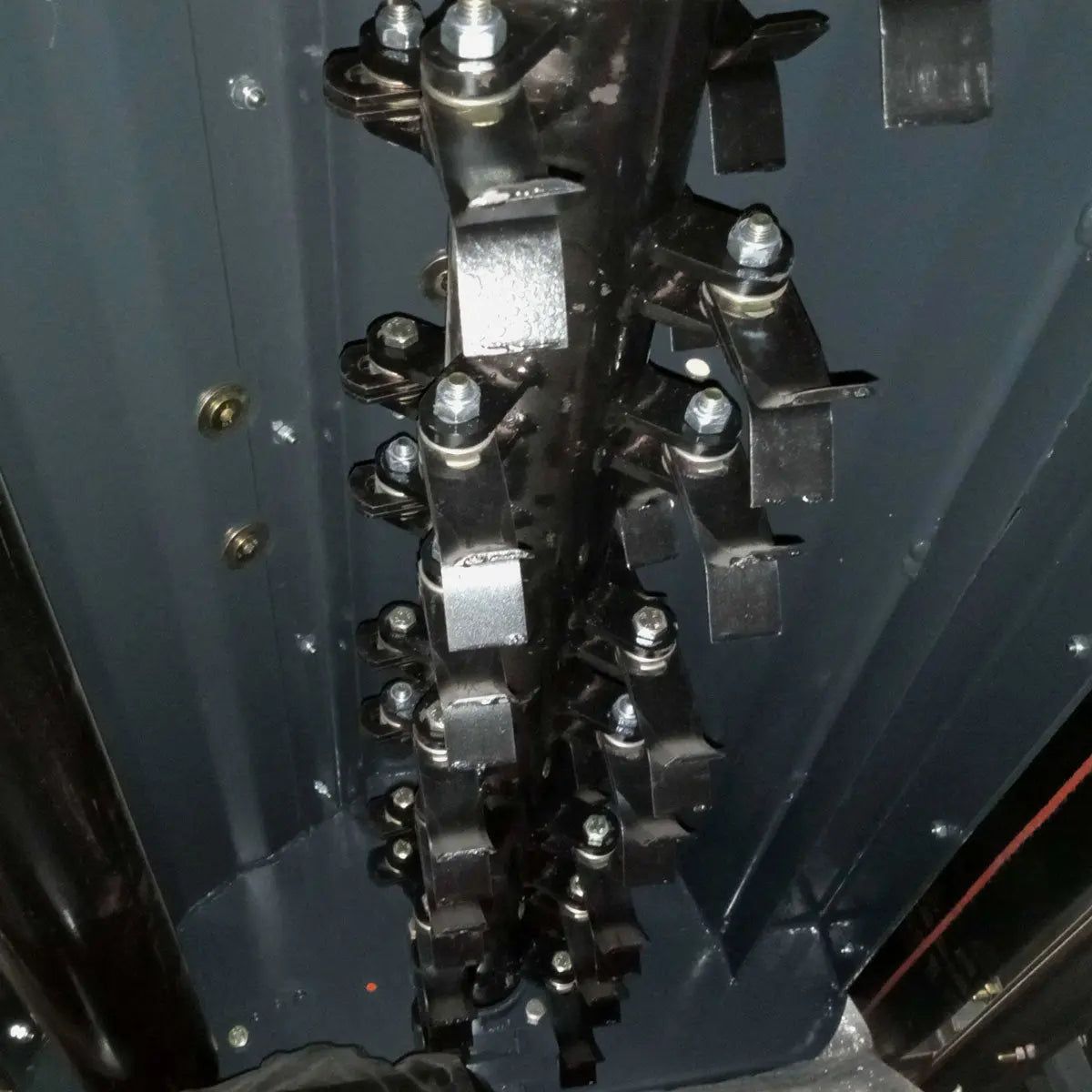

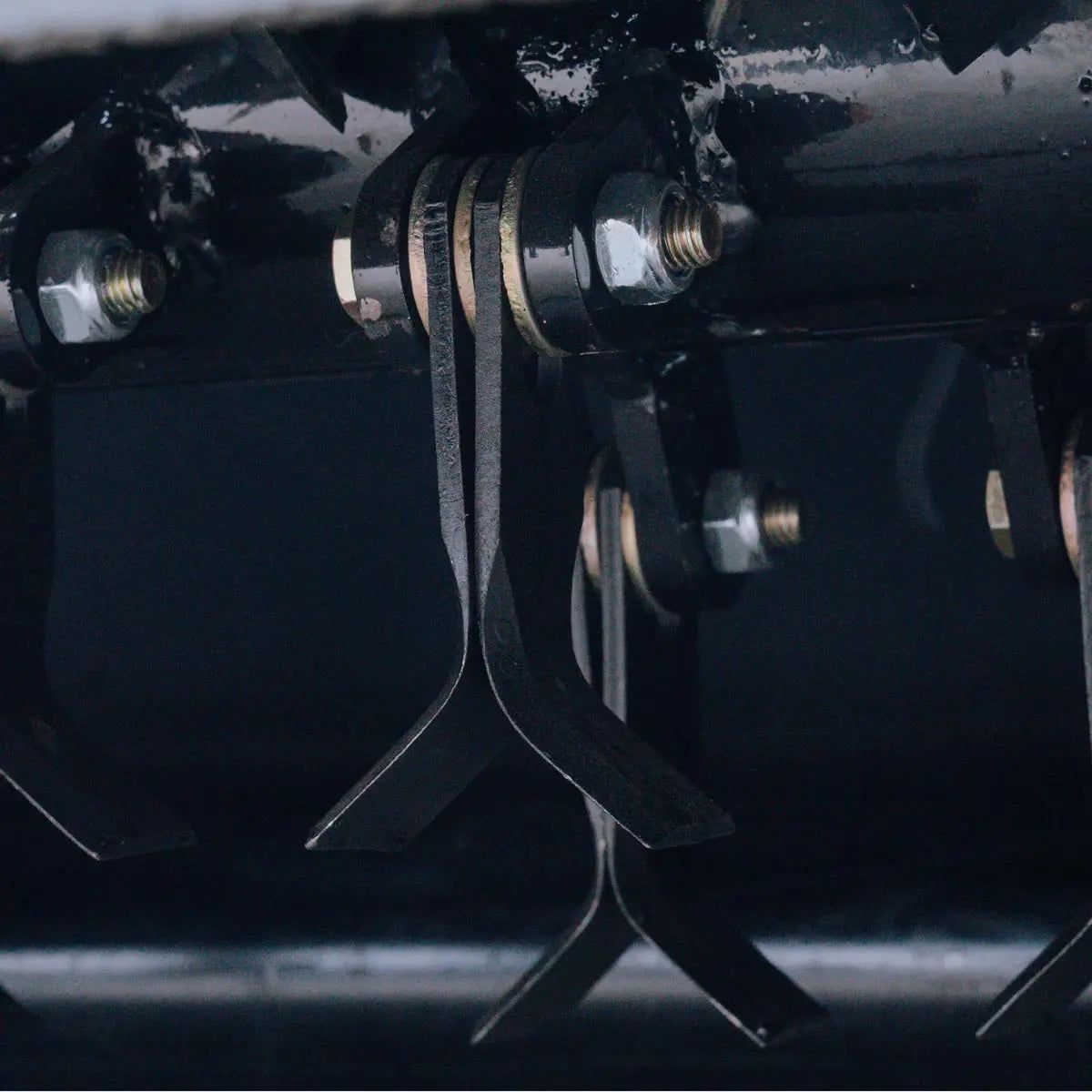

  • 64 razor sharp 4” Y-shaped blades made with hardened carbon steel
  • Two-belt drive system with clutch for efficient power transmission
Quality Products Delivered to Your Door
Handling fee applies to oversize items
Manufacturer warranty included
Extended coverage available
PRODUCT OVERVIEW +

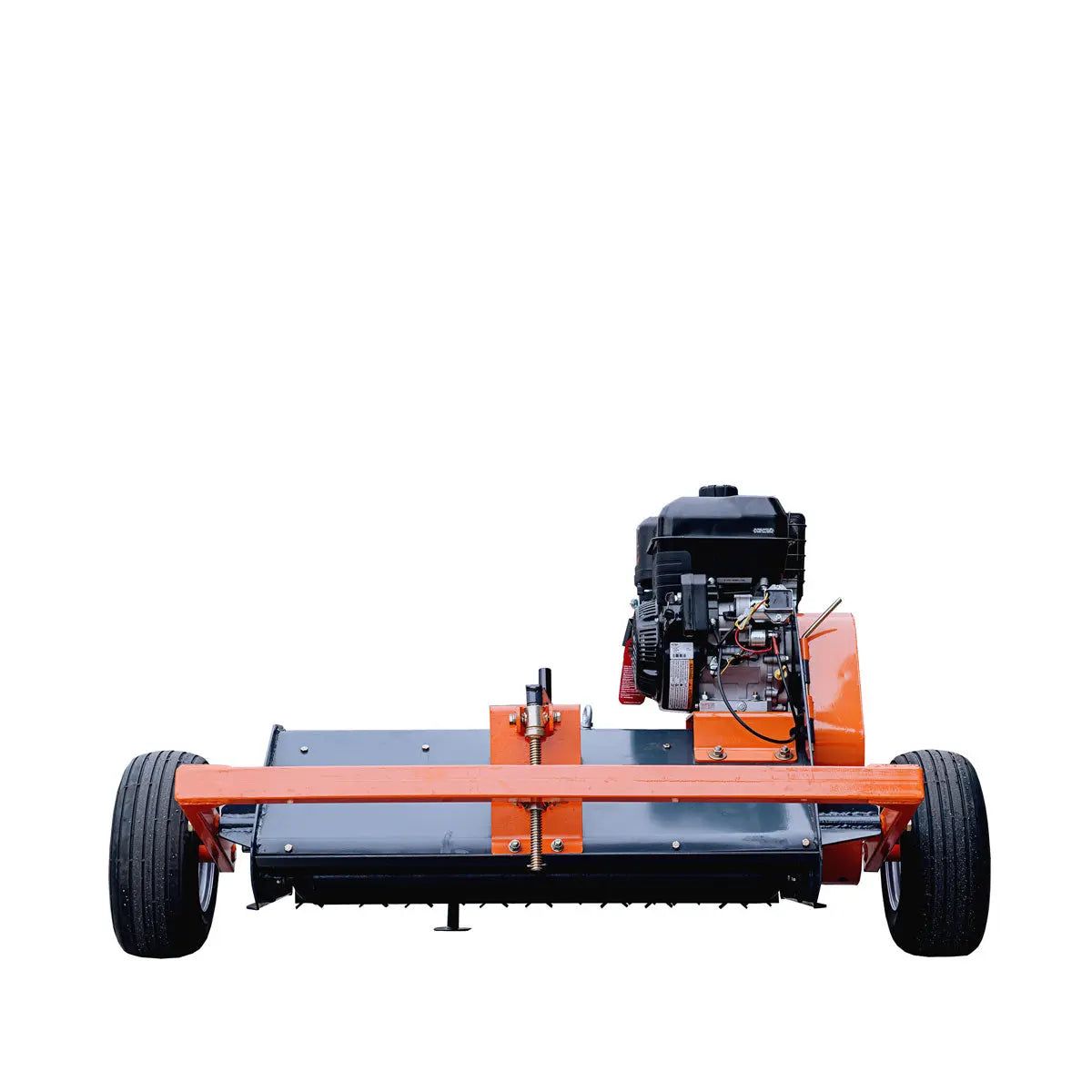

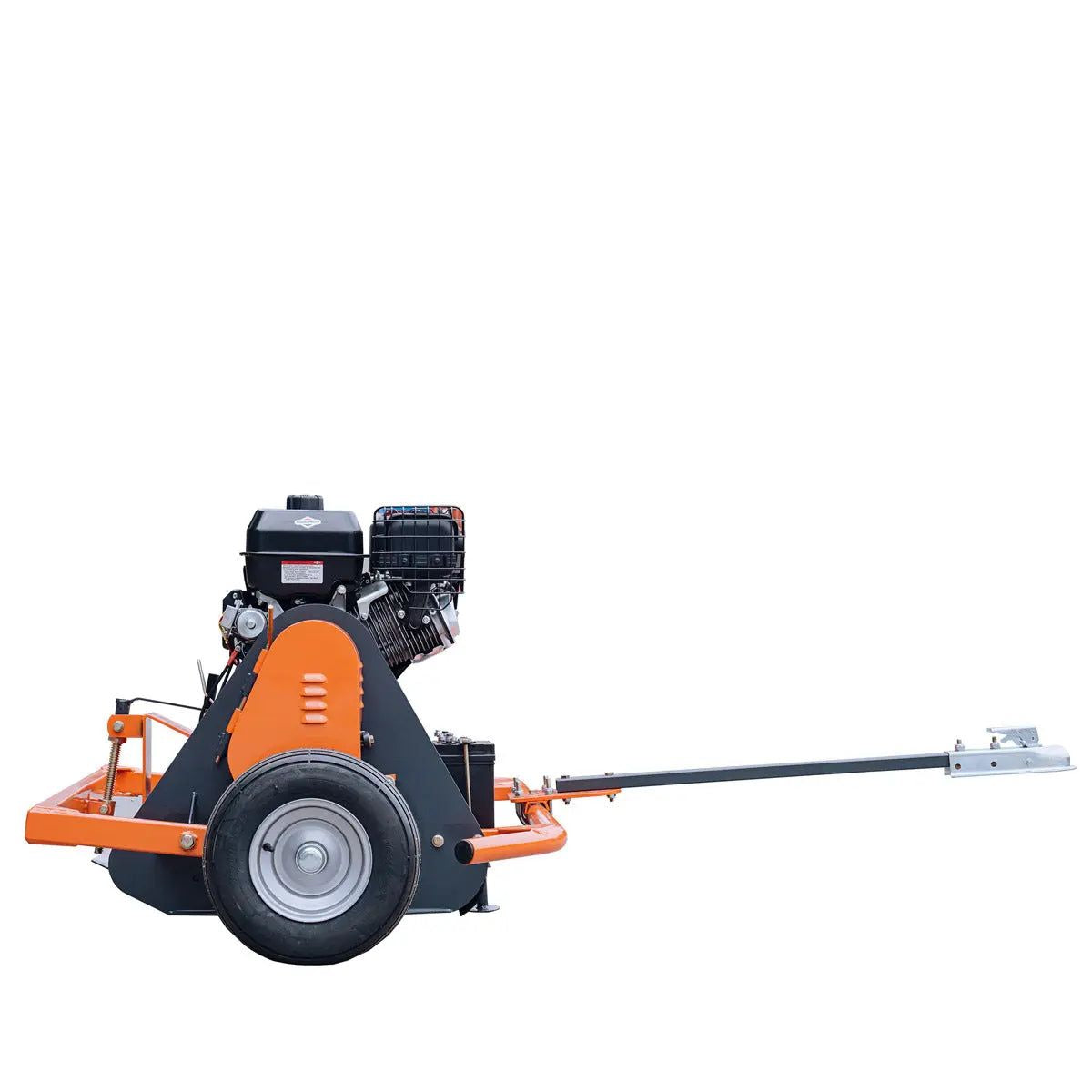

The TMG-AFM40 ATV Tow-Behind Flail Mower makes the cutting of uneven, overgrown and harsh terrain efficient and easy to do. Simple, easy hookup to a 2" ball receiver on your ATV or UTV for use around your home, farm or commercial property. This mower is the perfect attachment for your four-wheeler and turns it into a versatile maintenance machine to keep your property looking sharp.

40" of working width for fast, efficient cutting and 5-point offset capabilities for when you're working around trees and bush lines or getting close to buildings and garden areas. Cut grass up to 15" in height and leave a smooth, finished surface with the attached heavy-duty rear roller. A two-belt drive system provides efficient energy transfer and reduces slippage for a long-lasting, low-maintenance mower that will last for many years.

64 razor sharp 4" Y-shaped blades are powered by a reliable, electric start 13.5 HP Briggs & Stratton XR Professional Series engine to make sure you get the job done right. The engine is durable and features a Dura-Bore™ cast iron sleeve and cartridge air cleaner that includes a standard pre-cleaner. Ships free from our warehouse in Richmond, BC.

We also carry a 48" model of this mower: TMG-AFM48

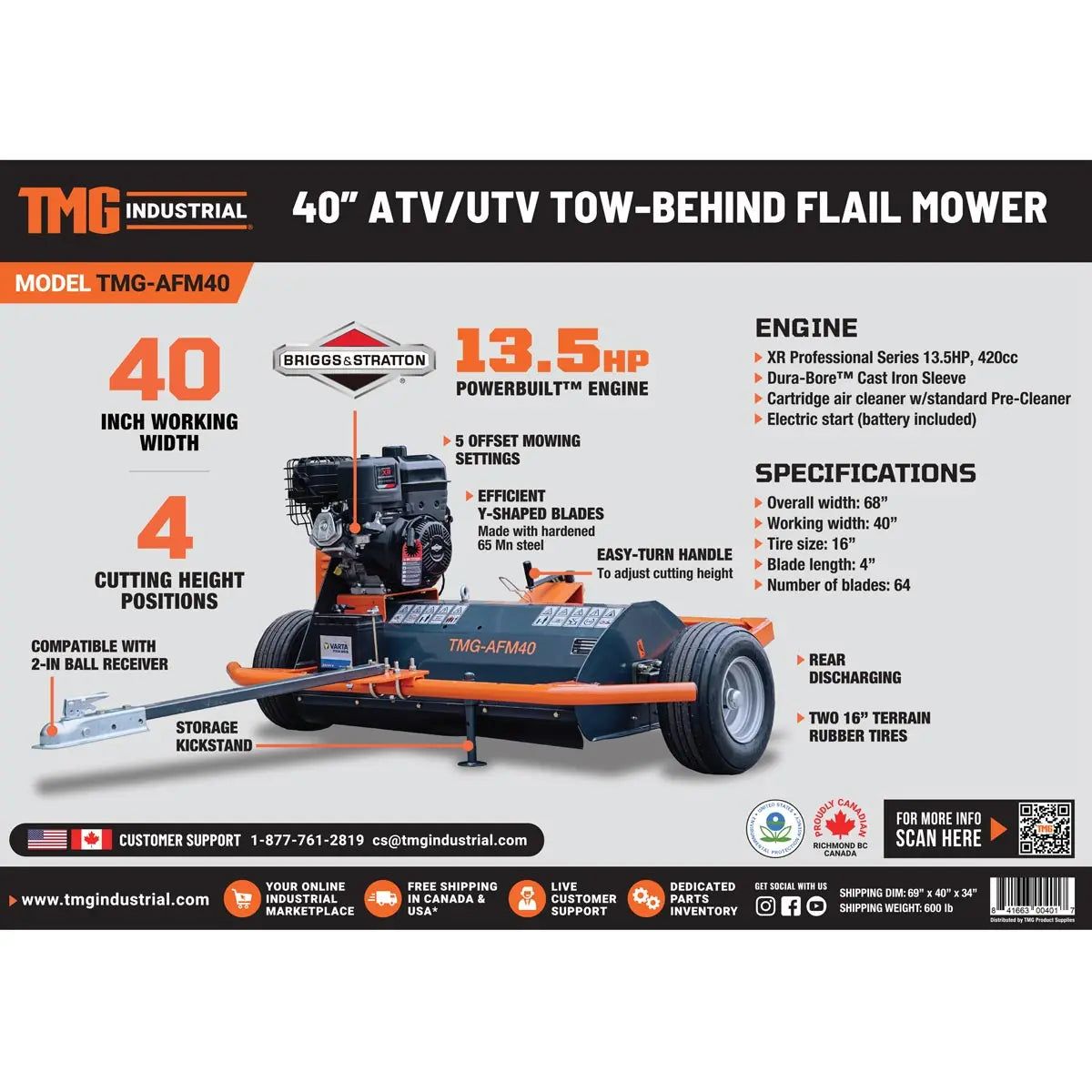

SPECIFICATIONS +
  • Drive path width: 68”
  • Working width: 40”
  • Cut capacity: up to 15” grass height
  • Adjustable mowing height: 1-1/4“ to 6-3/4”
  • Offset distance in driving direction to the left: 51”
  • Offset distance in driving direction to the right: 51”
  • Blade length: 4”
  • Number of blades: 64
  • Ground clearance: 6”
  • Max rotor speed: 3200 RPM
  • Tire size: 16”
  • Work efficiency: 0.5 - 0.65 acre/hour
  • Compatible with 2” ball receiver 
  • Storage kickstand

Engine:

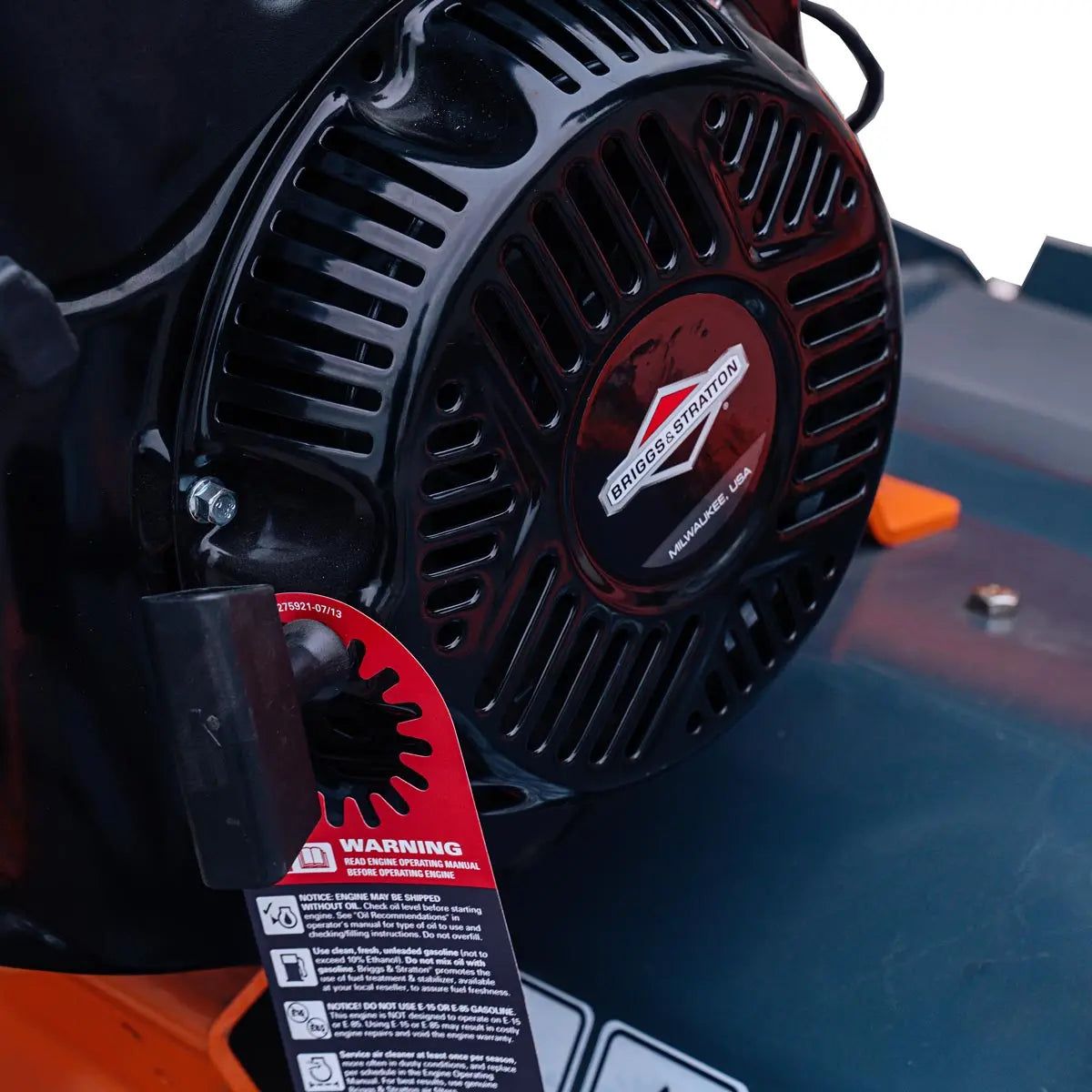

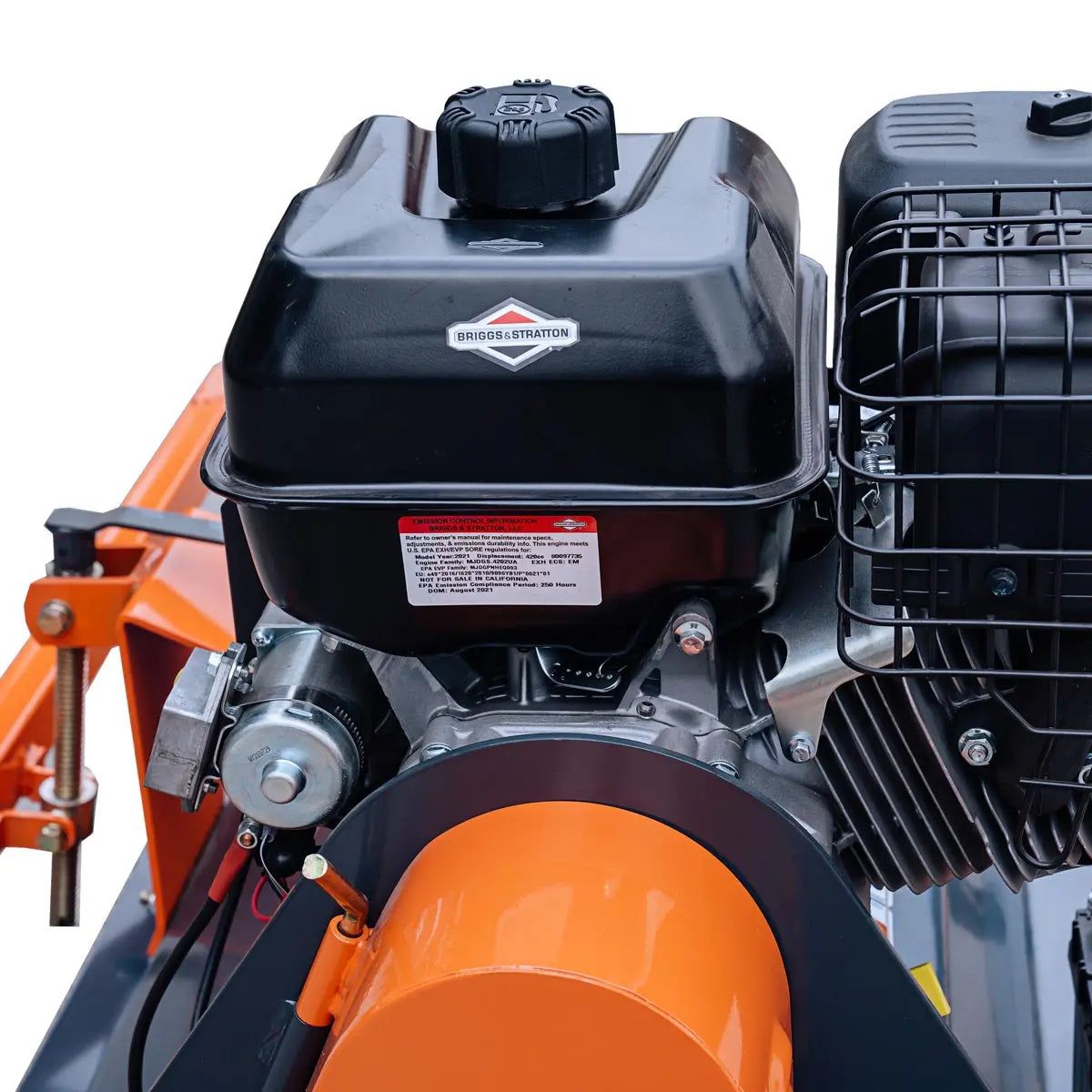

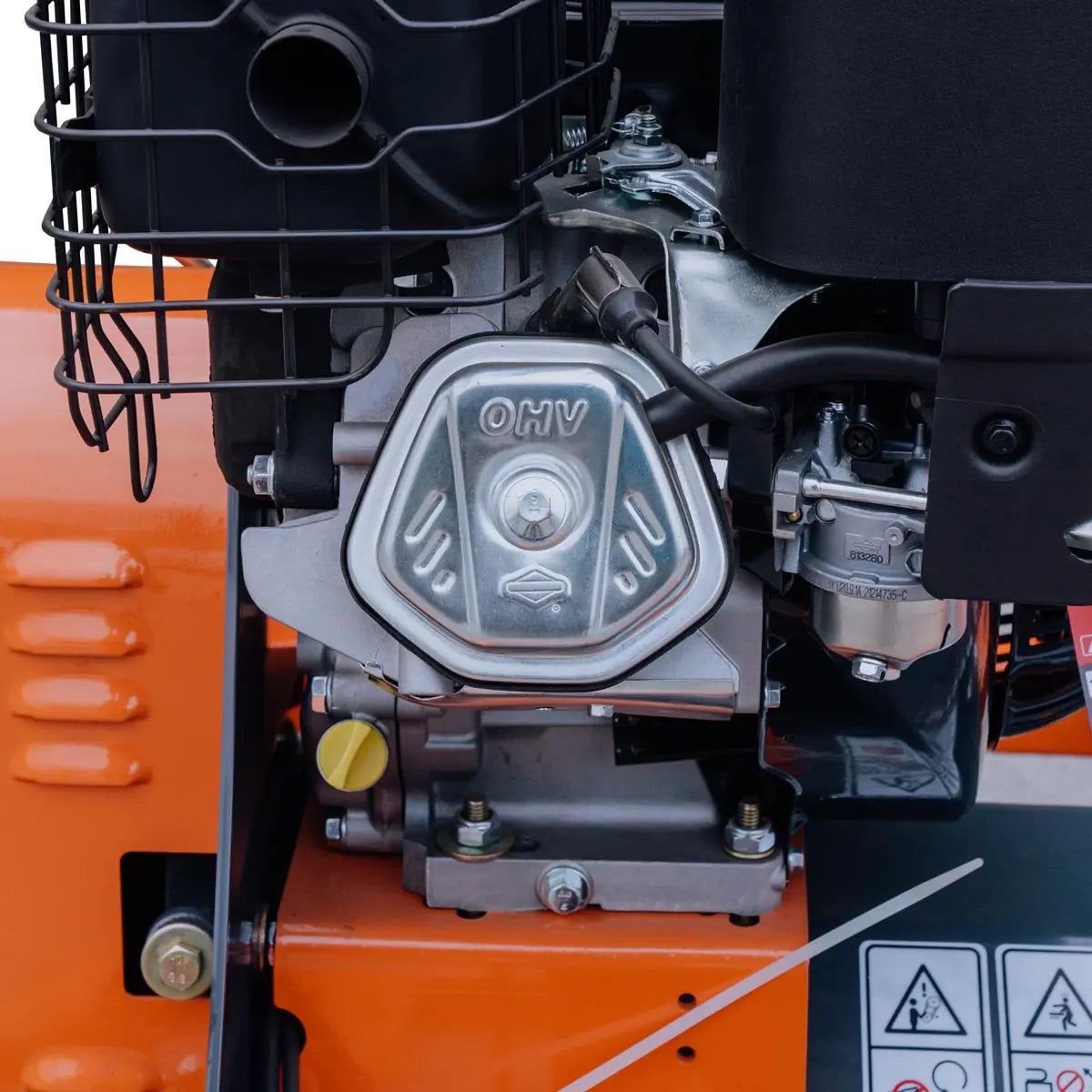

  • Briggs & Stratton XR Professional Series, 13.5 HP, 420 cc
  • Dura-Bore™ Cast Iron Sleeve
  • Cartridge air cleaner with standard pre-cleaner
  • Electric start (battery included)
SHIPPING INFO +

The order will ship from one of our main warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 69” x 40” x 34” (L x W x H)
  • Shipping weight: 725 lb
