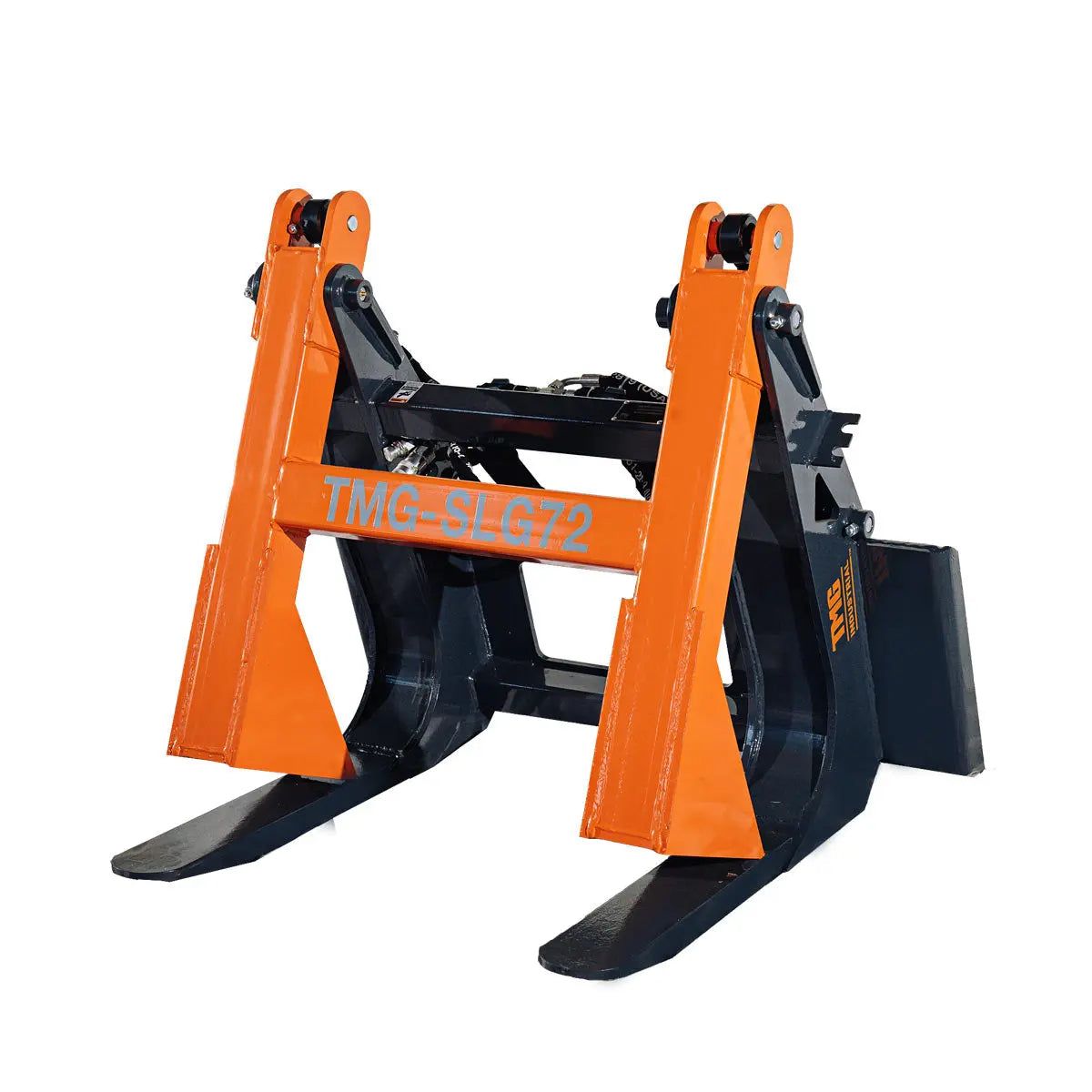

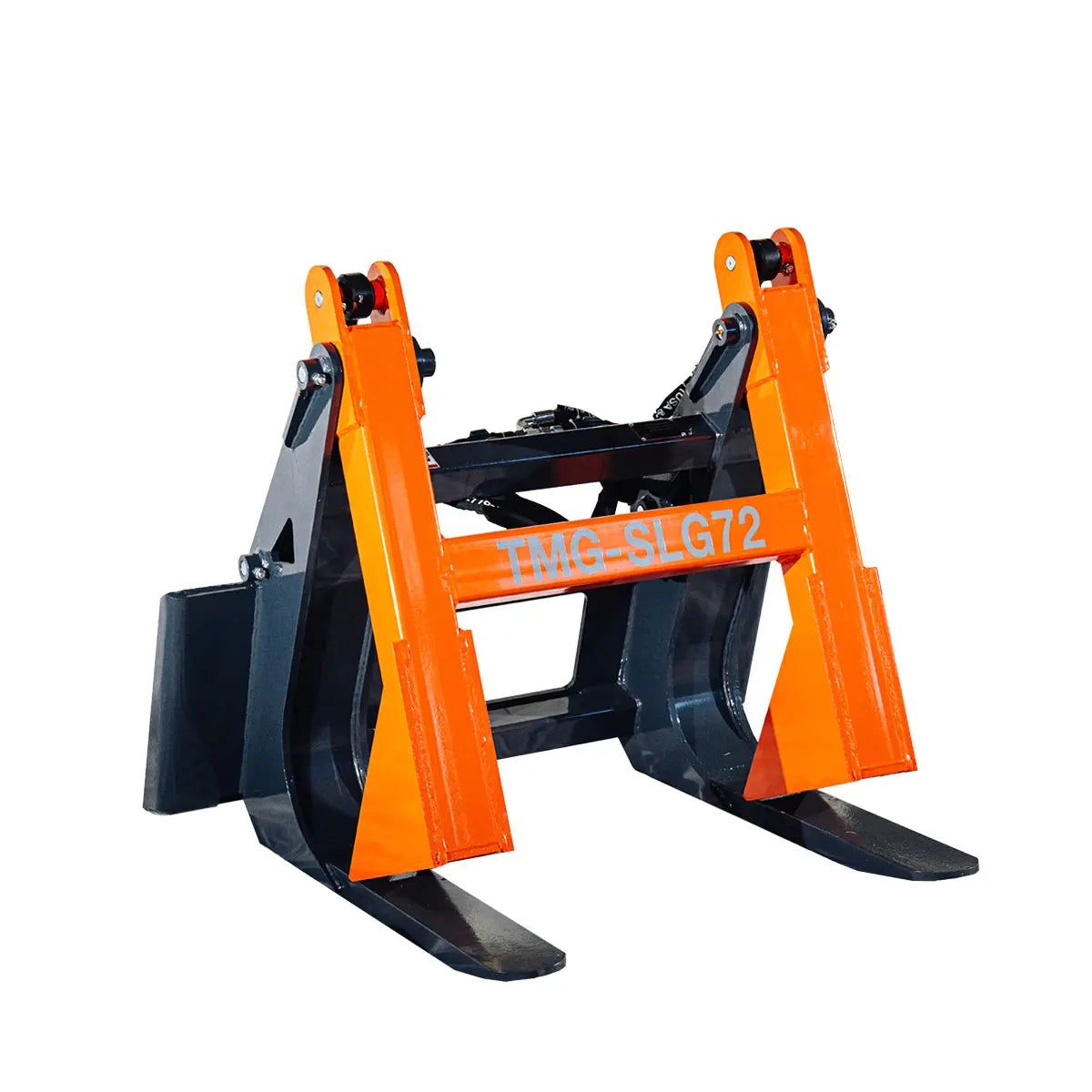

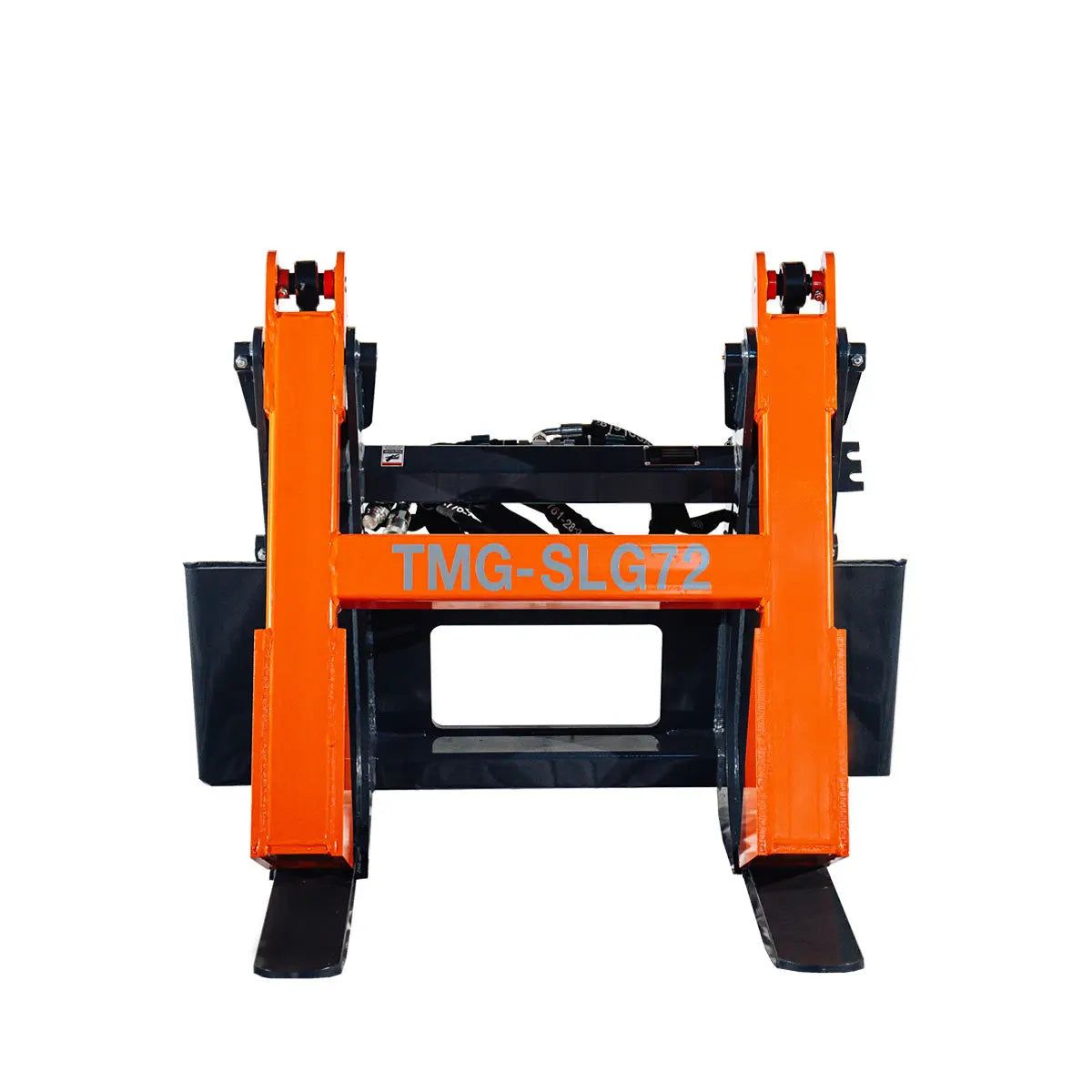

46" Skid Steer Log Grapple Attachment, 36" Claw Opening, 6400 lb Grap Capacity, TMG-SLG72
$3,099.00
- Working width
- 46in
- Machine size
- 30-75HP
- Rated capacity
- 6400lb
- Hydraulic flow
- 18-25GPM
Overview
This 46 in. log grapple turns a skid steer or compact track loader into a log and debris handler for forestry, recycling, scrap sorting, demolition cleanup and farm work. The flat bottom glides over the ground without tearing it up, and the claw clamps down hard on bundles that a bucket would only push around.
What it does
- Holds loads up to 6,400 lb with a twin cylinder claw arm.
- Opens to 36 in. across a 46 in. working width.
- Lets dirt sift out through a double tine bottom.
- Glides on a flat bottom that leaves the surface undisturbed.
- Greases at the pins and bushings for routine upkeep.
What your machine needs
Rated for 30-75 HP machines. Your machine needs a universal skid steer quick attach plate and an auxiliary hydraulic circuit delivering 18-25 GPM; the claw works at 3,000 psi. Hydraulic hoses and flat-face couplers are included.
Features
-
6,400 lb grapple capacityA claw arm on two hydraulic cylinders holds logs, brush, rock and scrap up to 6,400 lb.
-
36 in. claw openingThe claw opens wide for bundles and logs, then clamps down under 3,000 psi of hydraulic pressure.
-
Open end, double tine bottomThe open ends take long material, and loose dirt drops out through the tines.
-
Hoses and couplers includedHydraulic hoses and flat-face couplers come with the grapple.
-
Greasable pins and bushingsRoutine greasing keeps the pivots in good working order.
Specifications
- Working width
- 46 in
- Machine HP
- 30-75 HP
- Mount
- Universal skid steer quick attach
- Hydraulic flow
- 18-25 GPM
- Rated capacity
- 6,400 lb
- Operating pressure
- 3,000 psi
- Opening
- 36 in
In the box
- Flat-face couplers
- Hydraulic hoses
Before you order: your machine
Most returns come down to a missing coupler or a mismatched mount. Here is everything this attachment expects from your machine.
- Machines
- Skid steer, Compact track loader
- Mount
- Universal skid steer quick attach
- Machine power
- 30-75 HP
- Auxiliary hydraulics
- Required
- Hydraulic flow
- 18-25 GPM
Not sure about your machine? Email info@farranmotors.com with the make and model before you order.
- Universal quick attachMounts to the universal quick attach plate. Check that your machine has one before ordering.
- Machine sizeRated for 30-75 HP machines.
- Auxiliary hydraulicsNeeds an auxiliary hydraulic circuit on your machine at 18-25 GPM.
- Hoses and couplers includedShips with flat-face couplers.
Shipping & returns
- Shipping
- Free freight, contiguous US
- Ships to
- Contiguous US. Not Alaska, Hawaii, Puerto Rico, other US territories or APO/FPO addresses.
- Method
- LTL freight, palletized
- Handling time
- 1-2 business days
- Transit
- Typically 3-7 business days
- Delivery
- Curbside, by appointment
- PO boxes
- Not available
How freight delivery works
Freight does not come by mail truck. Here is what happens after you order, so nothing surprises you on delivery day.
-
You orderAnswer four delivery questions in the cart. Takes half a minute.
-
You confirmWe email your delivery plan. One tap to confirm, or fix anything before it ships.
-
It shipsLeaves the warehouse in 1-2 business days on a pallet.
-
Carrier books a windowIf you asked for a call-ahead, the freight line phones you to book a delivery window.
-
Curbside dropLiftgate lowers it to the ground if you have no dock or forklift.
Returns
Damaged on arrival? Note it on the delivery receipt, take photos and contact us within 48 hours of delivery. Change-of-mind returns need Change-of-Mind Returns protection added to your order: the item must be unused, in its original packaging and within 30 days of delivery, and you pay the return freight.
Questions buyers ask
A 30-75 HP skid steer or compact track loader with a universal quick attach plate and auxiliary hydraulics delivering 18-25 GPM.
Hydraulic hoses and flat-face couplers.
Large items ship by LTL freight on a pallet. It is delivered curbside. If you asked for a call-ahead in the cart, the carrier phones you first to book a window. If you have no forklift or dock, the driver uses a liftgate to lower the crate to the ground.
Shipping damage is covered when you report it within 48 hours of delivery, with photos. Defects are handled under the manufacturer's warranty. Add change-of-mind returns at checkout and you can send it back unused, in its original packaging, within 30 days of delivery. You pay the return freight.
