6-9 Ton Excavator/Backhoe Hydraulic Breaker, Quick Change (Q/C) Lugging, 3" Moil Point Chisel, 1030 J Impact Energy, TMG-HB90Q

$3,989 $4,955.17

Key Features

  • Versatile attachment for construction, demolition & quarry operations
  • Compatible with 6 to 9 ton excavators & backhoes
  • Delivers 785 J of impact energy to smash through rocks & concrete
  • Quick-change (Q/C) lugging design for easy attachment & release
  • Nitrogen-charged operation for superior break force efficiency
Quality Products Delivered to Your Door
Handling fee applies to oversize items
Manufacturer warranty included
Extended coverage available
PRODUCT OVERVIEW +

The TMG-HB90Q Excavator/Backhoe Hydraulic Breaker is a powerful tool attachment that turns your machine into a versatile, multi-trade asset. Perfect for light and medium sized jobs. Capable of smashing through rock and concrete with 1030 J of impact energy, this hammer breaker has endless applications in industries like oil and gas, construction, logging, demolition, mining, tunneling and other quarry operations.

Compatible with 6 to 9 ton excavators and backhoes, the simple quick-change lugging profile makes for easy attachment and release so you can quickly get to work and focus on getting the job done. The 3" moil point chisel is made of hardened, industrial grade steel and is built to perform under the 1700-2500 PSI of pressure delivered through the breaker's hydraulic operating system.

Maximized power to weight ratio and a nitrogen-charged cell provide superior break force efficiency and long lasting, durable 500-900 BPM working action. A bottom tie rod bolted design allows for easy maintenance throughout the years, and the hammer's overall heavy duty construction means you'll be receiving a dependable product that is backed by our one year manufacturer warranty.

SPECIFICATIONS +
  • Operating weight: 770 lb
  • Working pressure: 1700-2500 PSI
  • Working flow: 13-24 GPM
  • Impact rate: 500-900 BPM
  • Impact energy: 1030 J
  • Chisel diameter: 3”
  • Hydraulic hose diameter: ½”

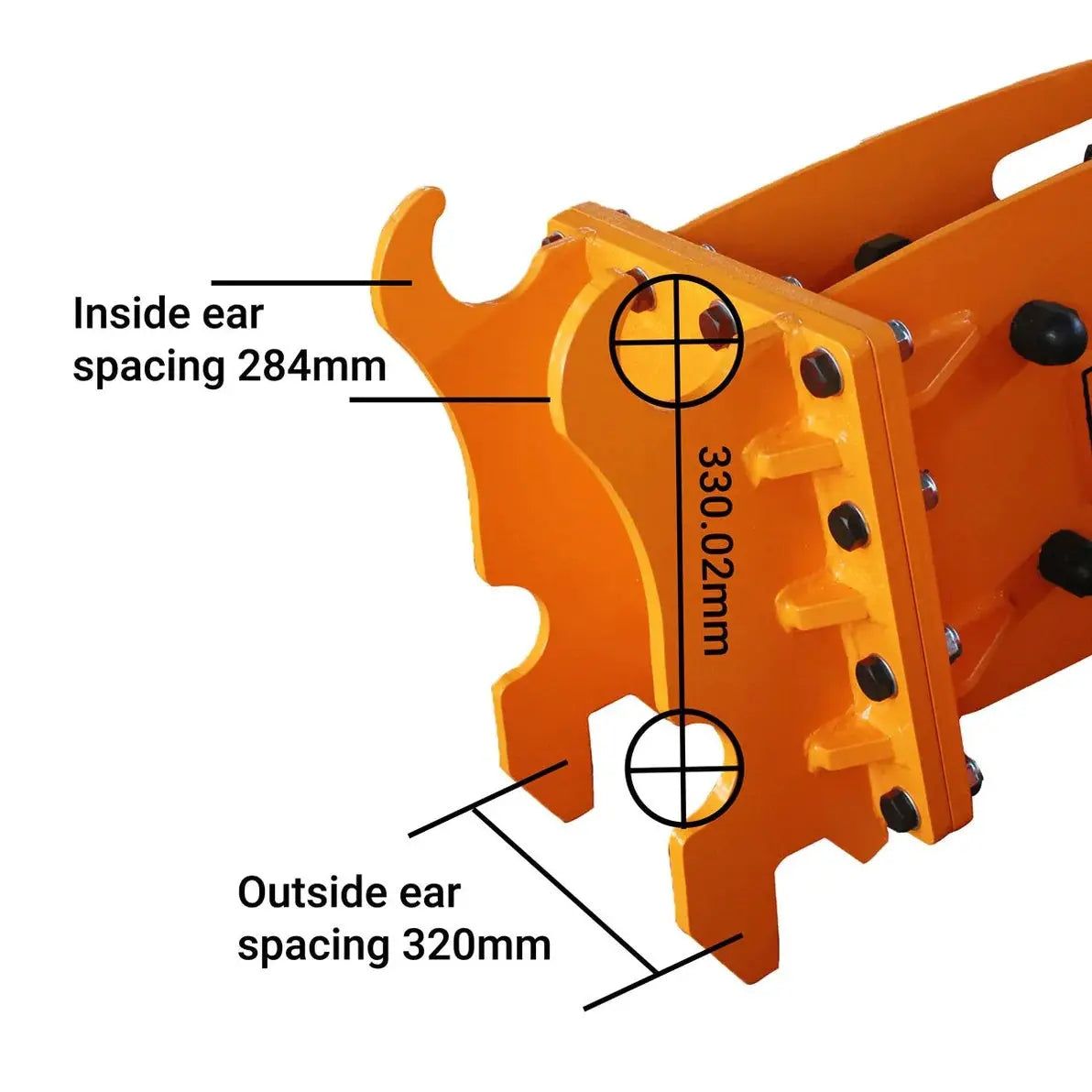

  • Ear spacing - inside: 11-¼”
  • Ear spacing - outside: 12-¾”
  • Pin center to center: 13”
  • Quick-change profile design

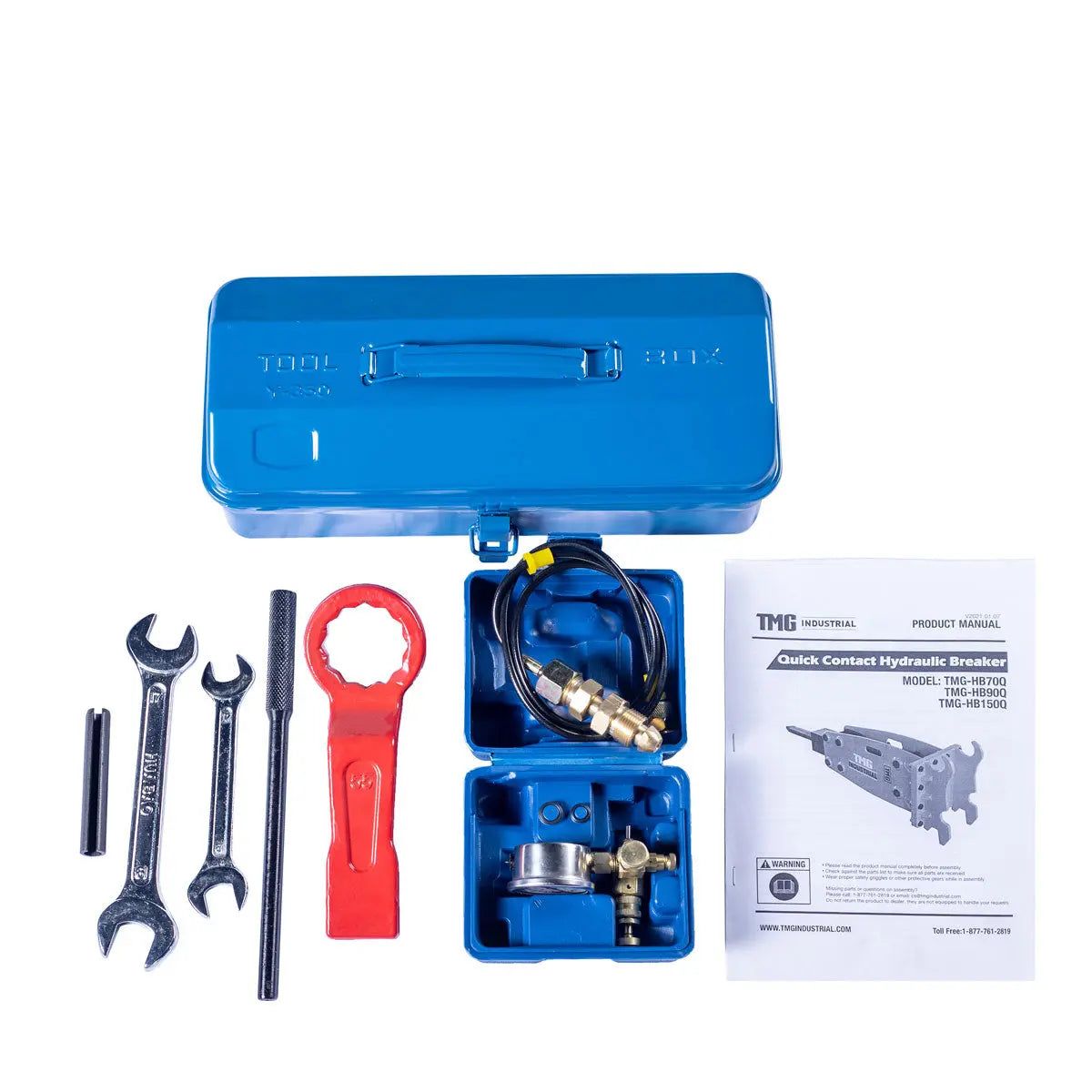

Includes:

  • (1) 3” Moil point chisel
  • (2) ½” Hydraulic hose with NPT fitting
  • (1) Nitrogen charge kit with CGA580 cylinder adaptor
  • (1) Service tool kit
SHIPPING INFO +

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 57” x 24” x 27” (L x W x H)
  • Shipping weight: 995 lb

Customer Reviews

Based on 5 reviews
60%
(3)
40%
(2)
0%
(0)
0%
(0)
0%
(0)
R
Rick Jones
So far so good.

Used it for 6 hours so far and it has worked awesome. Have it on a 80 kubota. Some rock was very hard and took longer but still got the job done.

R
Rob Beers
So far impressed

Have it hooked up to a 7.5 tonne link belt, only used it 5 hours so far but impressed so far .

T
Travis
8 ton shovel breaker

Used on CAT 308, have had it over a month and works great. Hits hard and gets the job done. Very good for the price

R
Ryan Zloty
Haven't used it yet. But.

So far everything showed up and got delivered. Still working on adapters for the units hydraulic hoses to connect to my machine. Came with oil in the unit. No where can I find if the unit comes nitrogen charged or if I have to do it. Unit is still in the fully welded crate. Maby ill find a sticker when i flip the unit. Nothing that i saw in manuel. Will have to update as I go. It's winter now so won't be testing it till the spring.

B
Bryan Ford
More solid than expected

I thought I may have lost out in some areas saving so much money but it didn’t disappoint. I did have to purchase hydraulic hoses about 1’ longer for my Kubota and had to do some custom cutting on the ears to fit my machine… no one could tell me if it would fit my quick release!! The sales team also said it didn’t have blank fire protection… I’m glad to report that it indeed does.
