- Rated capacity
- 330 lb (149.7 kg)
- Lift range
- 4.3 to 42.9 in
- Operation
- Manual geared winch
- Wire rope breaking tension
- Over 990 lb
Overview

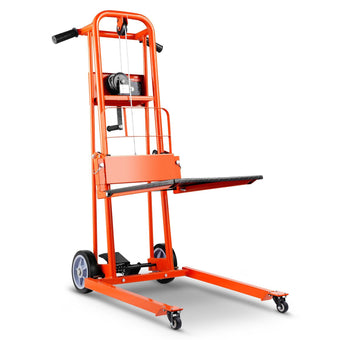

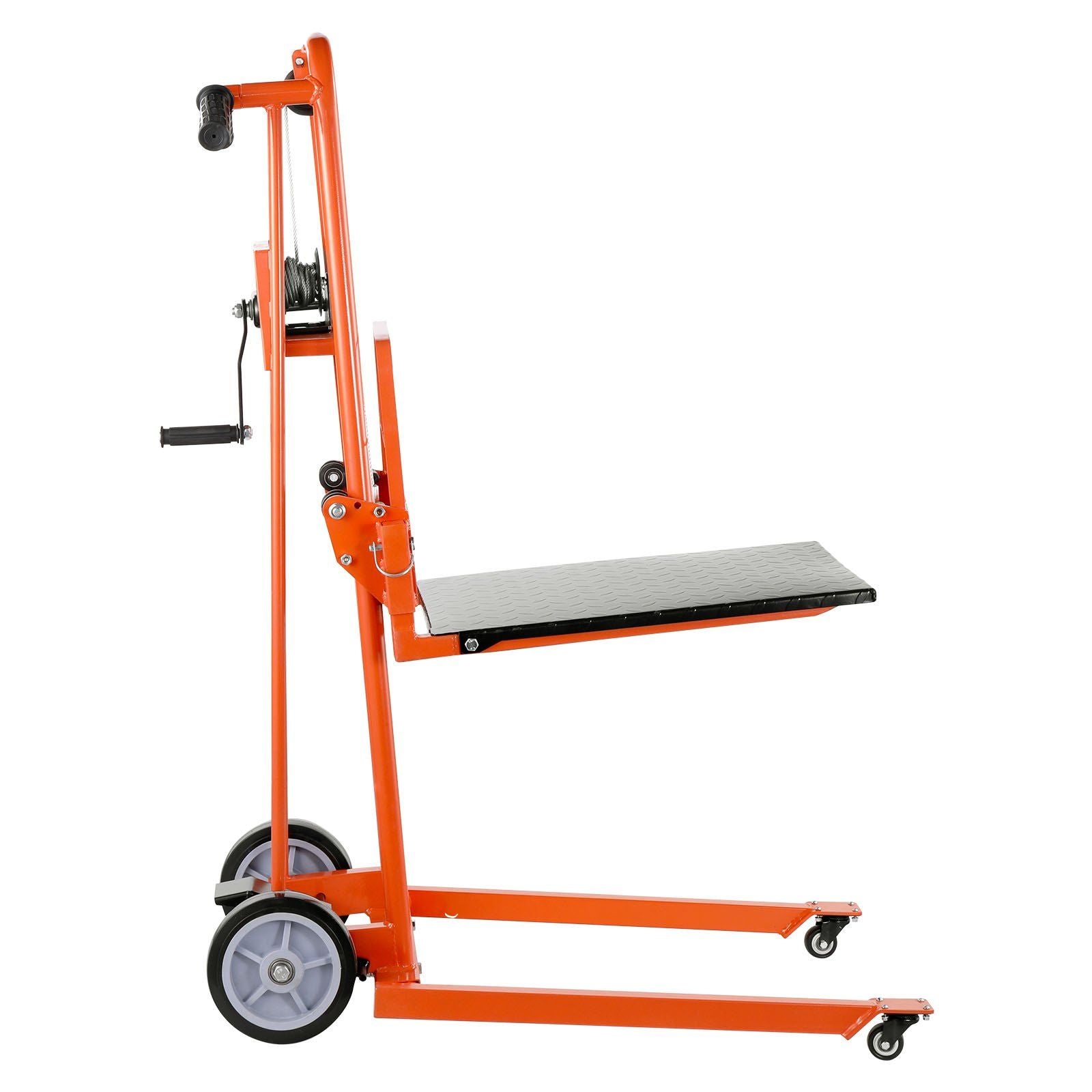

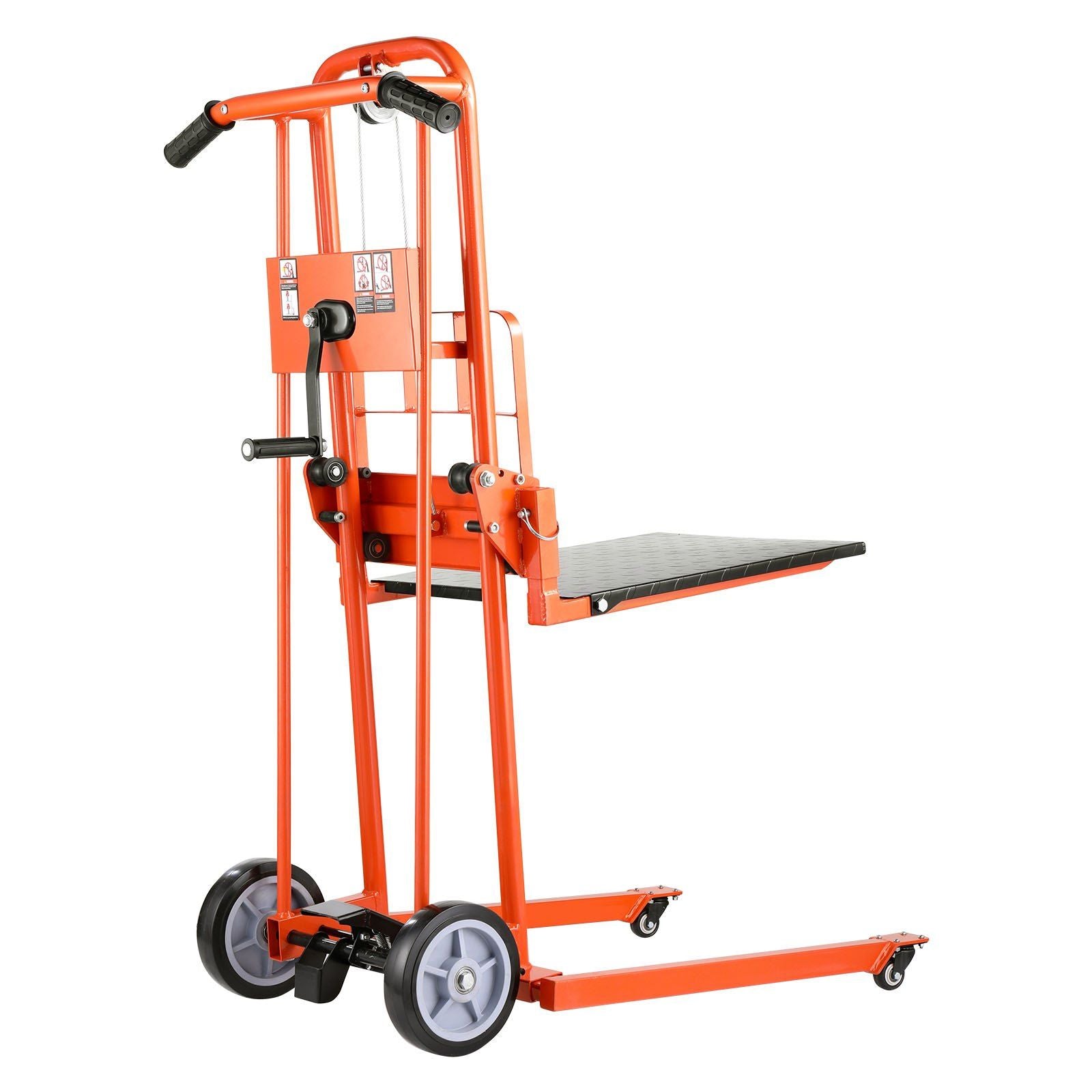

This manual stacker is a hand-crank lift and a rolling dolly in one. It is rated for 330 lb, raises its lift plate from 4.3 in to 42.9 in with a geared winch, and rolls on swivel casters, so one person can move stock across a warehouse, shop or store and set it on a shelf without a power outlet.
Features
-
330 lb capacityRated for up to 330 lb (149.7 kg) of boxes, parts or stock on the lift plate.
-
Lifts 4.3 to 42.9 inThe plate travels from just above the floor at 4.3 in up to 42.9 in, which covers floor level through mid shelf heights.
-
Geared hand winchA geared winch with a long crank raises the load with no cord or battery, so it works anywhere in the building.
-

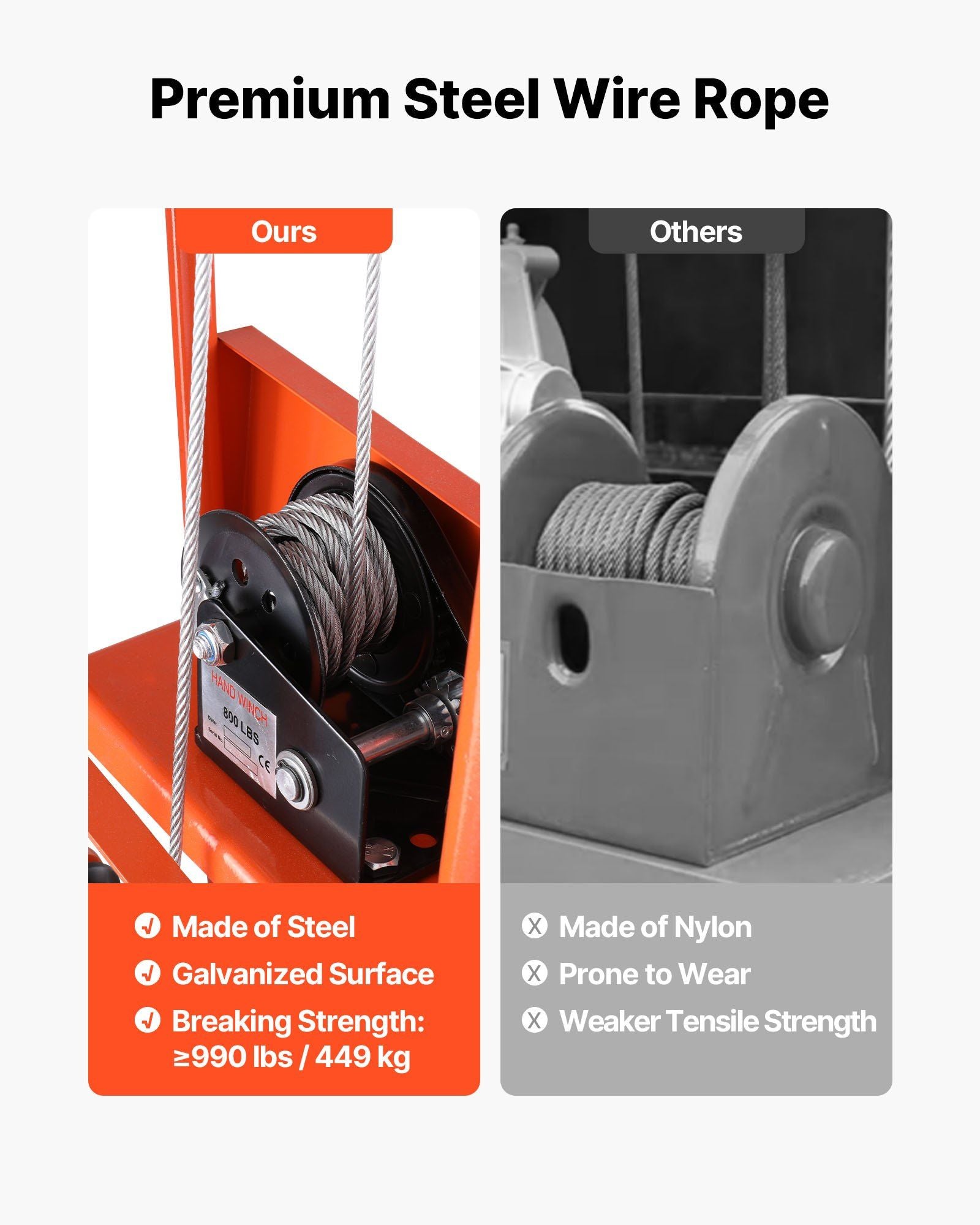

Galvanized wire ropeThe 45# steel wire rope is galvanized against rust and has a breaking tension above 990 lb (449 kg).
-

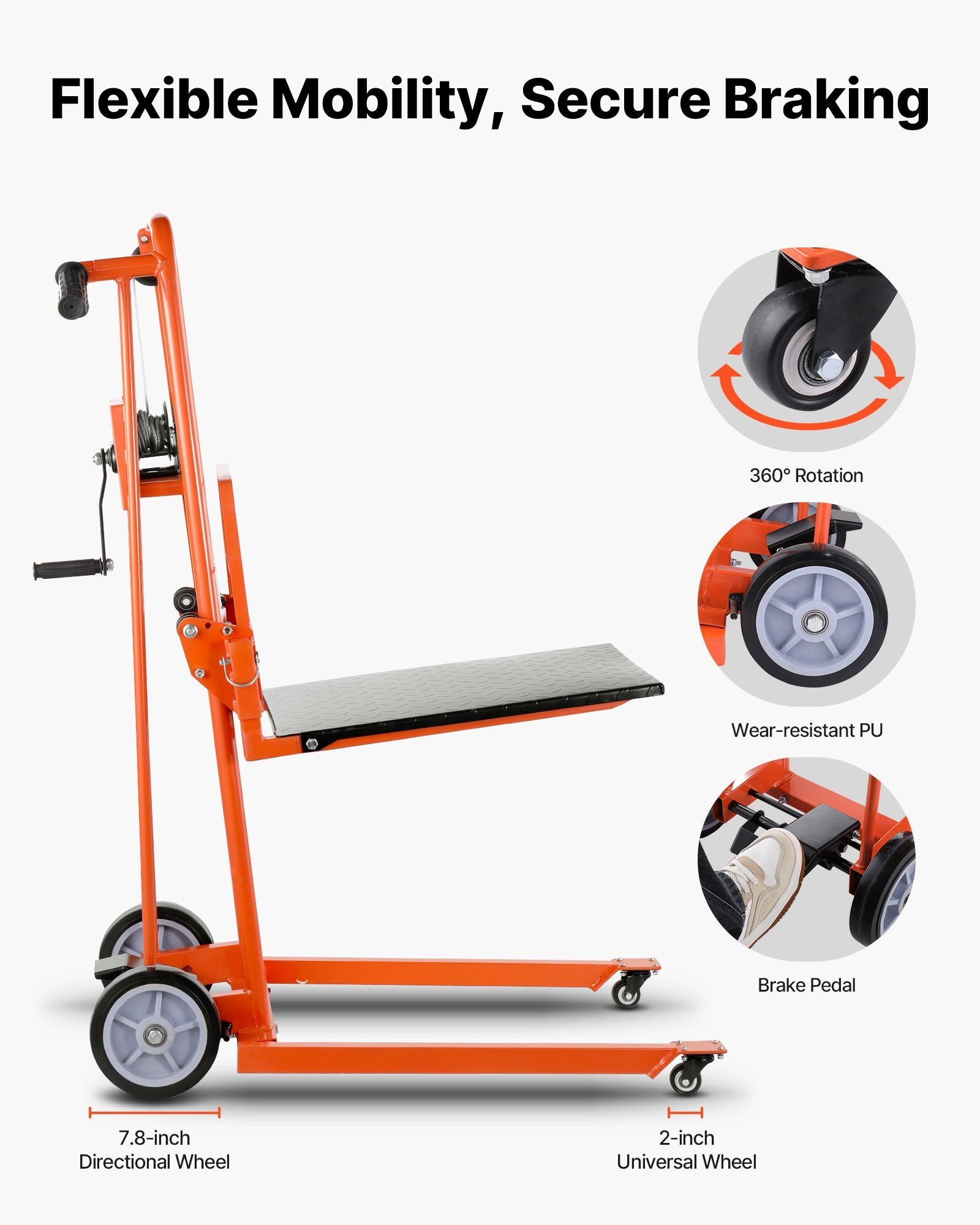

Swivel casters and brakesThe front casters swivel 360° for tight aisles, and the rear wheels have brakes to hold the stacker while you load.
Know the size before it ships.
Specifications
- Rated capacity
- 330 lb
Shipping & returns
- Shipping
- Free shipping to most US addresses
- Ships to
- Contiguous US. Not Alaska, Hawaii, Puerto Rico, other US territories or APO/FPO addresses.
- Method
- Parcel carrier
- Handling time
- 2-6 business days
- Transit
- Typically 5-10 business days
- PO boxes
- Not available
Returns
Shipping damage reported within 48 hours of delivery is covered. We don't offer change-of-mind returns as a separate service: cancelling before it ships costs a 3% card processing fee, and after it ships a 15% restocking fee plus the return freight.
Questions buyers ask
The lift plate travels from 4.3 in to 42.9 in (110 to 1090 mm). If you need more height or capacity, ask us about the larger stacker we carry.
No. You raise and lower the plate by turning the hand-crank winch.
Welded Q235 carbon steel. The listing does not give the stacker's own weight, plate size or overall footprint.
