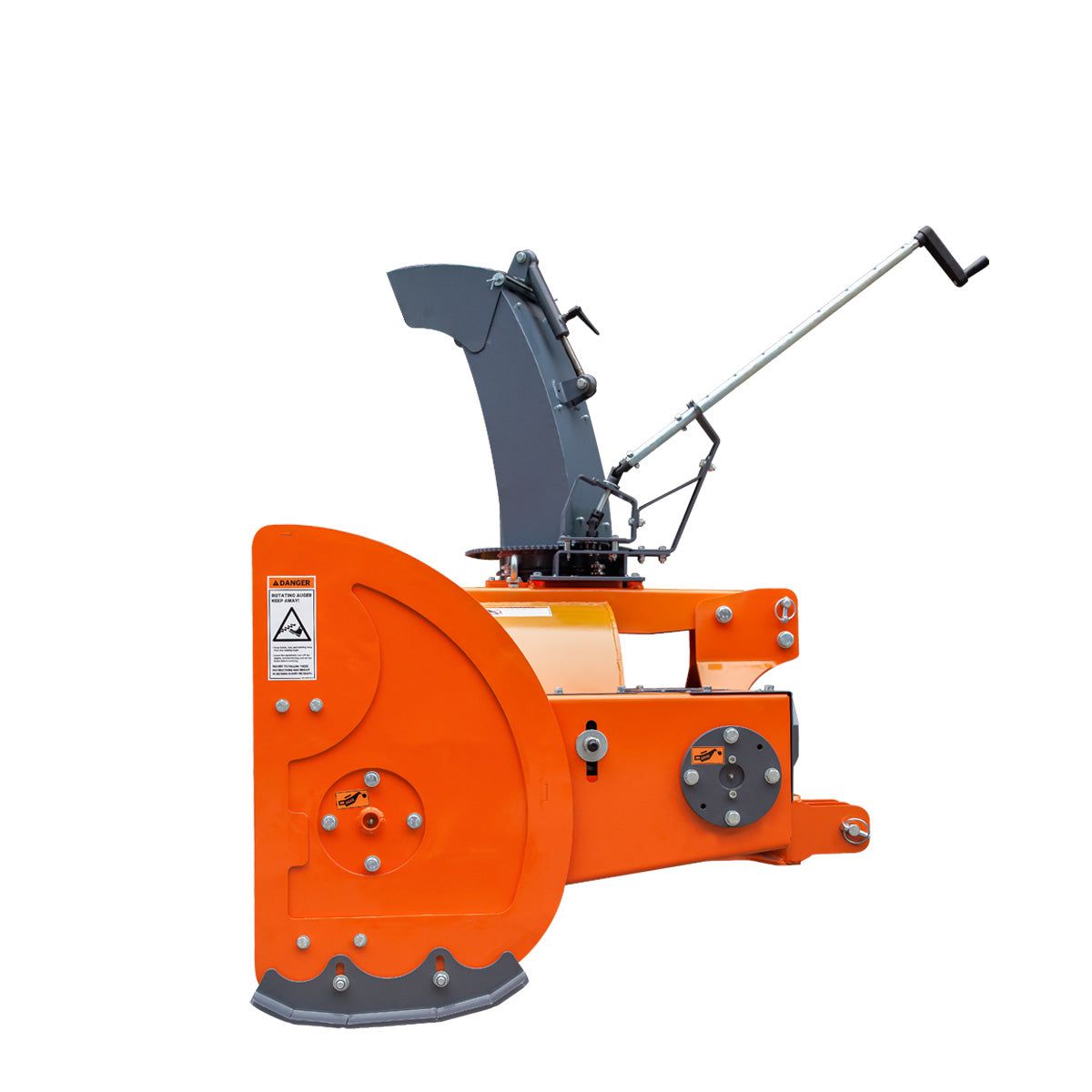

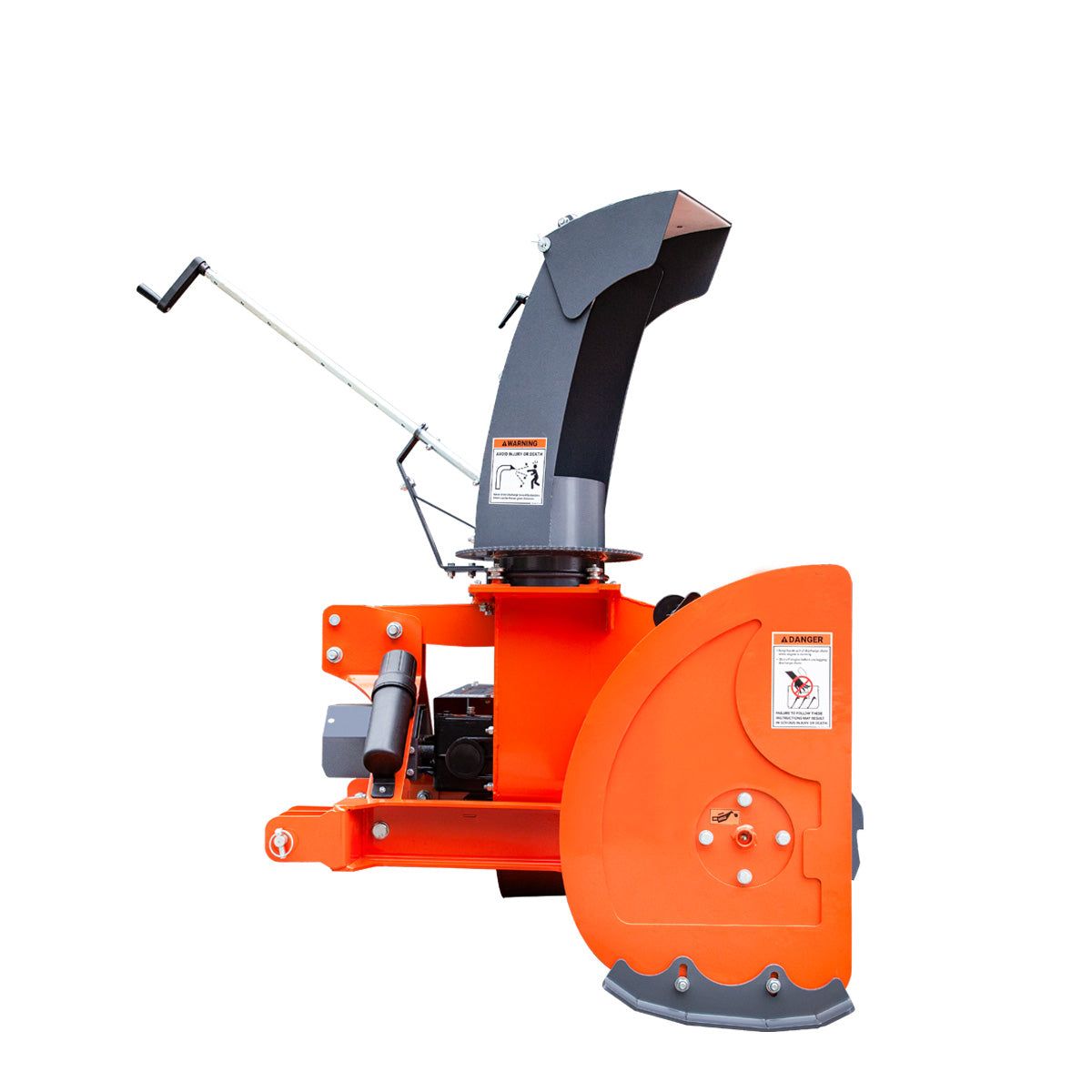

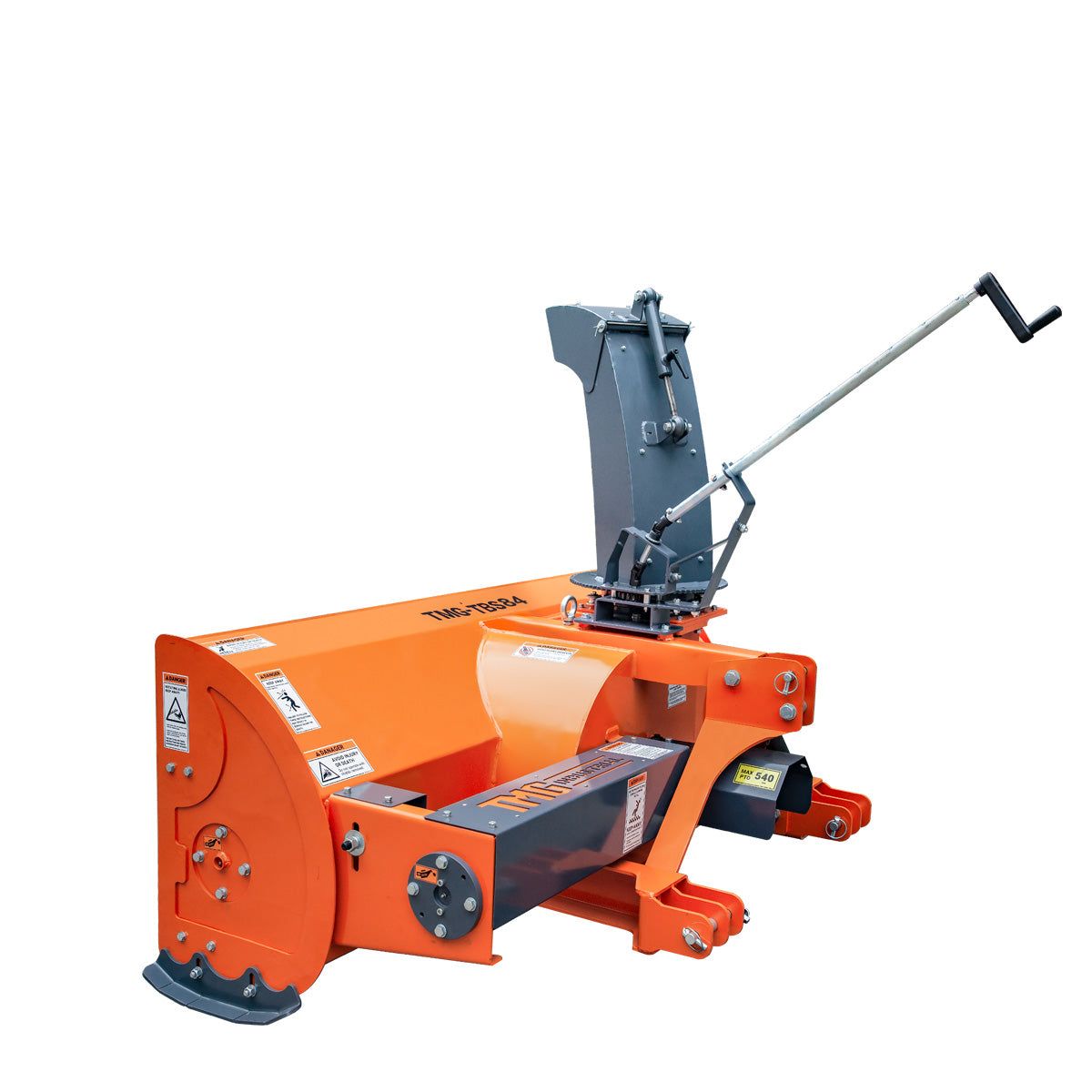

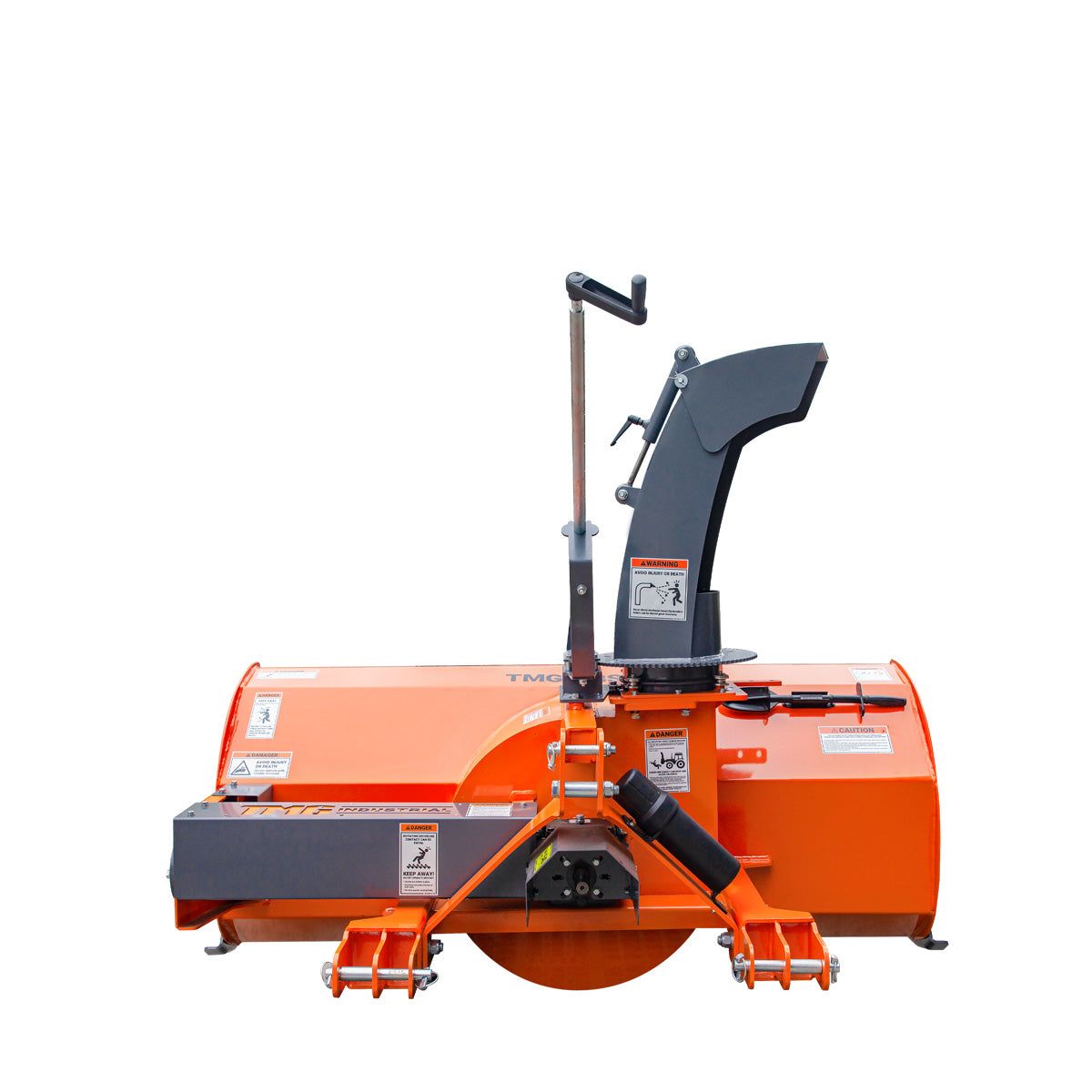

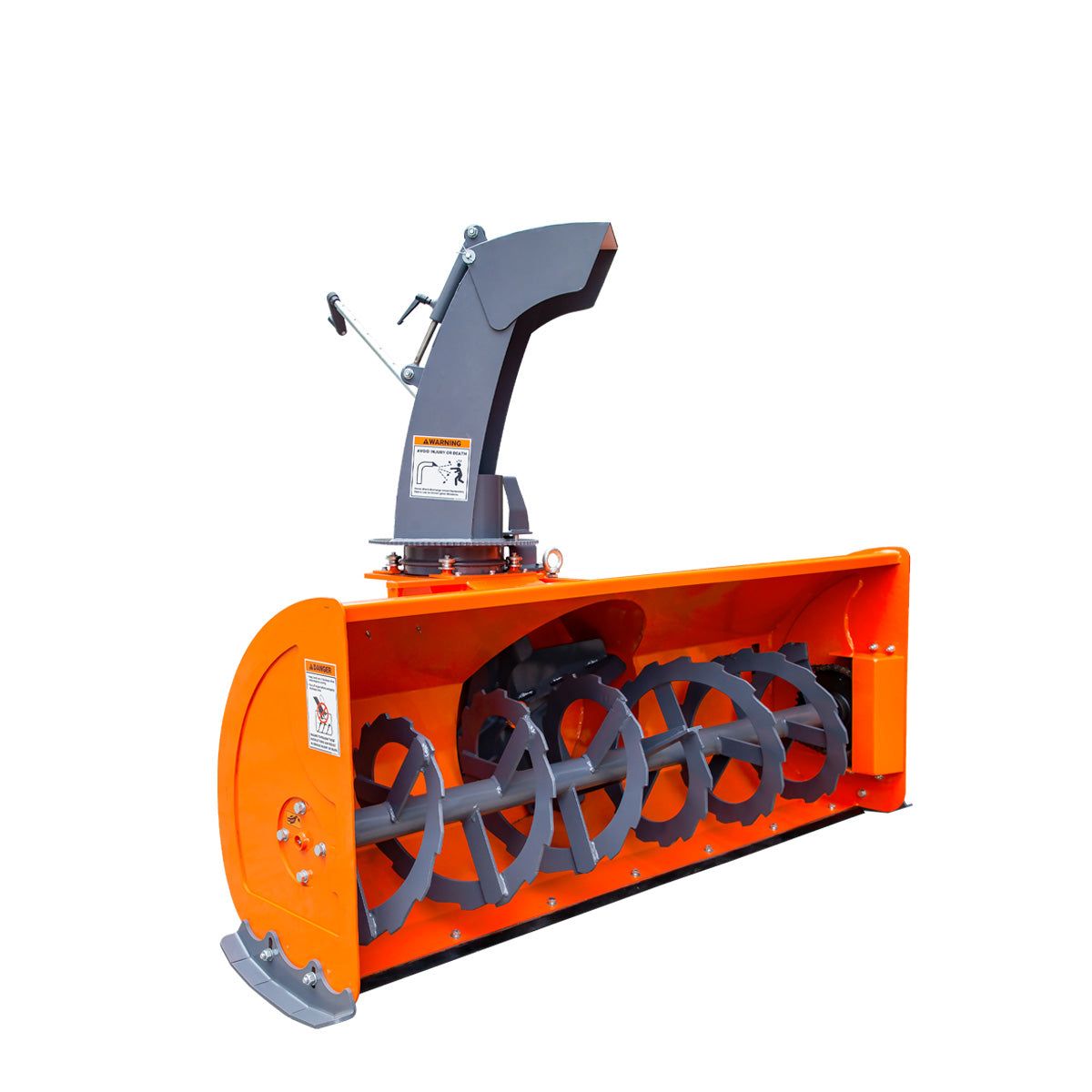

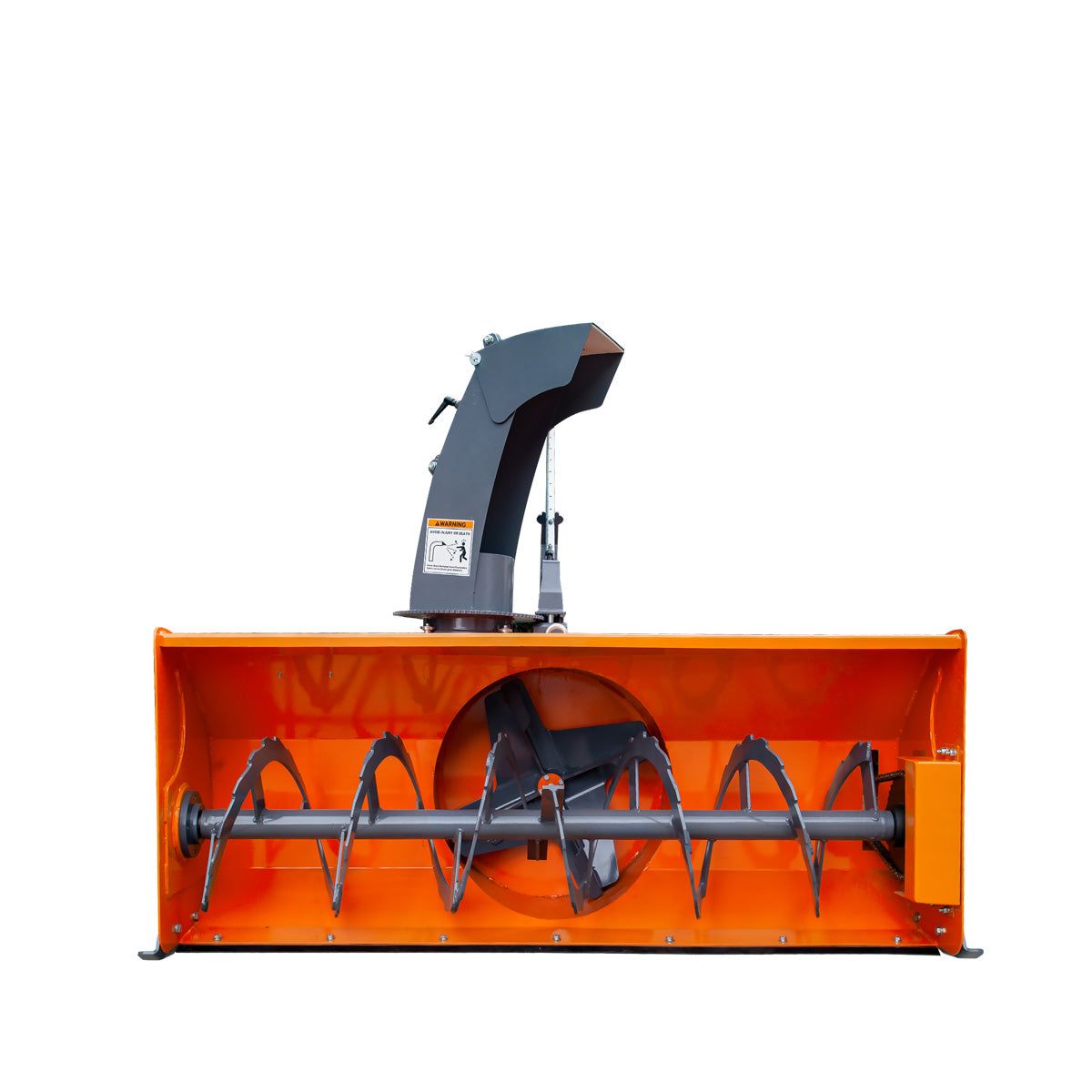

84" 3-Point Hitch Snow Blower, 25-90 HP, 24" Diameter Impeller, 360° Snow Chute, CAT 1 & CAT 2 Suspension, TMG-TBS84
Key Features
- 84” working width & Compatible w/25-90 HP tractors

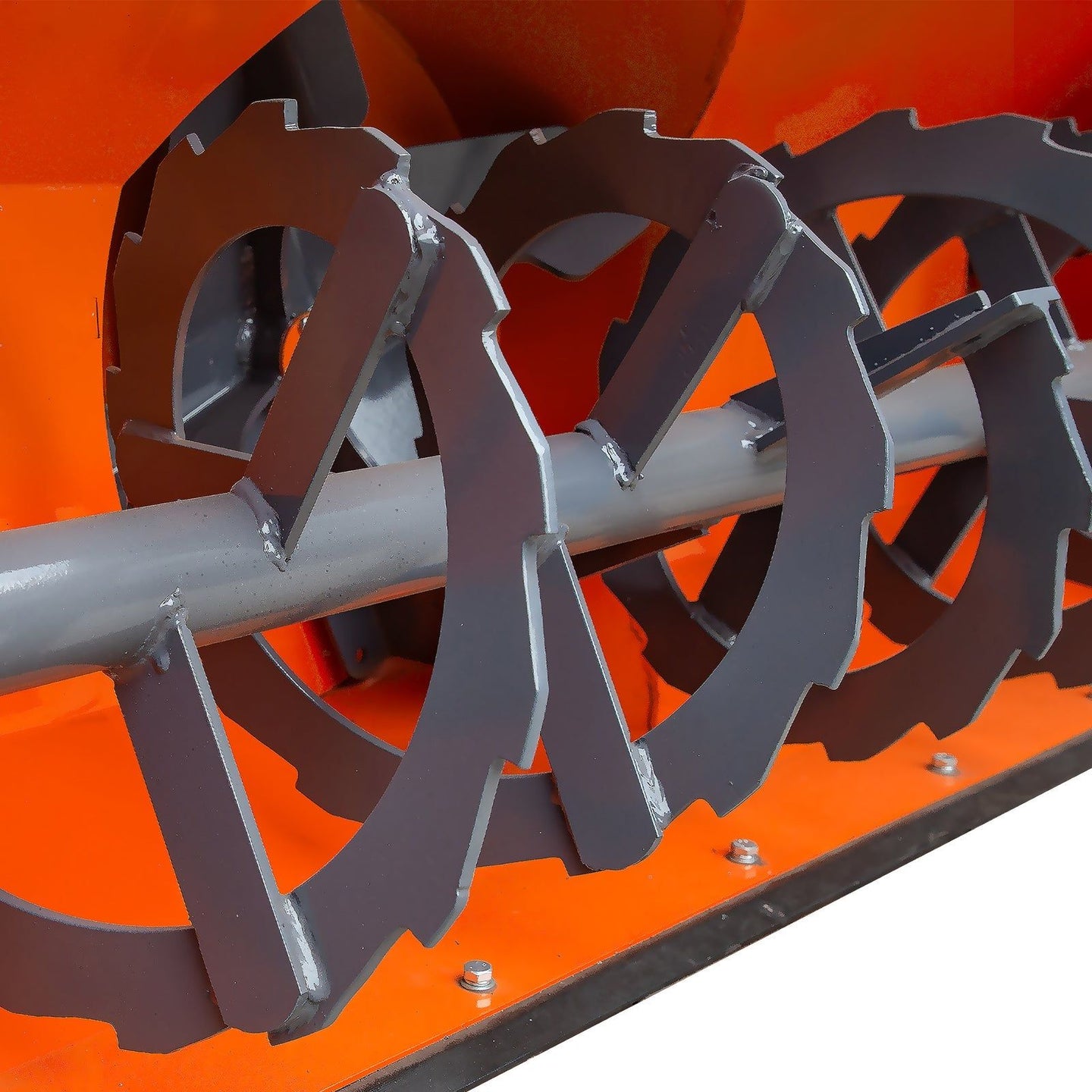

- Rugged steel auger w/serrated teeth
- 24” diameter impeller & 360° snow chute

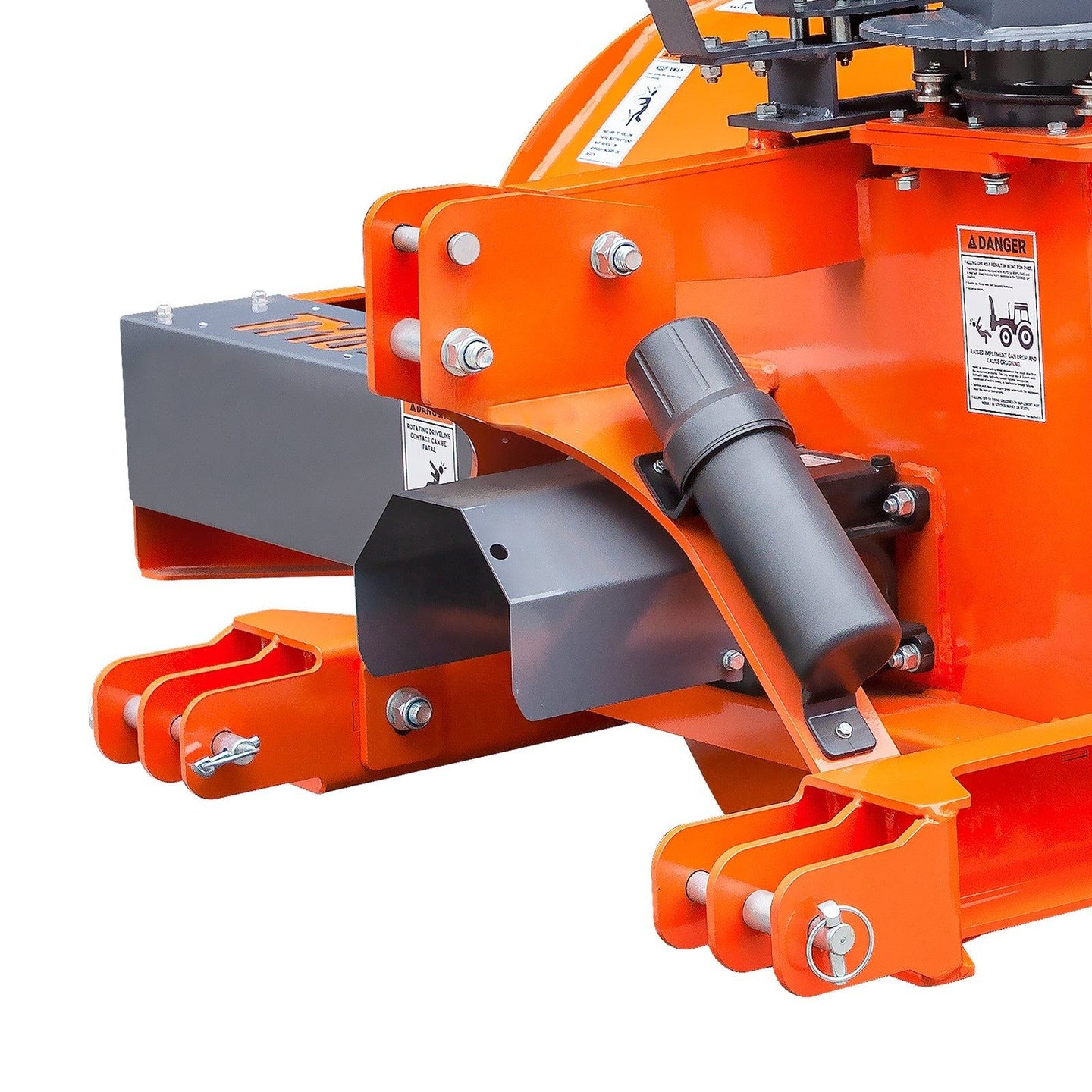

- CAT 1/CAT 2 suspension & ASABE quick hitch compatibility
- PTO drive shaft w/clutch protects gearbox from freezing damage
PRODUCT OVERVIEW +
The TMG-TBS84 3-Point Hitch Snow Blower Attachment is your ultimate solution for conquering winter's heavy snowfalls with ease. This robust attachment has a 84" working width and is engineered to tackle any snow clearing job. It features a rugged steel auger with serrated teeth to effortlessly carve through snow, crush compacted layers, and eliminate slush. All done for you without even breaking a sweat.
This attachment is built with durability in mind, featuring hardened snow shovel blades and boots to ensure long-lasting and reliable performance. You can easily adjust the skid shoe height to match various road conditions, and the large 24" diameter impeller throws snow far away from the path you're clearing. With its CAT 1 and CAT 2 suspension and ASABE AD730 quick hitch compatibility, assembly and hookup is a breeze, saving you precious time to help get ahead of the storm.

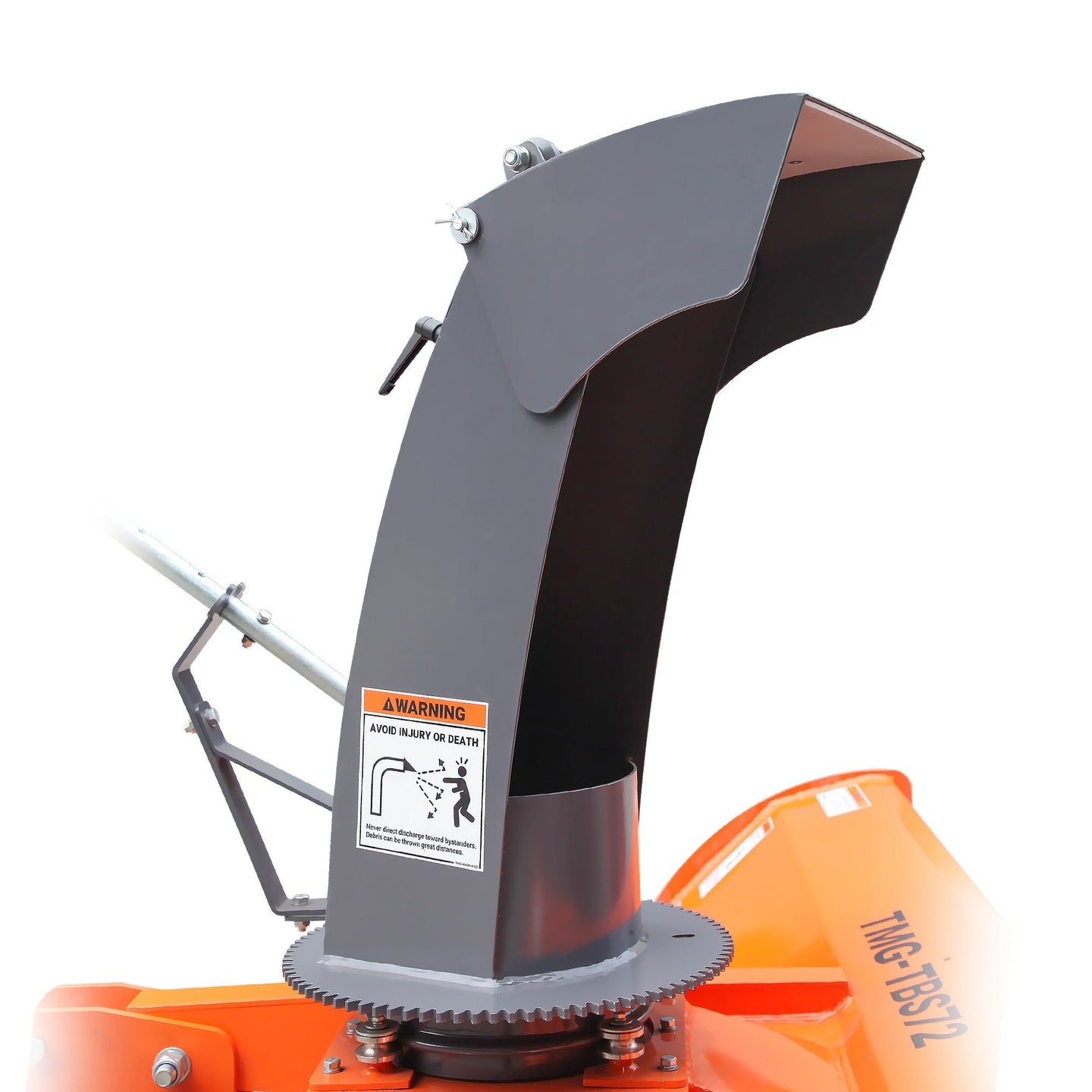

The rotatable and adjustable snow chute offers dynamic snow discharge in any direction. Its lightweight impeller design outshines traditional disk-shaped fans, while the splined connection between the fan and gearbox offers best in class reliability. This blower is compatible with 25-90 HP tractors and has a PTO drive shaft with clutch that protects against freezing damage.
We also carry this snow blower in other sizes: TMG-TBS48, TMG-TBS72
SPECIFICATIONS +
- Overall width: 87”
- Cutting width: 84”
- Overall length: 45”
- Overall height: 64”
- Cutting height: 28”
- Number of blades on impeller: 4
- Impeller diameter: 24”
- Impeller housing depth: 8”
- Auger diameter: 17-½”
- Discharge chute diameter: 9”
- Chute rotation degrees: 360°

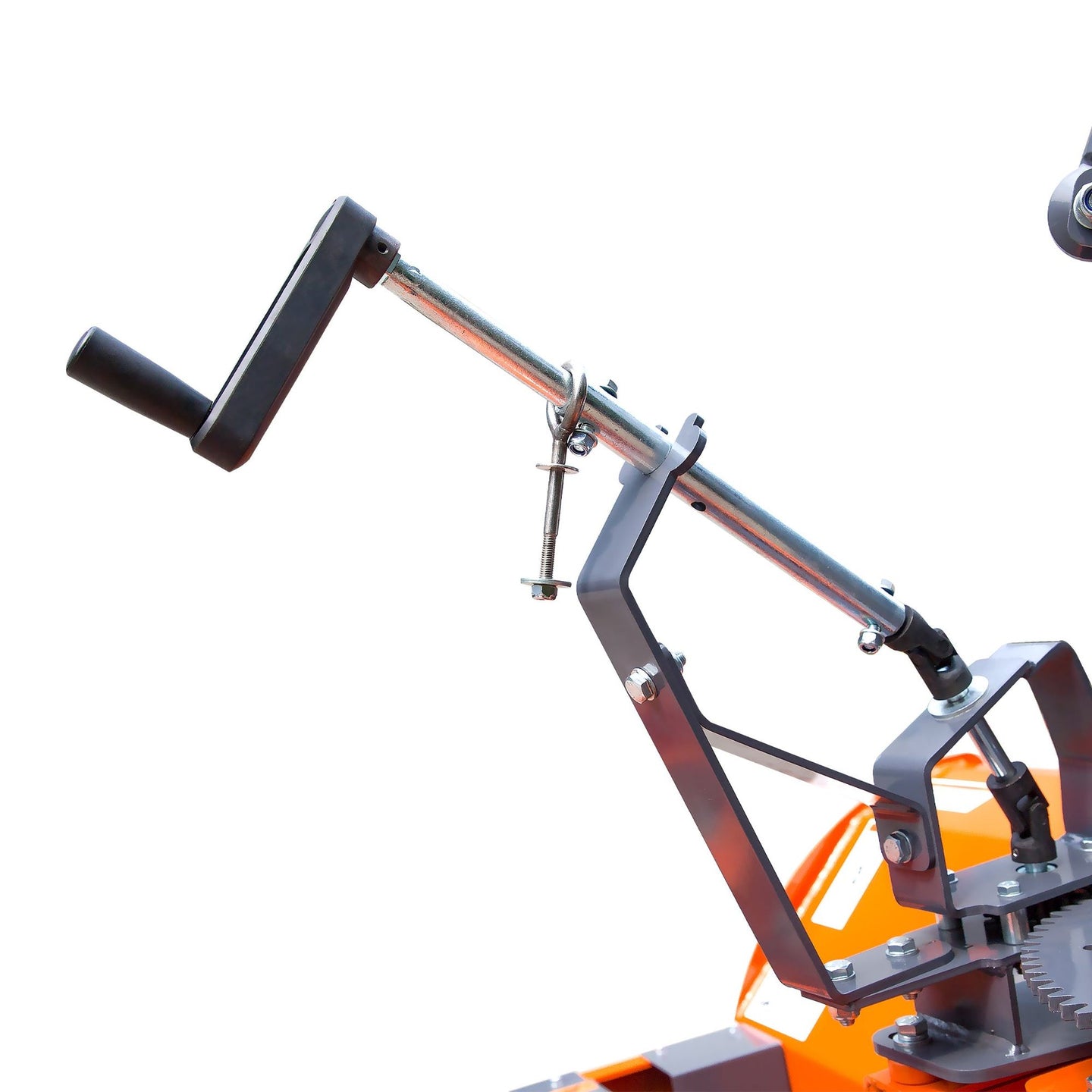

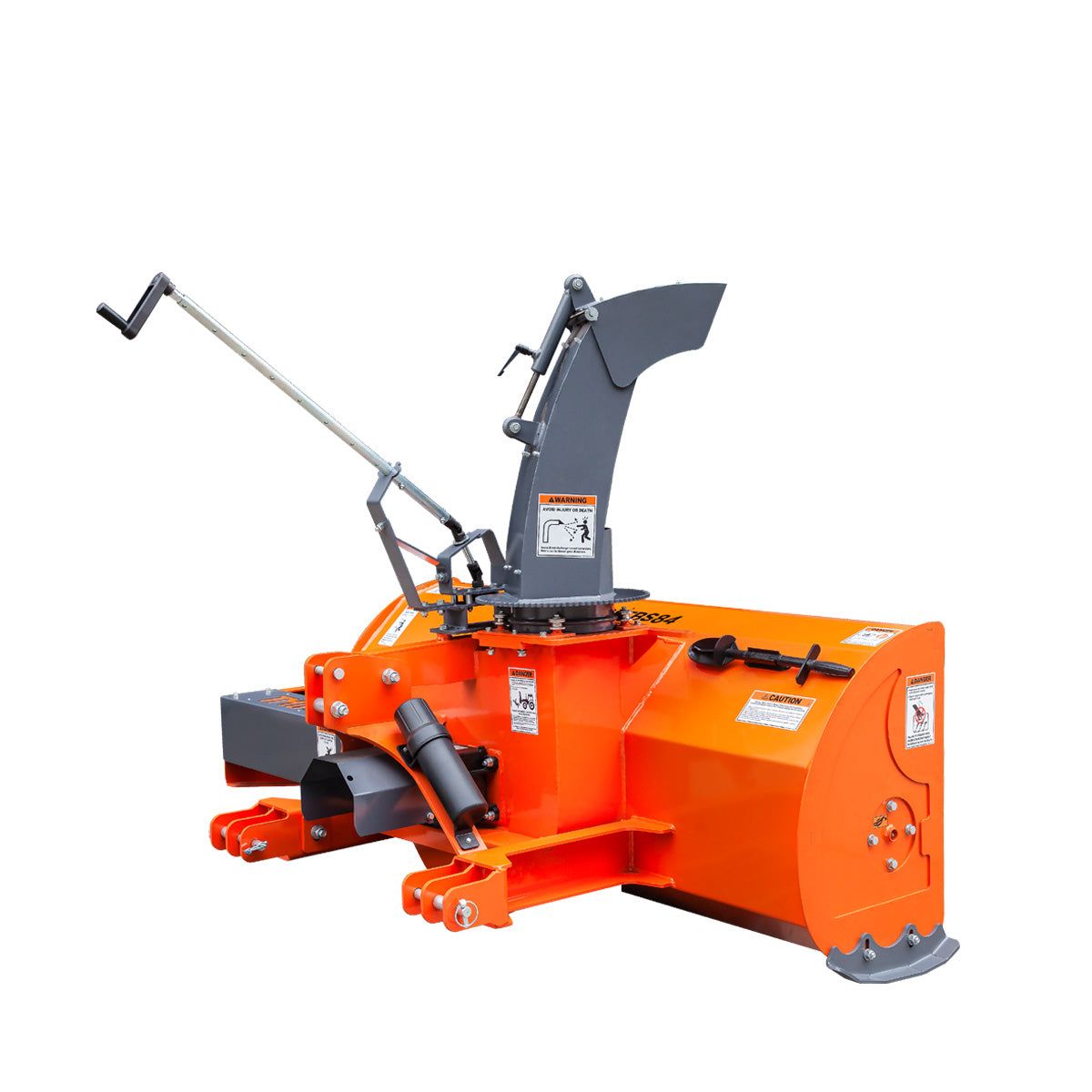

- Chute rotation: Hand crank from driver seat
- PTO input: 540 RPM
- Auger speed: 180 RPM
- Horsepower requirement: 25-90 HP
- Operating weight: 880 lb
- Adjustable chute deflector: Yes

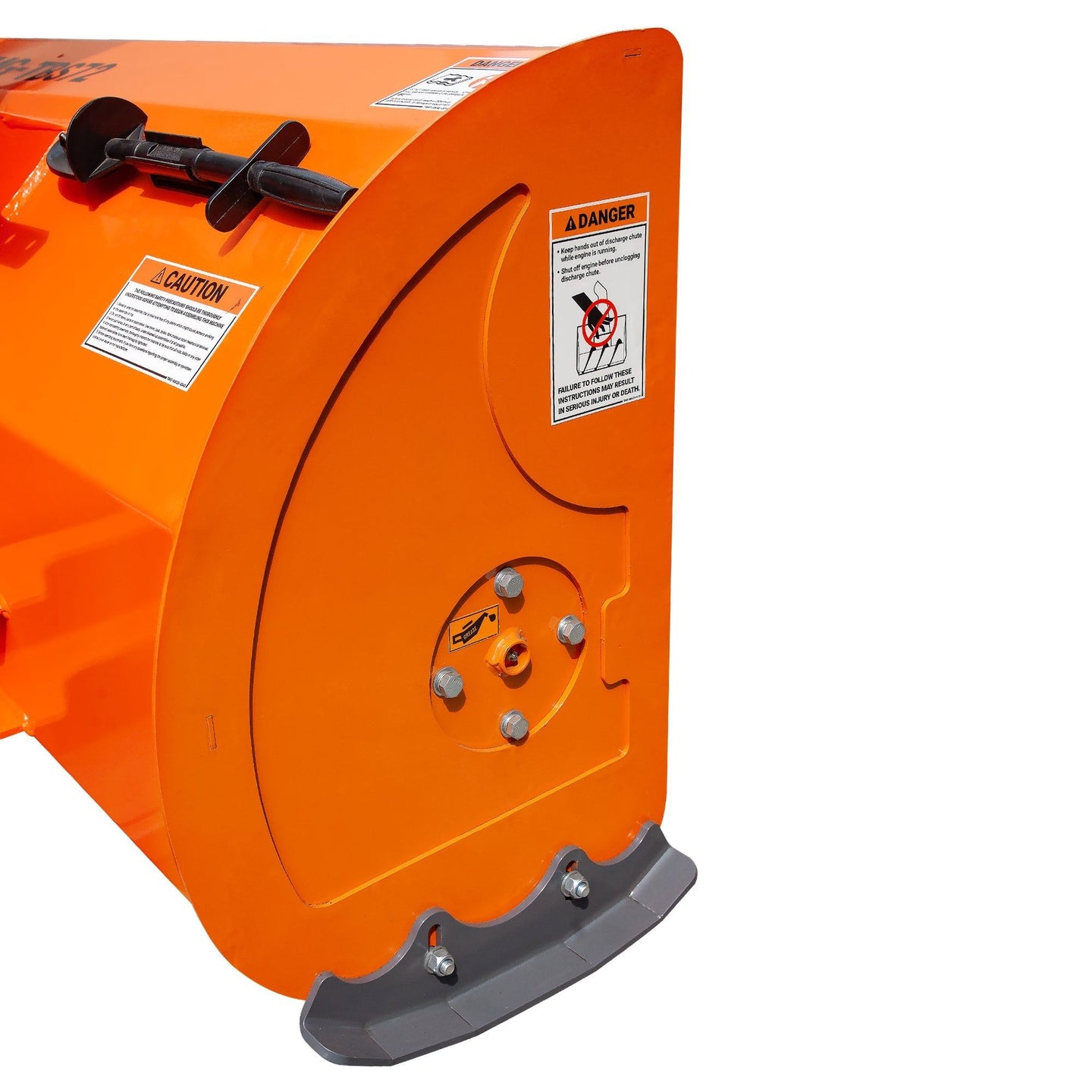

- Adjustable skid shoes: Yes
- Replaceable cutting edge: Yes
- Hitch system: Quick hitch system (ASABE)
- 3 point hitch: CAT 1 & CAT 2
SHIPPING INFO +
The order will ship FREE from one of our main warehouses in Canada. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 89” x 45” x 32” (L x W x H)
- Shipping weight: 1,040 lb
