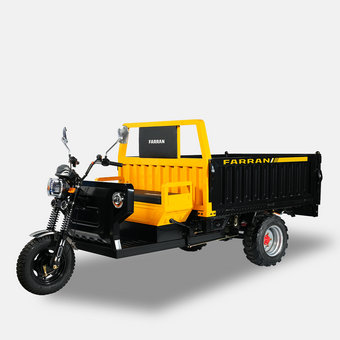

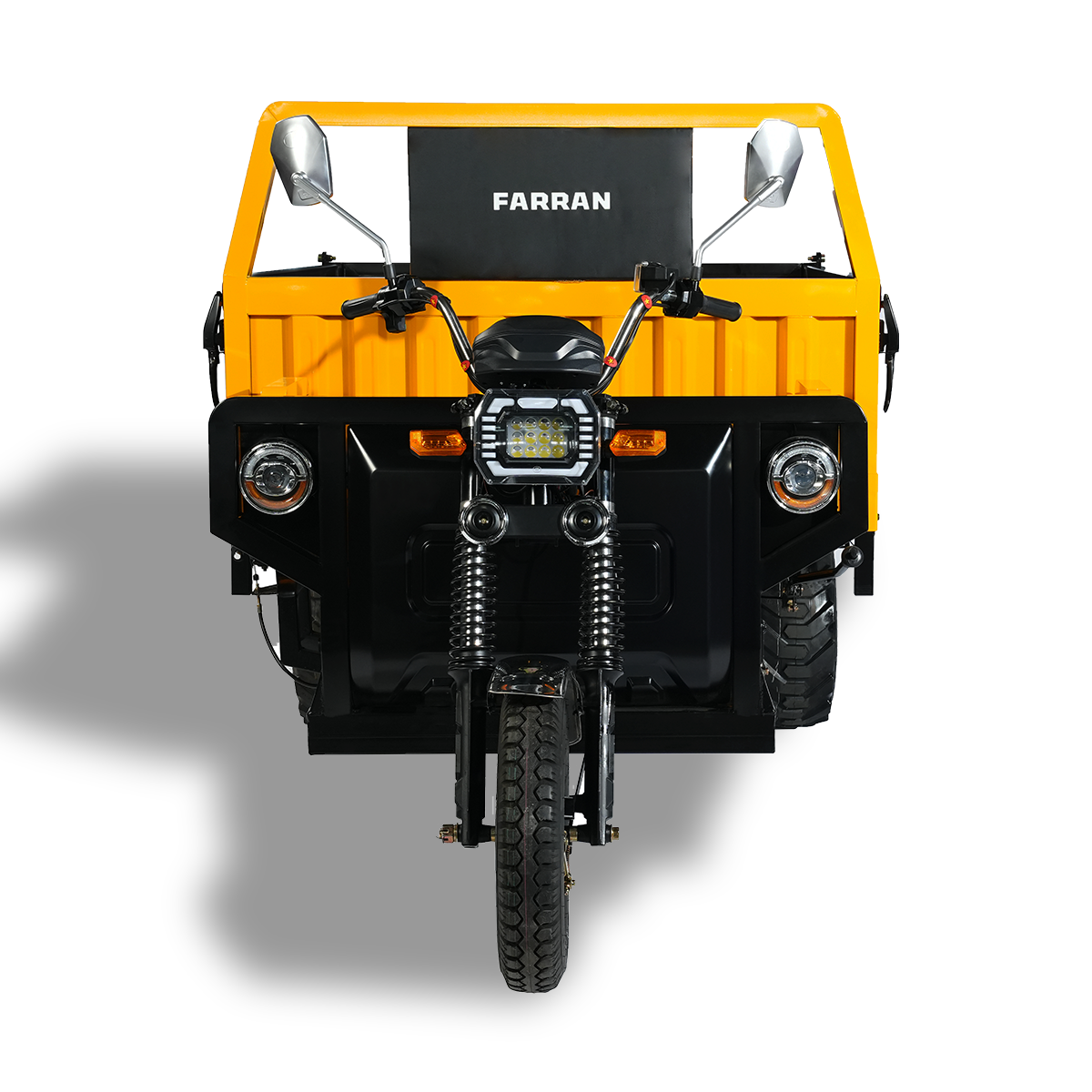

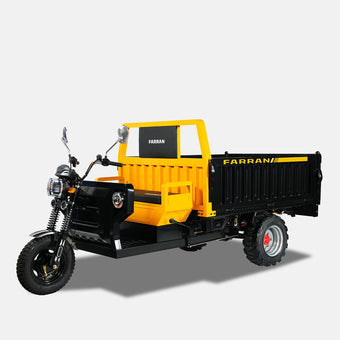

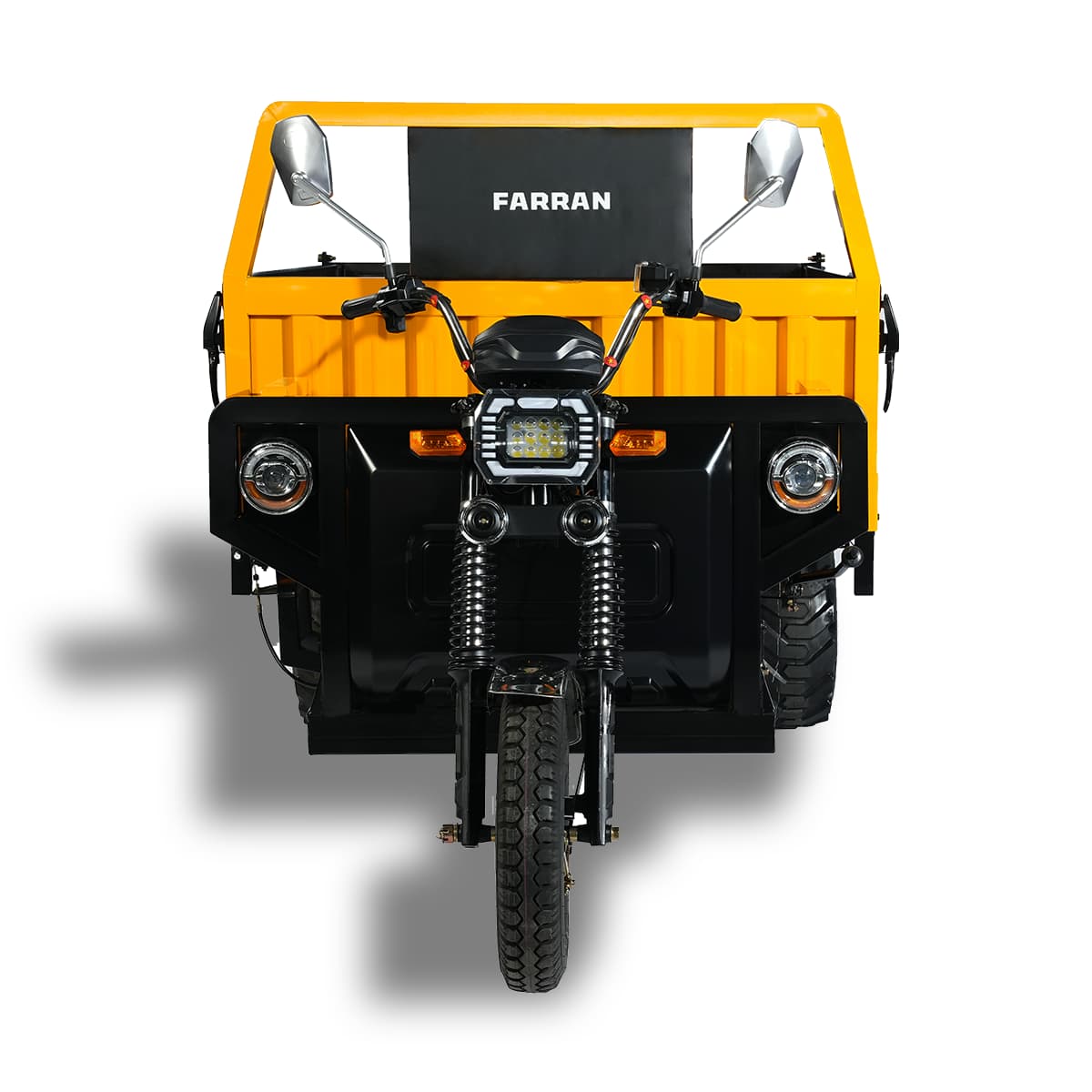

Farran Titan
Premium 3-Wheel Electric UTV with Suspension Comfort & Extreme Duty
$9,499.00

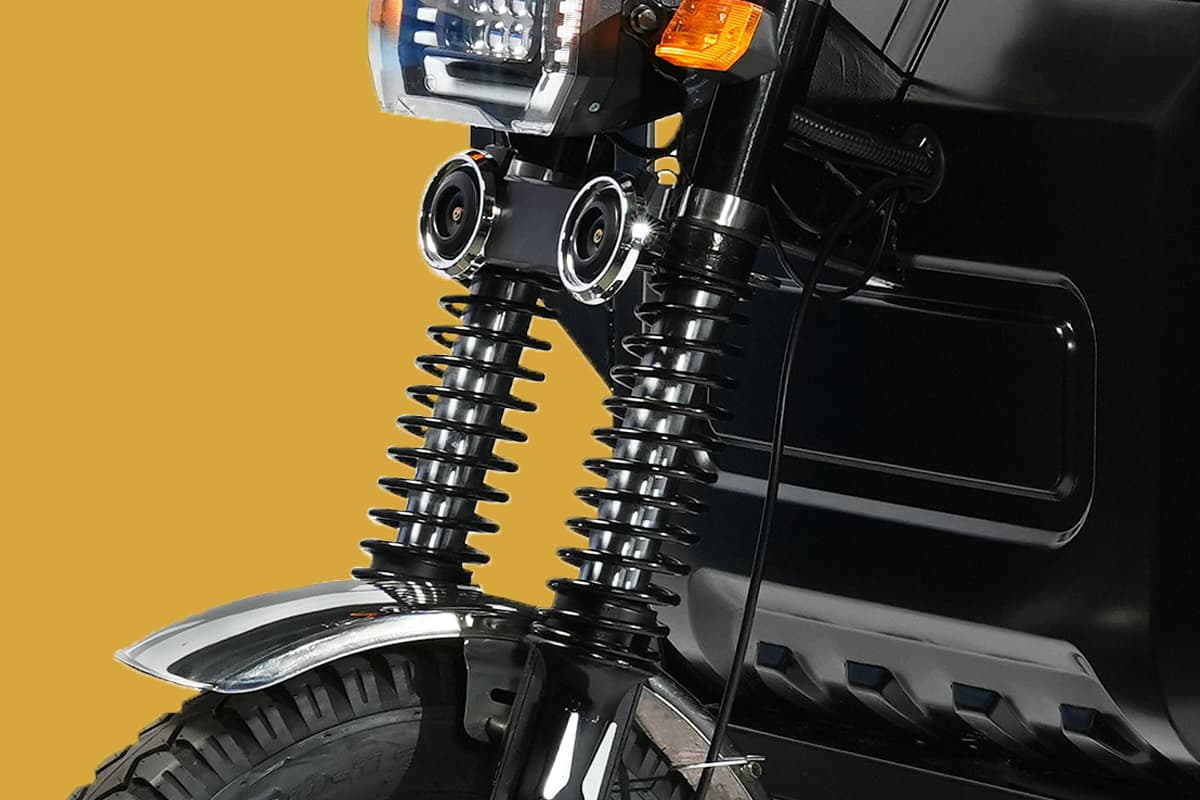

Front Shock Absorber
This advanced front suspension system combines a 29.9″ left and 28.7″ right external-spring shock absorber setup, designed to optimize ride comfort and structural balance. The dual 1.69″ diameter dampers provide strong impact absorption and load support, while the asymmetric lengths enable dynamic response on uneven terrain. The storm-grade lower bracket with locking plate adds rigidity under heavy loads, and the 8.6″ mounting plate spacing ensures solid chassis integration. A black-silver finish with gold dust cap completes this high-performance assembly — ideal for extended use in off-road, cargo-intensive, or agricultural environments.
Braking System
This vehicle is equipped with a 5.1″ drum brake on the front wheel and an extra-large 8.7″ drum brake on the rear, delivering exceptional braking force and stability under maximum load. The 8.7″ rear drum offers significantly improved thermal management and stopping efficiency, making it especially suitable for heavy-duty electric tricycles carrying substantial cargo or operating on steep, uneven ground. This advanced braking configuration ensures optimal safety, extended brake life, and consistent performance in demanding work conditions.
Motor Power

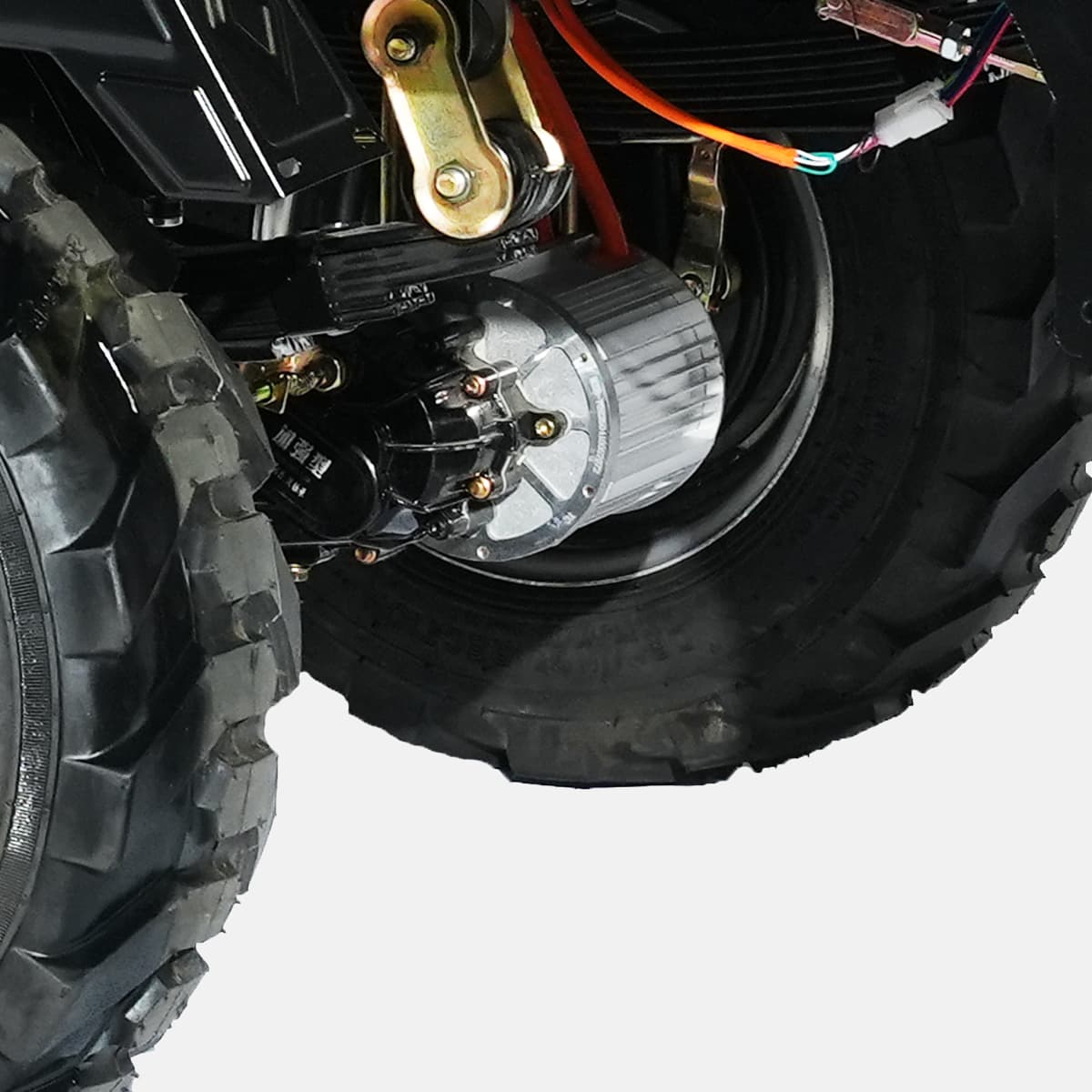

This vehicle features a 1500W motor powered by a 72V system, built with 70H high magnetic steel and paired with a large 24-tube controller. This high-output setup delivers strong torque, improved hill-climbing ability, and efficient thermal performance, making it ideal for heavy-duty transport, steep terrain, and long-hour utility operation.
Battery

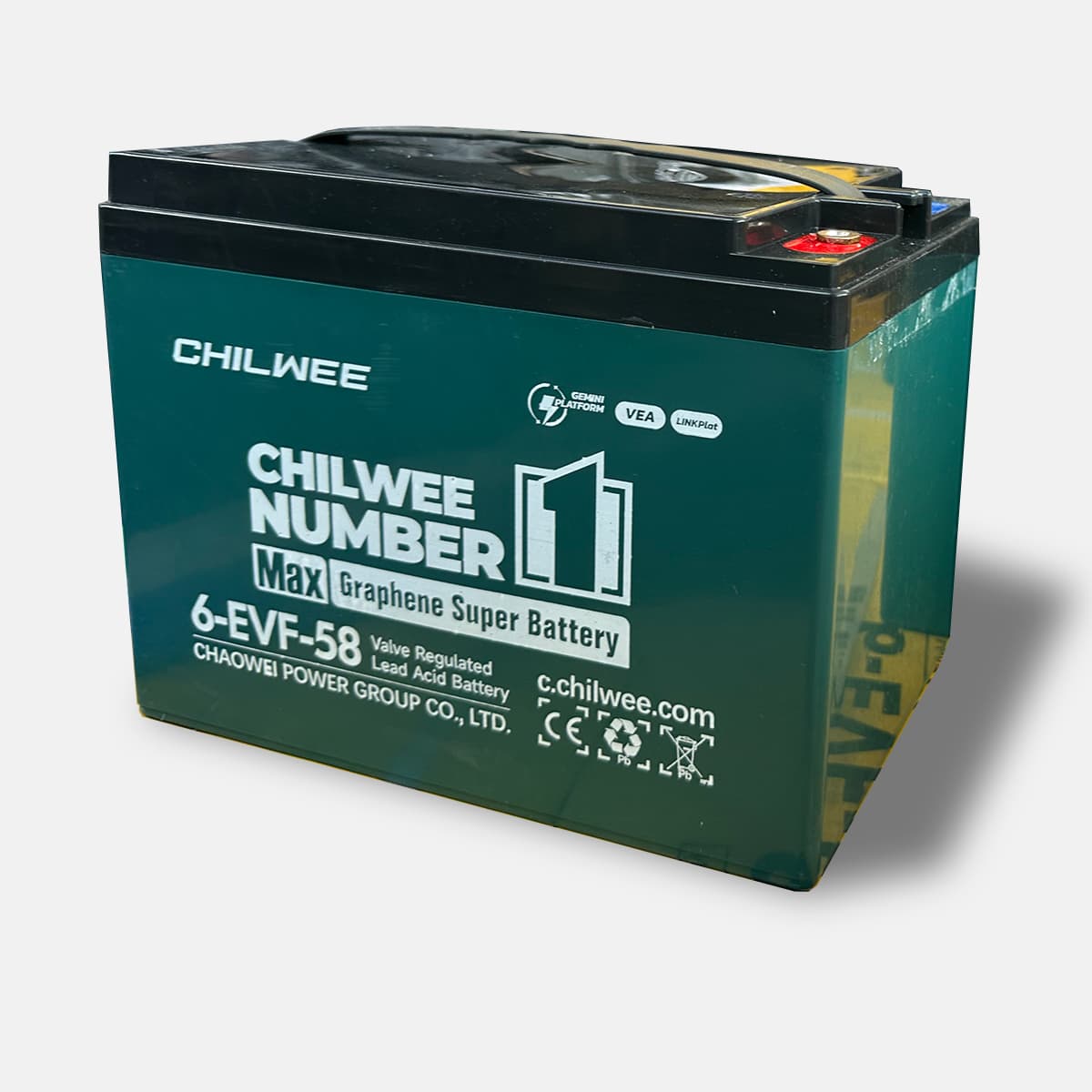

This vehicle is equipped with a 72V 58Ah lead-acid battery, delivering high-capacity power for extended-range and heavy-duty use. The 72V system provides strong torque and stable output, while the 58Ah capacity supports longer operation between charges. Ideal for utility vehicles handling steep terrain or heavy loads, this lead-acid battery offers reliable performance, proven durability, and low maintenance in demanding work environments.
Core Materials
Details the vehicle’s core structural components—central frame, side beams, cargo floor, and door panels—with material type and thickness for durability and load-bearing performance in tough work environments.

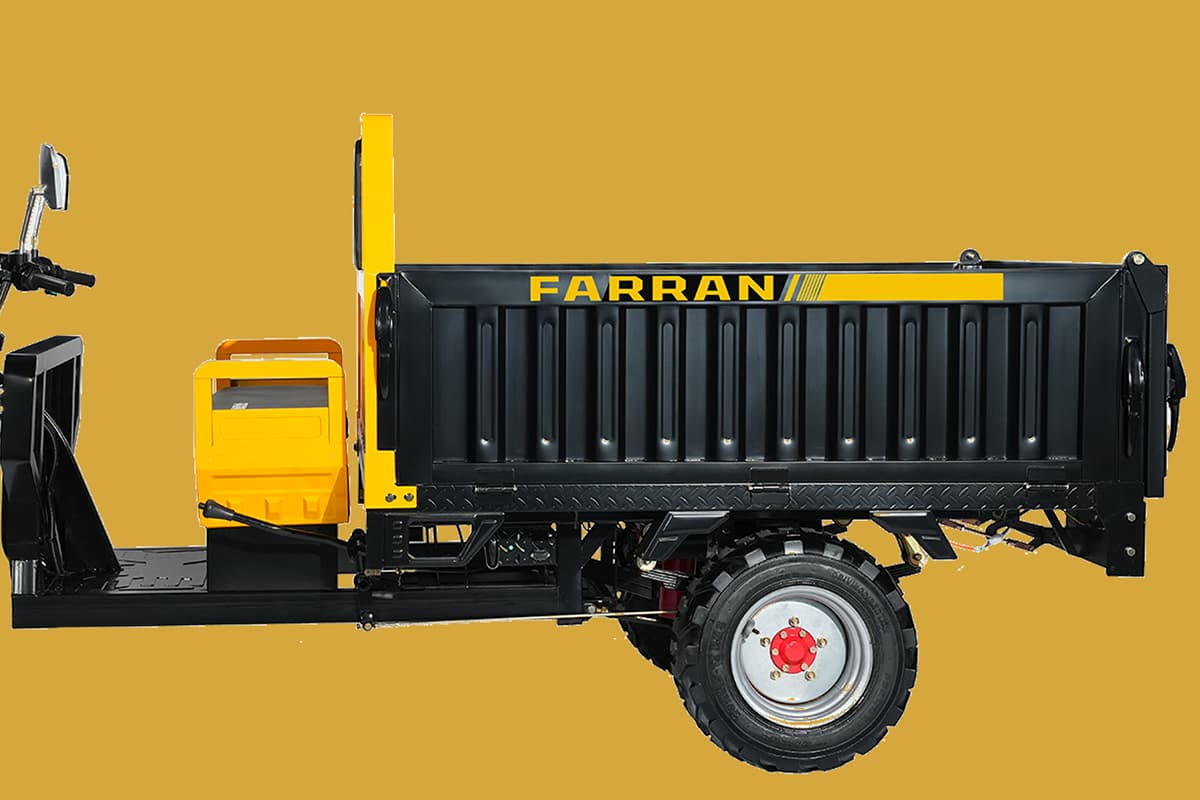

Main Frame Beam
This vehicle uses a Q195 low-carbon steel frame with a yield strength of 195 MPa, offering high ductility, good weldability, and reliable cold-forming performance. Compared to standard mild steels, Q195 provides better shock absorption and resistance to cracking or fatigue under load. Its strength-to-weight ratio makes it ideal for off-road, farm, and utility applications. This structural foundation supports the long-term reliability that defines Farran electric vehicles.
Side Frame Beam
The frame is constructed using reinforced steel tubing with high structural consistency. The side beams measure 2.0 × 2.8″ with a 0.08″ wall thickness, while the center beams are 2.0 × 2.0 × 0.08″. This combination provides a wider base for lateral strength and superior stability under dynamic load, making it especially suited for electric utility vehicles that demand both endurance and safety on uneven terrain.

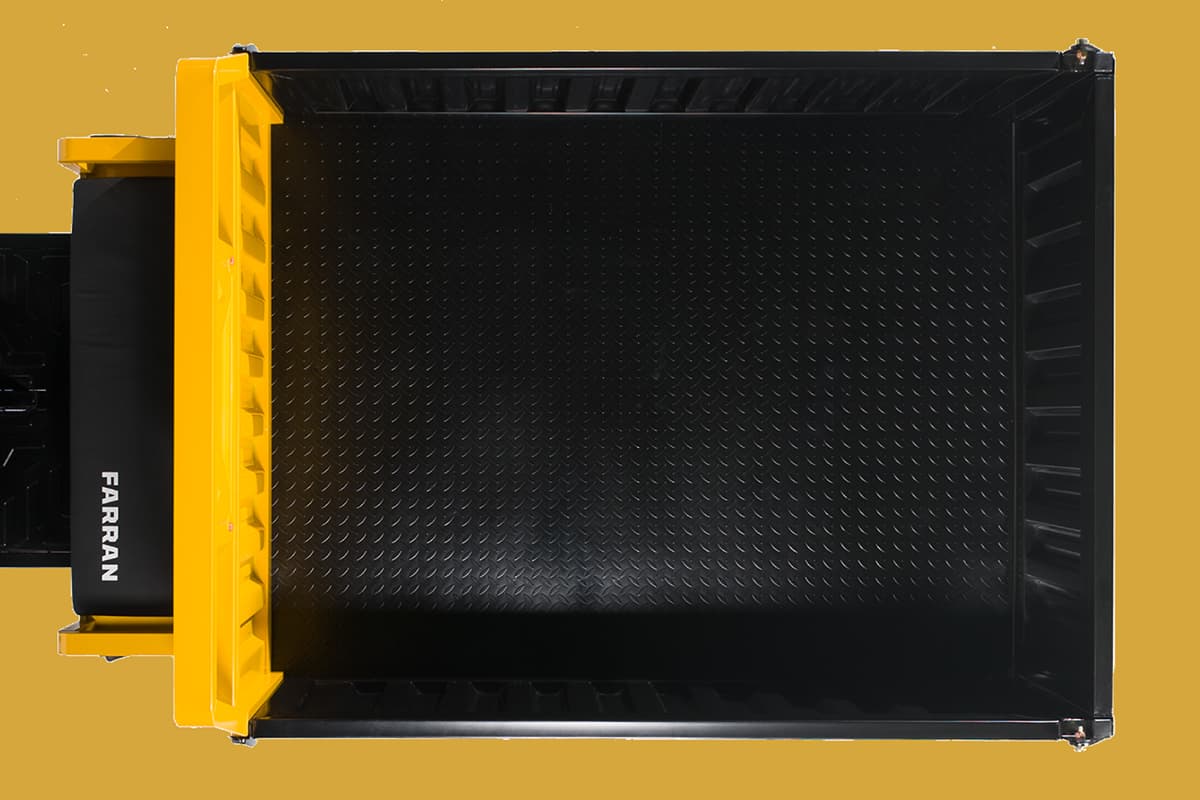

Cargo Floor Material
The cargo bed floor is reinforced with 0.059″ Q235 carbon steel, a structural-grade material with a yield strength of 235 MPa, known for its weldability and resistance to wear. This upgraded thickness improves durability, load support, and resistance to deformation under frequent impact from heavy or abrasive materials such as tools, stone, firewood, or farm equipment. Designed for long-term use in rugged environments, the Q235 base ensures reliable performance where structural strength and cost-efficiency are essential.
Door Core Material
The door panel core uses 0.035″ steel, offering a lightweight yet sufficiently strong structure for standard utility use. It provides basic resistance to dents and deformation under normal conditions, making it a practical and cost-effective choice for vehicles focused on affordability and everyday functionality.
Product Spec
Dimensions: 132.5″ × 58.5″ × 63.5″
Cargo Bed Size: 70.5″ × 51″
Motor Power: 1500W
Top Speed: 45km/hr
Range per Charge: 60-80km
Max Load Capacity: 1750lbs
Charging Time: 6–8 hours
Battery Voltage: 72V 58Ah
Climbing Ability: <20°
Vehicle Weight: 0.0 kg
Product Description

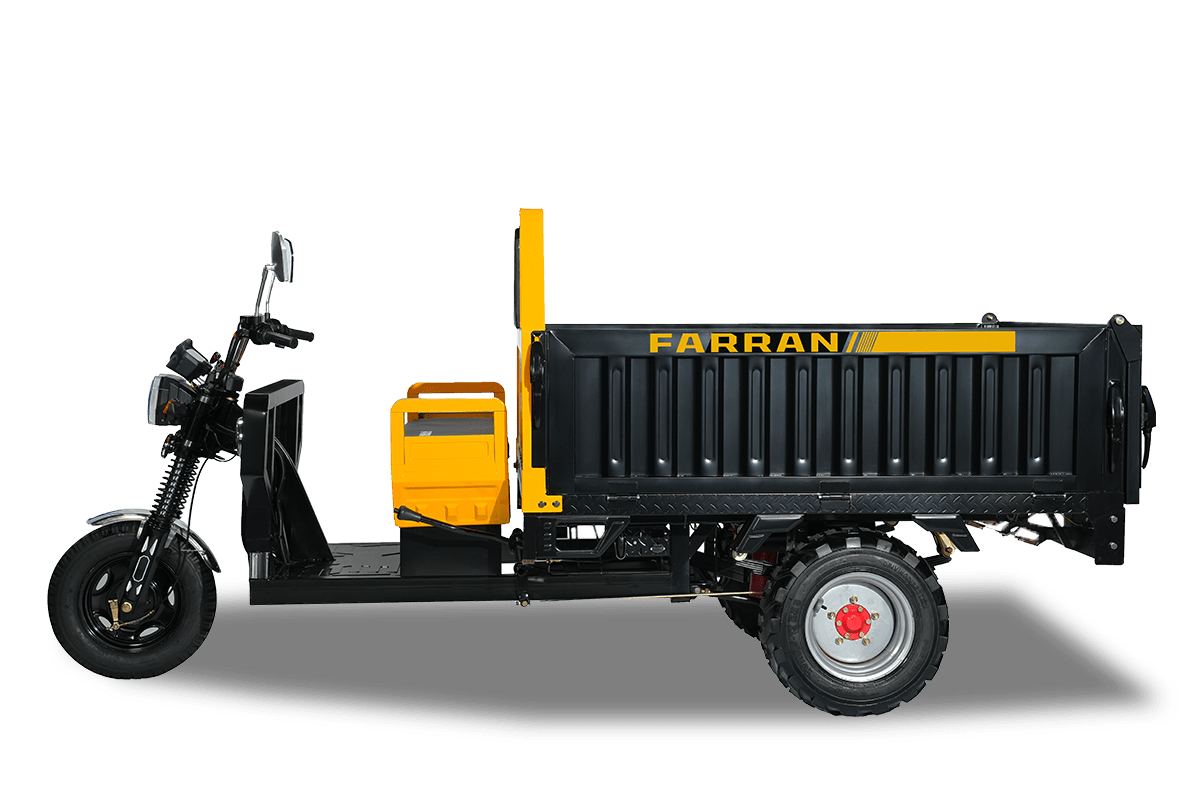

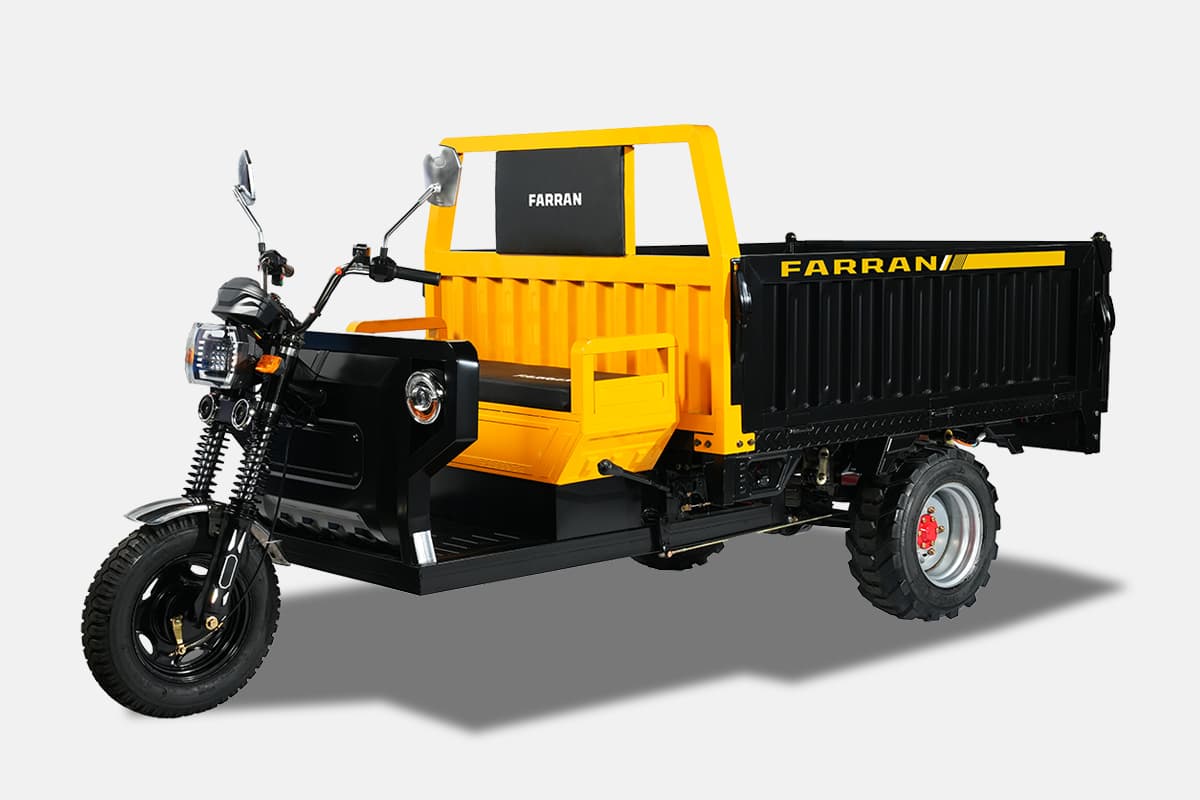

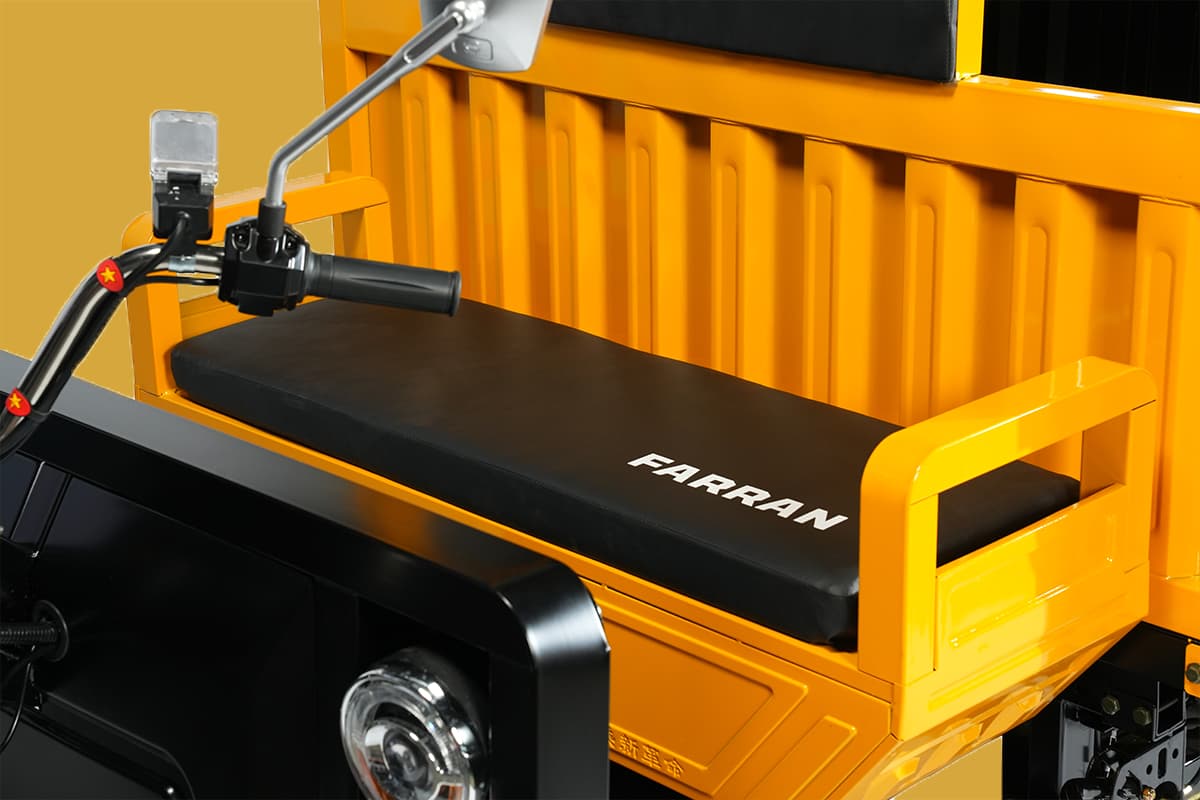

The Farran Titan is a heavy-duty electric utility tricycle equipped with a hydraulic dump bed and a spring-suspension seat for improved comfort during off-road operation. Designed for demanding agricultural and industrial tasks, it supports bulk material transport across uneven terrain and extended work hours. Ideal for farms, construction sites, and remote access jobs where load capacity and operator endurance matter.
Warranty
All Farran electric vehicles come with a 12-month limited warranty covering key components such as motor, battery, and controller. For warranty support, simply contact our team with proof of purchase and product details.
Service Point
We partner with local mechanics and service centers across Canada. If no official service point is near you, we offer remote diagnostics and guided support. Replacement parts can be shipped directly to your location. Check details
Shipping & Returns
We offer nationwide delivery across United States, with estimated shipping times shown at checkout. If you're not satisfied with your order, you may return unused vehicles within 14 days of delivery. Return shipping fees apply. Check details
