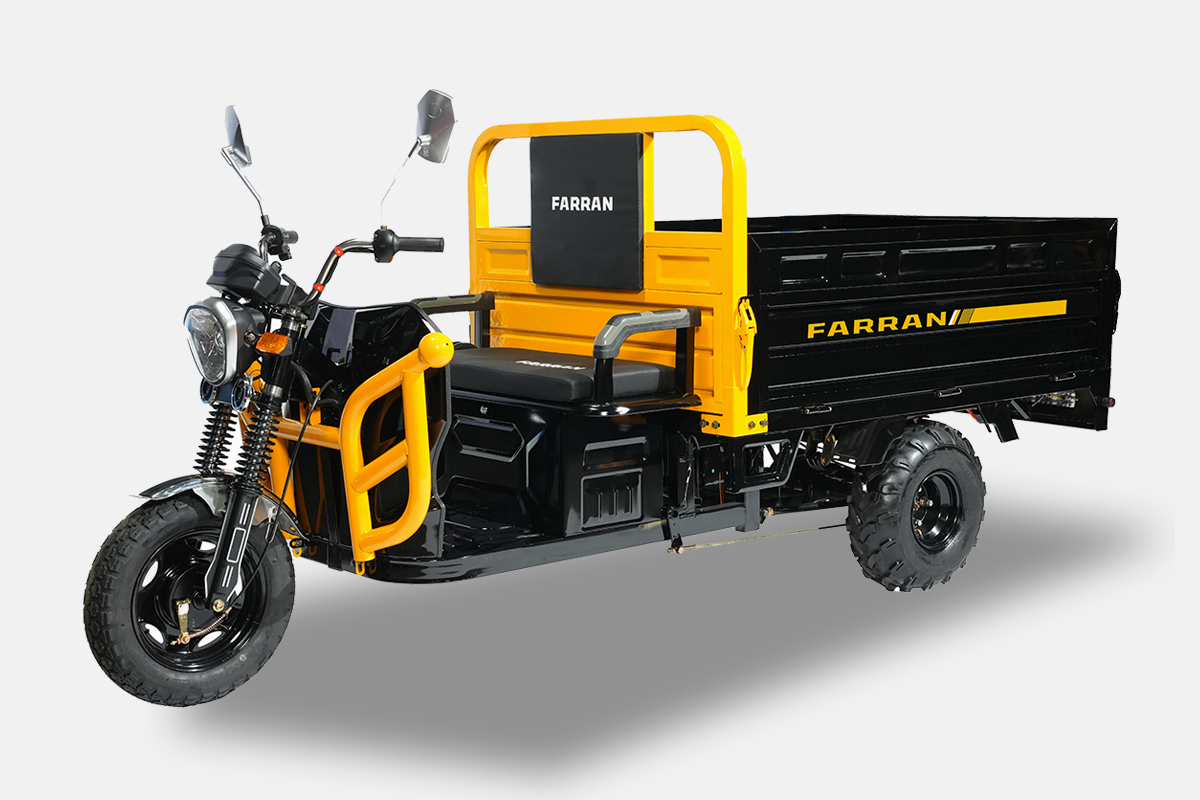

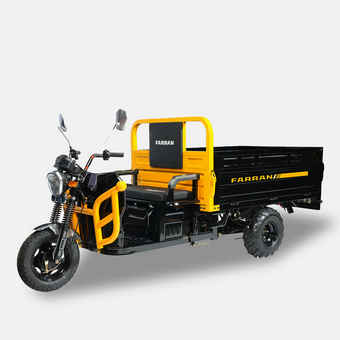

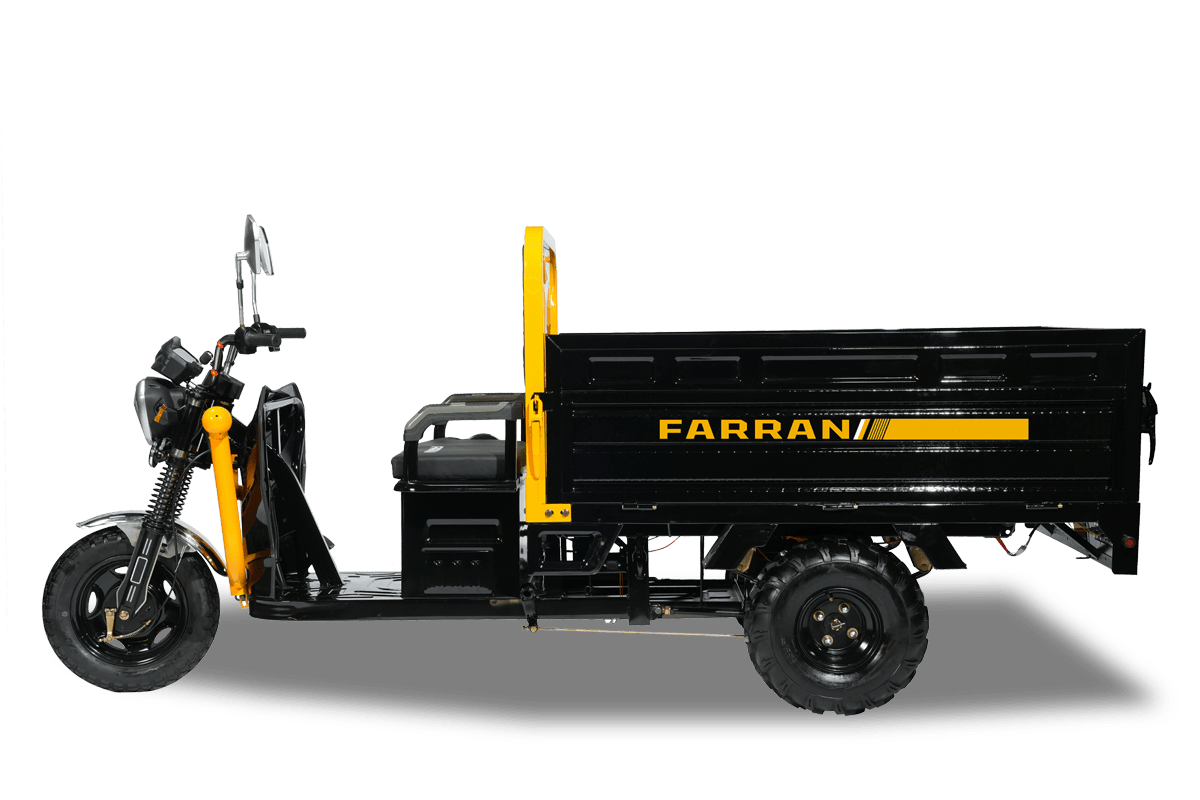

Farran Worker
3-Wheel Mid-Sized Electric UTV with Power and Payload
$6,499.00

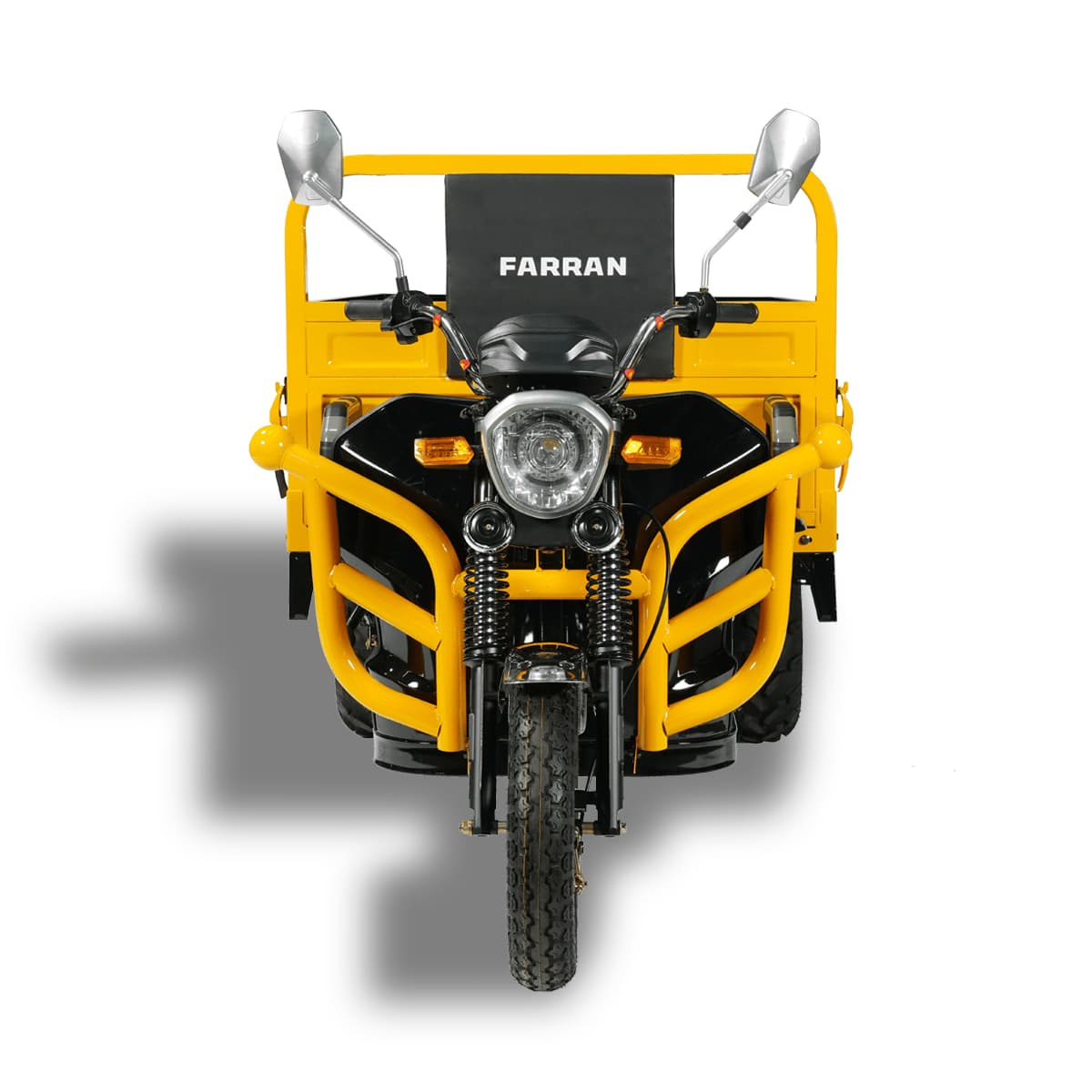

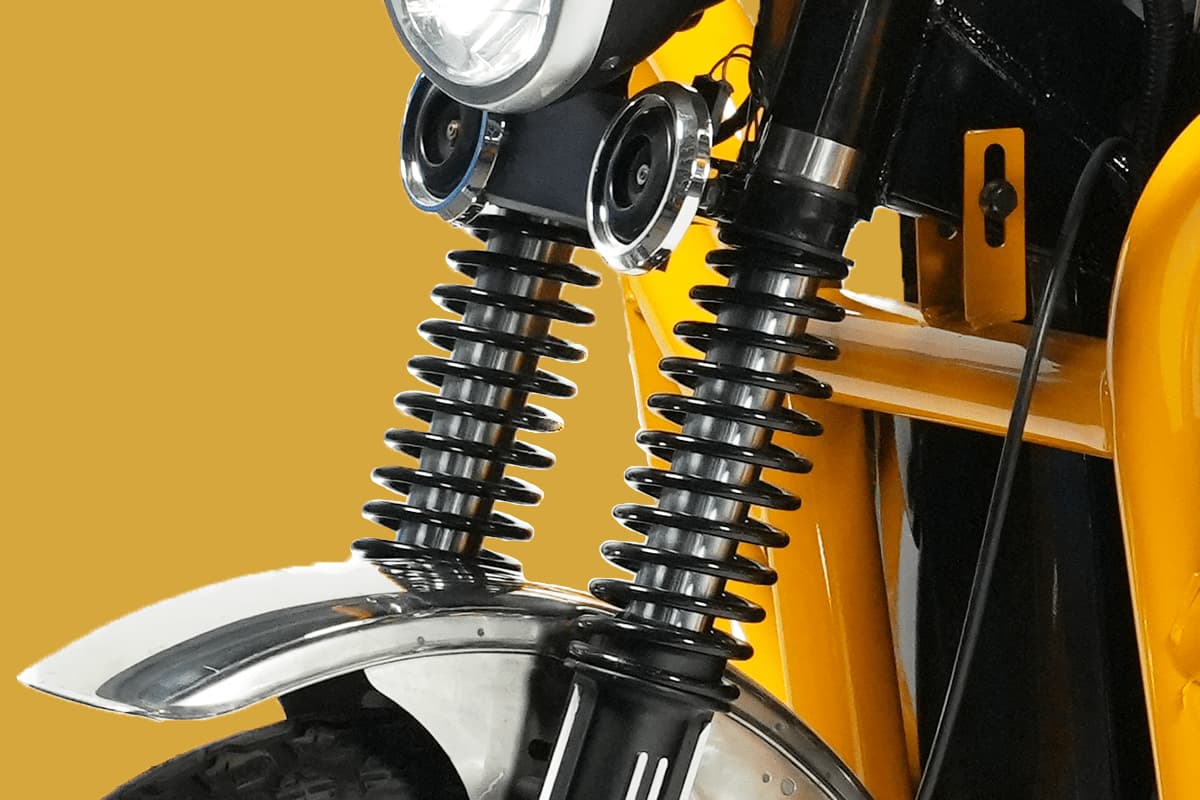

Front Shock Absorber
This vehicle is equipped with a reinforced 1.46″ front suspension system designed for off-road and utility use. The extended 28.3″ shocks provide long-travel damping, ideal for rough or uneven terrain. The right shock features an external spring for enhanced rebound performance, while both sides share a robust 0.59″ axle mount for balance and stability. Upper and lower mounting plates are precisely spaced at 7.8″ and coated for corrosion resistance. Together with a gold-colored dust cap, this setup enhances ride comfort, reduces frame stress, and ensures long-lasting suspension performance even under frequent heavy loads.
Braking System
This braking system features a 5.1″ drum brake on the front wheel and an oversized 6.3″ drum brake on the rear, offering enhanced stopping power and load-bearing braking performance. The larger rear drum provides increased friction surface and better heat dissipation, making it especially suitable for vehicles carrying heavier rear loads or operating on inclined terrain. This configuration ensures strong, consistent braking control in rugged and utility-focused environments.

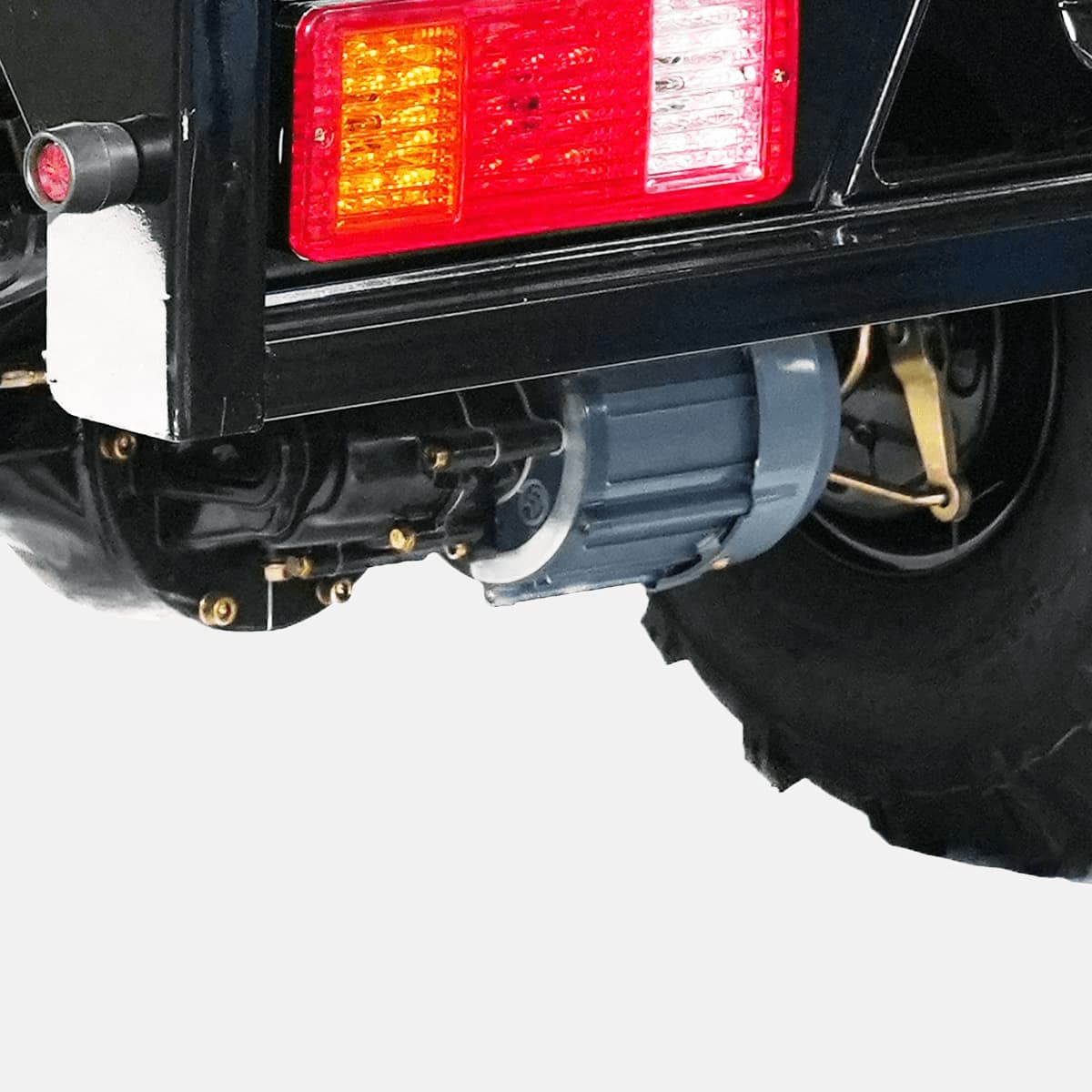

Motor Power
This vehicle features a 1000W motor, compatible with 60V/72V systems and controlled by an 18-tube controller for stable power delivery. The setup provides enhanced torque, improved load capacity, and better thermal efficiency, making it suitable for hilly terrain, frequent stops and starts, cargo transport, and extended operation in demanding utility environments.
Battery
This vehicle is equipped with a 60V 58Ah lead-acid battery, delivering stable and reliable power for daily operation. The high capacity extends driving range and supports longer working hours between charges, making it ideal for utility tasks such as cargo transport or off-road use. The lead-acid design ensures proven durability, consistent output, and low maintenance requirements — a practical solution for demanding environments.
Core Materials
Details the vehicle’s core structural components—central frame, side beams, cargo floor, and door panels—with material type and thickness for durability and load-bearing performance in tough work environments.

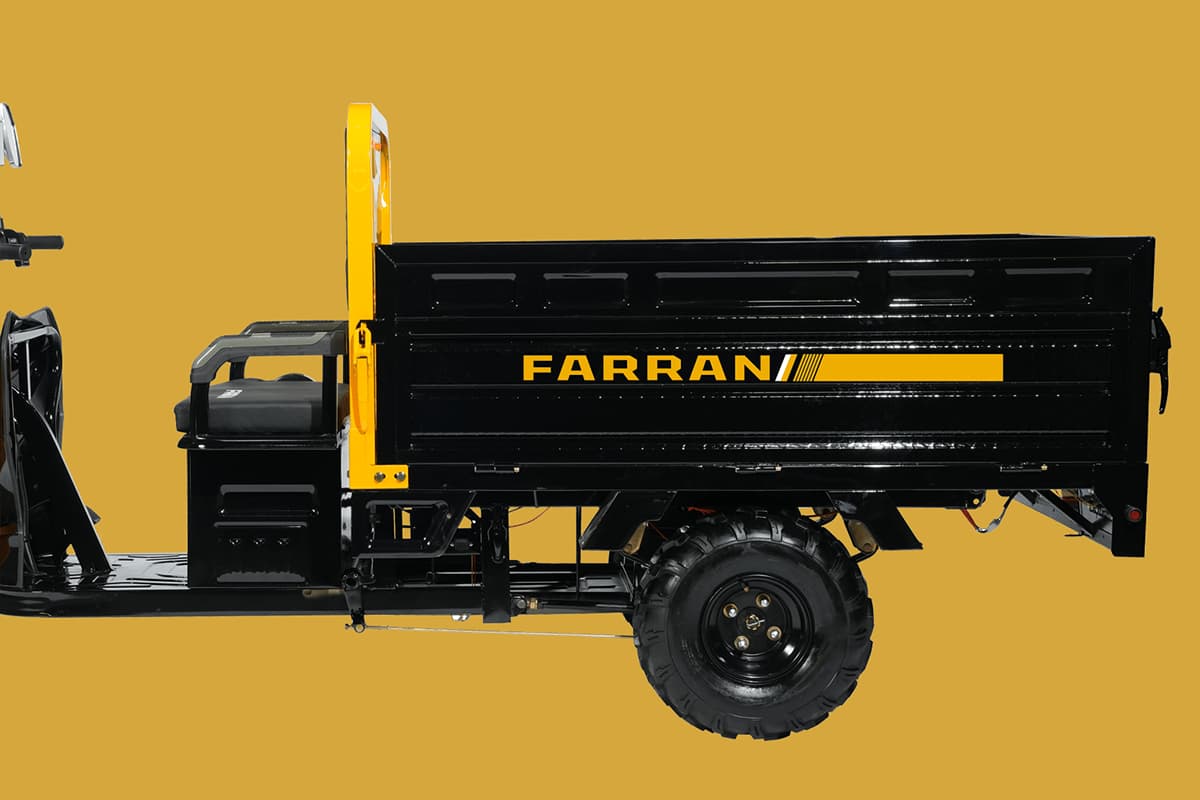

Main Frame Beam
This vehicle uses a Q195 low-carbon steel frame with a yield strength of 195 MPa, offering high ductility, good weldability, and reliable cold-forming performance. Compared to standard mild steels, Q195 provides better shock absorption and resistance to cracking or fatigue under load. Its strength-to-weight ratio makes it ideal for off-road, farm, and utility applications. This structural foundation supports the long-term reliability that defines Farran electric vehicles.
Side Frame Beam
The vehicle frame is constructed using reinforced steel tubing with different dimensions for structural optimization. The side beams measure 1.6×2.4″ with a 0.06″ wall thickness, while the center beams are 2.0×2.0″ with a 0.08″ wall thickness. This frame layout provides excellent load-bearing capacity, torsional rigidity, and impact resistance, ensuring the vehicle remains strong and stable even under heavy-duty use.

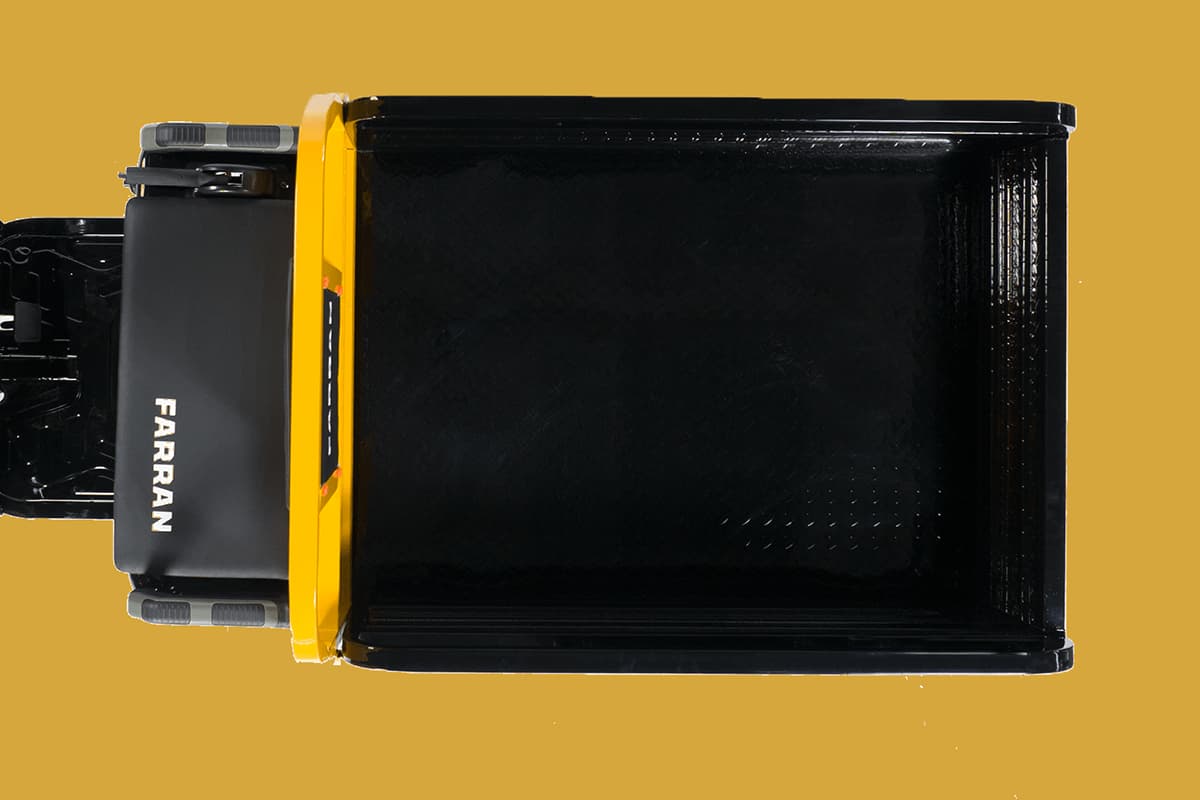

Cargo Floor Material
The cargo bed floor is made from 0.043″ Q235 carbon steel, providing a stable and durable base for daily loading. This thickness offers a good balance between strength and weight, making it suitable for carrying tools, supplies, and heavy materials in demanding environments.
Door Core Material
The door panel core is built with 0.039″ steel, providing a solid and stable structure for everyday use. This thickness offers reliable resistance to bending and impact during loading, while keeping overall vehicle weight low. It delivers a balanced combination of strength, durability, and manufacturing efficiency — well-suited for utility vehicles used in farm and off-road environments.
Product Spec
Dimensions: 122″ × 50.5″ × 53″
Cargo Bed Size: 63″ × 39.5″
Motor Power: 1000W
Top Speed: 30km/hr
Range per Charge: 50-60km
Max Load Capacity: 1100lbs
Charging Time: 6–8 hours
Battery Voltage: 60V 58Ah
Climbing Ability: <20°
Vehicle Weight: 600.0 kg
Product Description
The Farran Worker is a utility electric tricycle designed for transporting tools, feed, and supplies on farms and ranches. With a reinforced cargo bed and electric drivetrain, it serves as a reliable alternative to gas-powered UTVs for short-distance, off-road tasks in agricultural environments.
Warranty
All Farran electric vehicles come with a 12-month limited warranty covering key components such as motor, battery, and controller. For warranty support, simply contact our team with proof of purchase and product details.
Service Point
We partner with local mechanics and service centers across Canada. If no official service point is near you, we offer remote diagnostics and guided support. Replacement parts can be shipped directly to your location. Check details
Shipping & Returns
We offer nationwide delivery across United States, with estimated shipping times shown at checkout. If you're not satisfied with your order, you may return unused vehicles within 14 days of delivery. Return shipping fees apply. Check details
FAQs
Collapsible row
Collapsible row
Collapsible row
Collapsible row
Collapsible row
Collapsible row
Collapsible row

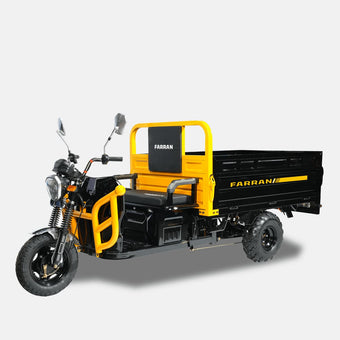

Farran Worker | 3-Wheel Mid-Sized Electric UTV with Power and Payload
