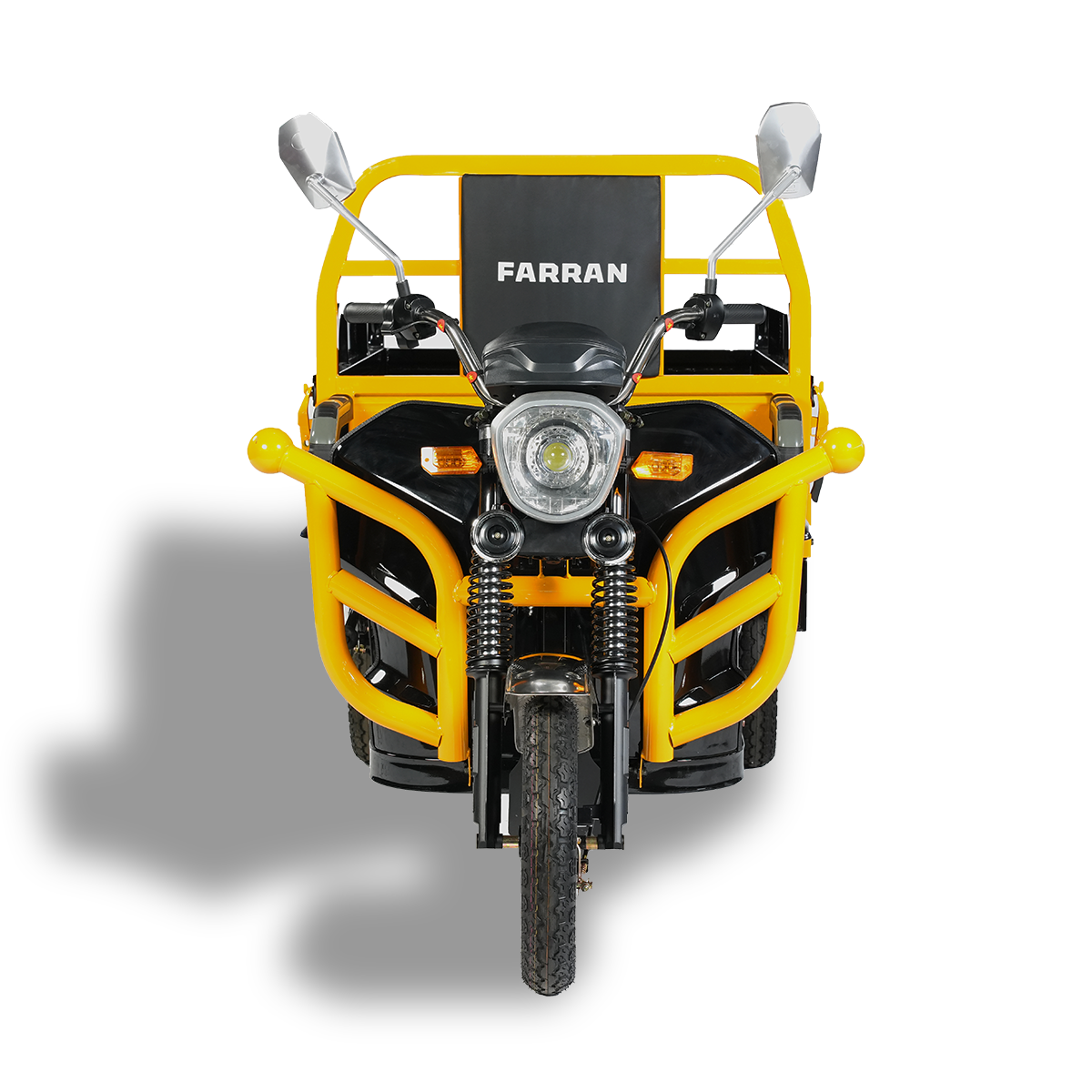

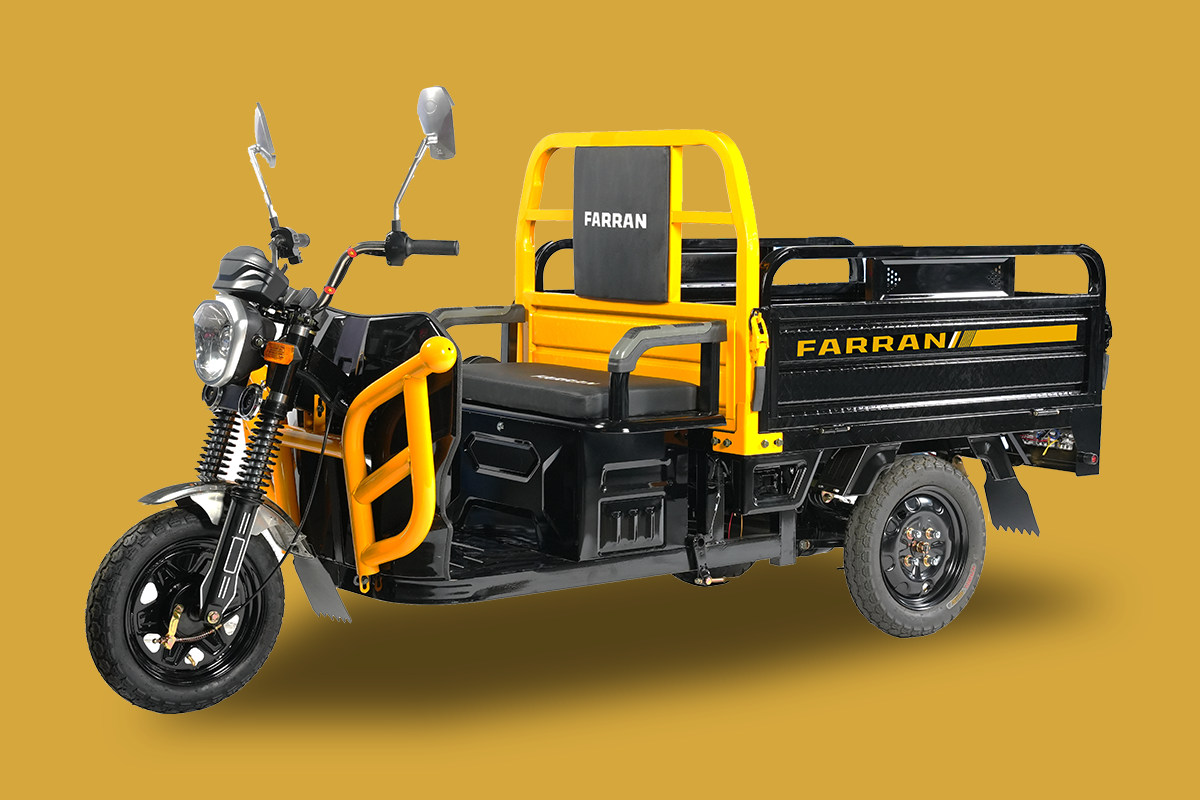

Farran Mate
3-Wheel Compact Electric UTV for Everyday Tasks
$5,299.00
Front Shock Absorber
The front suspension system features a paired 1.2โณ shock absorber setup with asymmetric axle holes (0.6โณ left / 0.5โณ right), external spring on the right side, and corrosion-resistant zinc-coated caps. Both upper and lower mounting brackets are precision-aligned at 6.8โณ spacing, with strong iron construction and black coated finish for long-term durability. A gold dust cap completes the assembly, providing both aesthetic detail and functional protection.
Braking System
The vehicle is equipped with 5.1โณ drum brakes on both the front and rear wheels, providing reliable and low-maintenance braking performance. Drum brakes are well-suited for off-road and utility vehicles due to their enclosed structure, which offers strong braking power while resisting dust, water, and debris. This configuration ensures consistent stopping ability even under heavy loads or in challenging outdoor conditions.
Motor Power
This vehicle features a 650W motor powered by a 60V system and managed by a 15-tube controller for balanced power delivery. The configuration offers reliable torque and energy efficiency, making it well-suited for light-duty transport, farm paths, and daily utility use on moderate terrain.
Battery
This vehicle is equipped with a 60V 32Ah lead-acid battery, providing dependable power for short- to mid-range utility use. Designed for stable output and low maintenance, this battery is well-suited for daily tasks such as light cargo transport and short-distance travel. Its compact capacity offers a balance between affordability and functional performance in routine operating conditions.
Core Materials
Details the vehicleโs core structural componentsโcentral frame, side beams, cargo floor, and door panelsโwith material type and thickness for durability and load-bearing performance in tough work environments.
Main Frame Beam
This vehicle uses a Q195 low-carbon steel frame with a yield strength of 195 MPa, offering high ductility, good weldability, and reliable cold-forming performance. Compared to standard mild steels, Q195 provides better shock absorption and resistance to cracking or fatigue under load. Its strength-to-weight ratio makes it ideal for off-road, farm, and utility applications. This structural foundation supports the long-term reliability that defines Farran electric vehicles.
Side Frame Beam
The vehicle frame is constructed using reinforced steel tubing with different dimensions for structural optimization. The side beams measure 1.6ร2.4โณ with a 0.06โณ wall thickness, while the center beams are 2.0ร2.0โณ with a 0.08โณ wall thickness. This frame layout provides excellent load-bearing capacity, torsional rigidity, and impact resistance โ ensuring the vehicle remains strong and stable even under heavy-duty use.
Cargo Floor Material
The cargo bed floor is made from 0.043โณ Q235 carbon steel, a structural-grade material with a yield strength of 235 MPa. Known for its weldability, wear resistance, and ability to withstand heavy loads and daily impact, Q235 provides a durable and cost-effective foundation for utility vehicles operating in rugged conditions.
Door Core Material
The door panel core is built with 0.039โณ steel, providing a solid and stable structure for everyday use. This thickness ensures reliable resistance to bending and impact during loading operations while keeping overall vehicle weight low. It offers a balanced combination of strength, durability, and manufacturing efficiency โ ideal for utility vehicles operating in farm or off-road conditions.
Product Spec
Dimensions: 109.5โณ x 44.5โณ x 50.5โณ
Cargo Bed Size: 51โณ x 37.5โณ
Motor Power: 650W
Top Speed: 30km/hr
Range per Charge: 50-60km
Max Load Capacity: 1100lbs
Charging Time: 6โ8 hours
Battery Voltage: 60V 32Ah
Climbing Ability: <20ยฐ
Vehicle Weight: 174.0 kg
Product Description
The Farran Mate is a compact and efficient electric utility vehicle, ideal for light-duty tasks in tight spaces. Designed for small-scale farming, gardening, and property maintenance, it offers quiet, emission-free operation and easy maneuverability. Combining functionality with sustainability, the Mate is a practical solution for daily chores.
Warranty
All Farran electric vehicles come with a 12-month limited warranty covering key components such as motor, battery, and controller. For warranty support, simply contact our team with proof of purchase and product details.
Service Point
We partner with local mechanics and service centers across Canada. If no official service point is near you, we offer remote diagnostics and guided support. Replacement parts can be shipped directly to your location. Check details
Shipping & Returns
We offer nationwide delivery across United States, with estimated shipping times shown at checkout. If you're not satisfied with your order, you may return unused vehicles within 14 days of delivery. Return shipping fees apply. Check details
